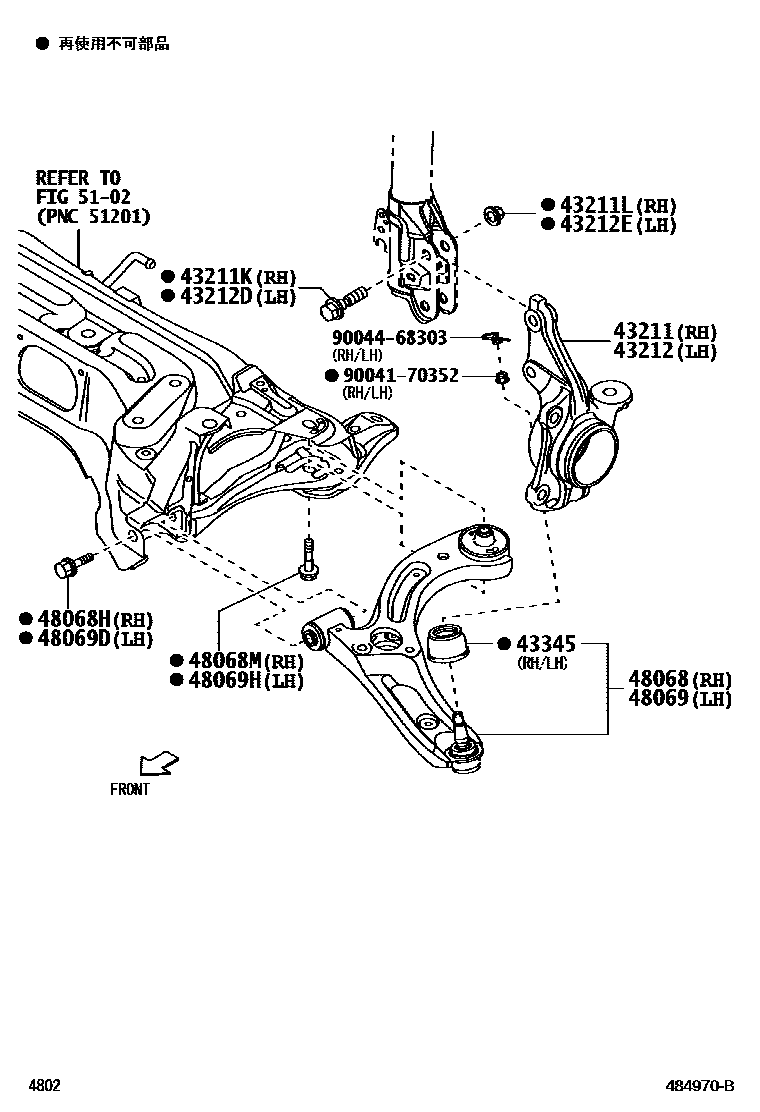

Toyota COPEN — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-B2120iLA400¥10,800201910

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01652iLA400¥290201910

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70393iLA400¥190201910

43212KNUCKLE, STEERING, LH

main43212-B2120iLA400¥10,800201910

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01652iLA400¥290201910

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70393iLA400¥190201910

43345COVER, LOWER BALL JOINT DUST

main43345-B2011iLA400¥800201910

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B2180iLA400¥8,500201910

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-20192iLA400¥430201910

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05475iLA400¥430201910

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B2210iLA400¥8,500201910

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-20192iLA400¥430201910

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05475iLA400¥430201910

5102

9004170352

main90041-70352¥120

9004468303

main90044-68303¥120

16 parts on this diagram · 1 diagram in section
