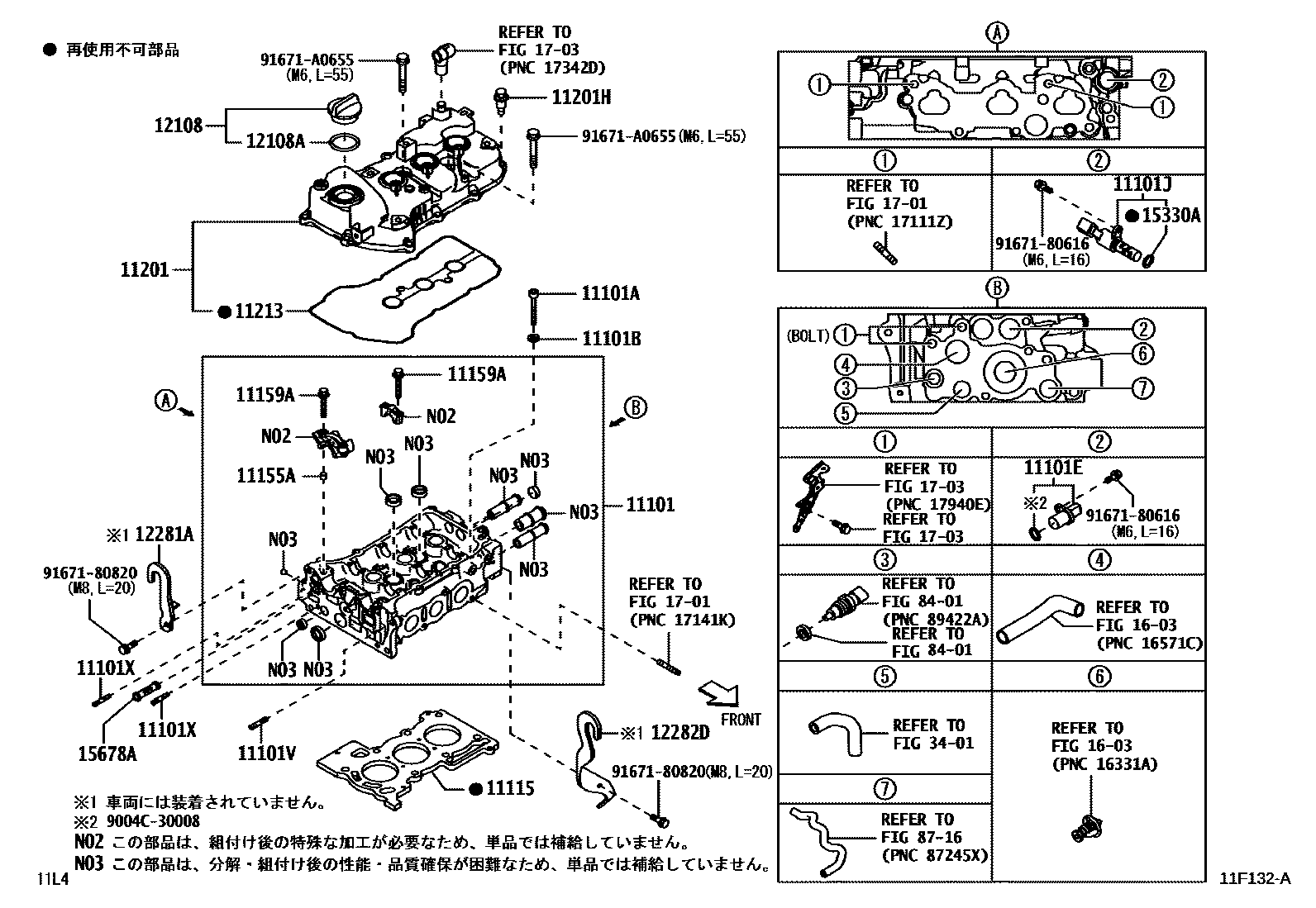

Toyota COPEN — CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-B2123iKFVET..LA400¥65,000201910

11101ABOLT(FOR CYLINDER HEAD SET)

main90041-09258iKFVET..LA400¥370201910

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90042-01637iKFVET..LA400¥110201910

11101ESENSOR, CAM POSITION

main19311-B2011iKFVET..LA400¥3,710201910

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-B2020iKFVET..LA400¥6,800201910

11101VBOLT(FOR CYLINDER HEAD SET SUB)

main92132-81040iKFVET..LA400¥120201910

11101XBOLT(FOR CYLINDER HEAD SET SUB)

main92122-80630iKFVET..LA400¥70201910-202011

11115GASKET, CYLINDER HEAD

main11115-B2024iKFVET..LA400¥3,820201910

11155APIN, RING W/HEAD

main90042-53010iKFVET..LA400¥170201910

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90041-19911iKFVET..LA400¥170201910

11201COVER SUB-ASSY, CYLINDER HEAD

main11210-B2024iKFVET..LA400¥15,700201910

11201HBOLT(FOR CYLINDER HEAD COVER)

main90041-09271iKFVET..LA400¥140201910

11213GASKET, CYLINDER HEAD COVER

main11213-B2011iKFVET..LA400¥1,490201910

12108CAP SUB-ASSY, OIL FILLER

main12180-97201iKFVET..LA400¥890201910

12108AGASKET(FOR OIL FILLER CAP)

main12195-87206iKFVET..LA400¥170201910

12281AHANGER, ENGINE, NO.1

main12281-B2010iKFVET..LA400¥1,240201910

12282DHANGER, ENGINE, NO.2

main12282-B2060iKFVET..LA400¥1,900201910-202312

sub12282-B2120¥1,720

main12282-B2120iKFVET..LA400¥1,720202312

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90043-01262iKFVET..LA400¥0201910

15678AFILTER, OIL CONTROL VALVE

main15678-B2020iKFVET..LA400¥510201910

1603

1701

1703

3401

8401

8716

9004C30008

main9004C-30008¥140

9167180616

main91671-80616¥60

9167180820

main91671-80820¥80

91671A0655

main91671-A0655¥200

29 parts on this diagram · 1 diagram in section
