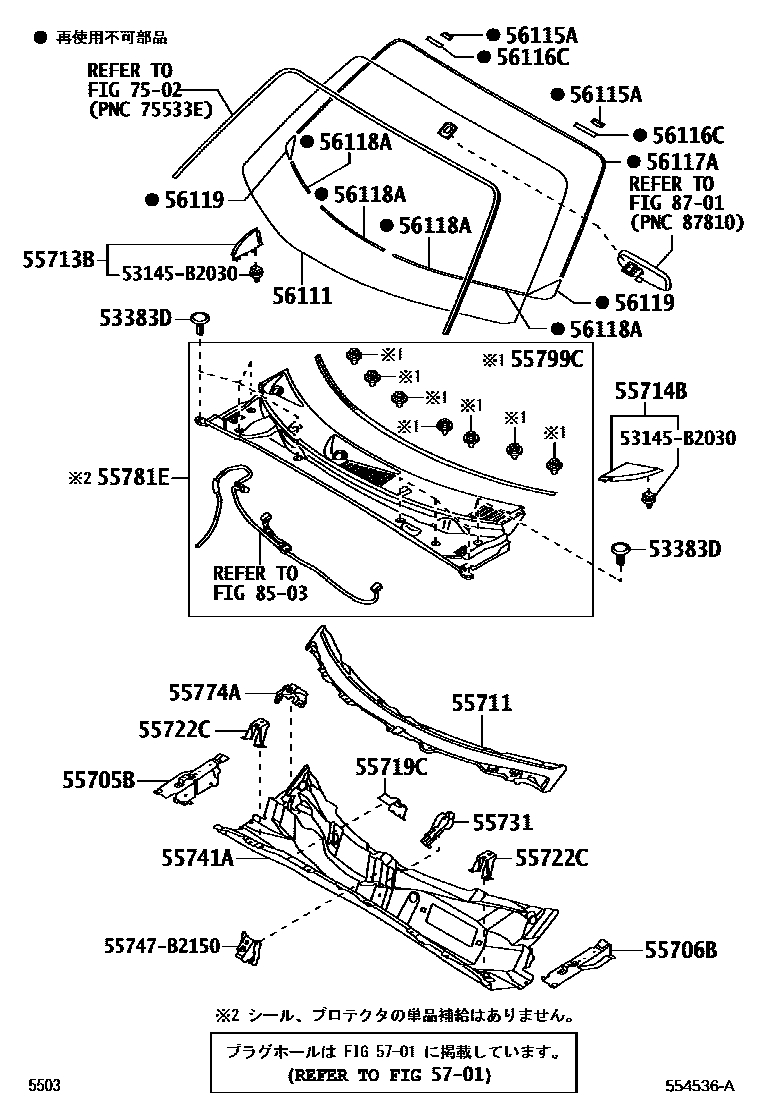

Toyota COPEN — COWL PANEL & WINDSHIELD GLASS

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main55799-B2040iLA400¥120201910

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-B2020iLA400¥2,730201910

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-B2150iLA400¥2,730201910

55711PANEL, COWL TOP, OUTER

main55711-B2241iLA400¥5,100201910

55713BCOVER, COWL SIDE PANEL HOLE, RH

main53445-B2220iLA400¥930201910

55714BCOVER, COWL SIDE PANEL HOLE, LH

main53446-B2220iLA400¥930201910

55719CBRACKET, WINDSHIELD WIPER MOTOR

main55719-B2160iLA400¥600201910

55722CBRACE, COWL TOP TO COWL, INNER

main55721-B2050iLA400¥620201910

55731BRACKET, COWL BODY MOUNTING, UPPER RH

main55731-B2030iLA400¥730201910

55741APANEL, COWL TOP, INNER

main55741-B2251iLA400¥19,200201910

55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH

main55774-B2130iLA400¥730201910

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-B2070iLA400¥18,600201910

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90044-67474iLA400¥80201910

56111GLASS, WINDSHIELD

main56101-B2092iLA400¥52,400201910

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402iLA400¥210201910

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401iLA400¥210201910

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B2200iLA400¥710201910

�������Q�R�R�O

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-B2130iLA400¥190201910

�������P�W�O

56119SEAL, WINDSHIELD GLASS

main56119-B2010iLA400¥120201910

5701

7502

8503

8701

53145B2030BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-B2030¥120

55747B2150STAY, COWL TOP, INNER

main55747-B2150¥840

25 parts on this diagram · 1 diagram in section
