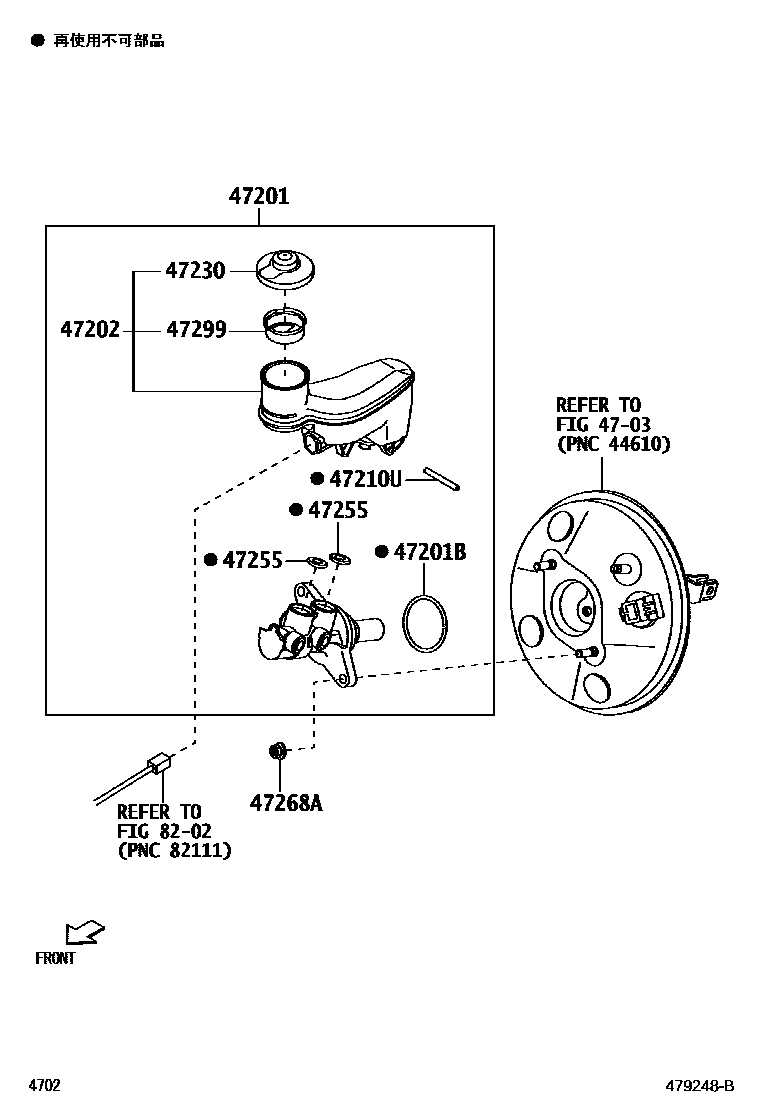

Toyota COPEN — BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B2380iLA400¥17,000201910

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iLA400¥110201910

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-B2110iLA400¥3,820201910

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iLA400¥150201910

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B4010iLA400¥1,000201910

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050iLA400¥260201910

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iLA400¥170201910

�l�W

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B2030iLA400¥620201910

8202

10 parts on this diagram · 1 diagram in section
