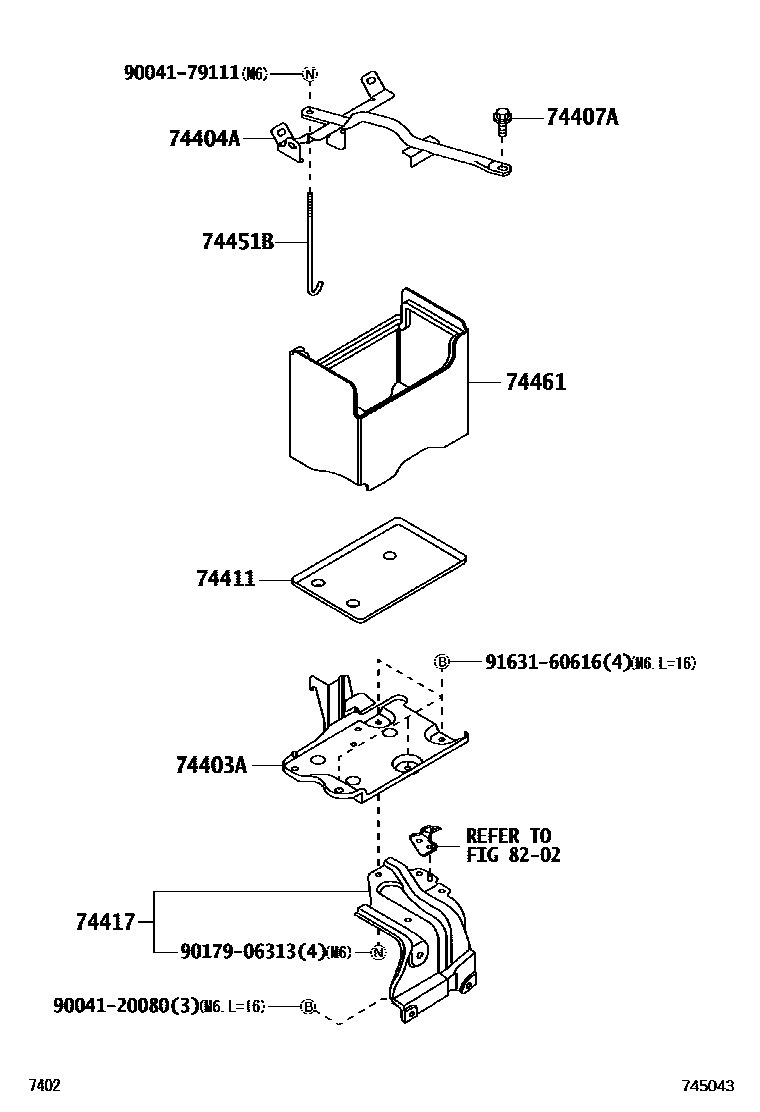

Toyota COPEN — BATTERY CARRIER

74403ACARRIER SUB-ASSY, BATTERY

main74403-B2060iLA400¥3,820201910

74404ACLAMP SUB-ASSY, BATTERY

main74404-B2180iLA400¥1,520201910

74407ABOLT SUB-ASSY, BATTERY CLAMP

main90041-05418iLA400¥170201910

�l�W�C�k���Q�R

74411CARRIER, BATTERY

main74411-B2100iLA400¥1,110201910

74417BRACKET, BATTERY CARRIER

main74417-B2070iLA400¥3,250201910

74451BBOLT, BATTERY CLAMP

main74451-B2040iLA400¥330201910

74461COVER, BATTERY

main74405-B2030iLA400¥1,730201910

8202

9004120080

main90041-20080¥110

9004179111

main90041-79111¥230

9017906313

main90179-06313¥90

9163160616

main91631-60616¥120

12 parts on this diagram · 1 diagram in section
