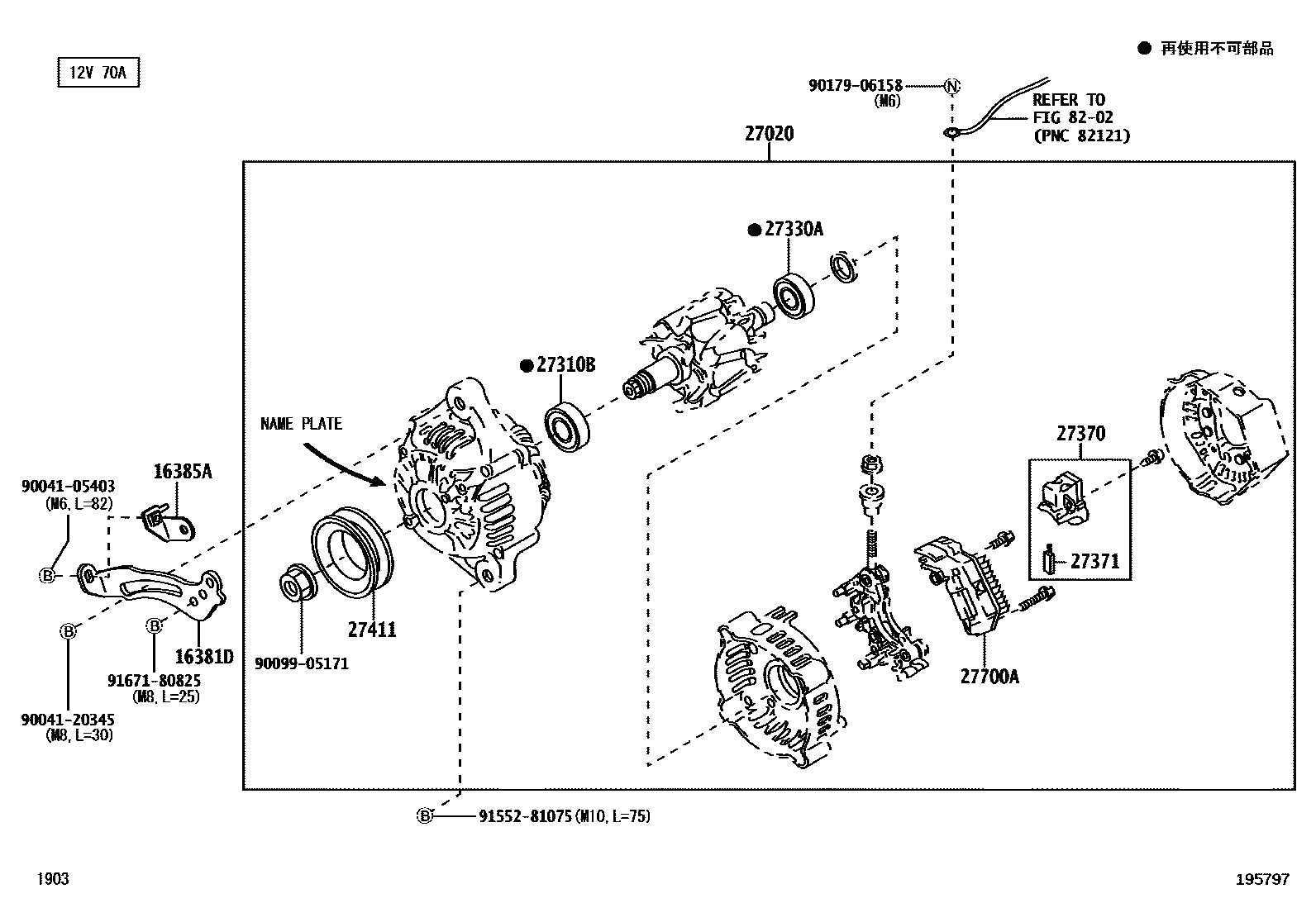

Toyota COPEN — ALTERNATOR

16381DBAR, FAN BELT ADJUSTING

main16381-B2011iKFVET..LA400¥980201910

16385ASLIDER, FAN BELT ADJUSTING

main16385-B2021iKFVET..LA400¥550201910

27020ALTERNATOR ASSY

main27060-B2070iKFVET..LA400¥39,300201910

�P�Q�u�@�V�O�`

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004C-37002iKFVET..LA400¥800201910

27330ABEARING(FOR ALTERNATOR ROTOR)

main27791-87708iKFVET..LA400¥570201910

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-B2010iKFVET..LA400201910

27371BRUSH, ALTERNATOR

main27371-87501iKFVET..LA400201910

27411PULLEY, ALTERNATOR

main27411-97202iKFVET..LA400201910

27700AREGULATOR ASSY, GENERATOR

main27700-B2040iKFVET..LA400¥14,300201910

8202

9004105403

main90041-05403¥300

9004120345

main90041-20345¥170

9009905171

main90099-05171

9017906158

main90179-06158¥70

9155281075

main91552-81075¥200

9167180825

main91671-80825¥80

16 parts on this diagram · 1 diagram in section
