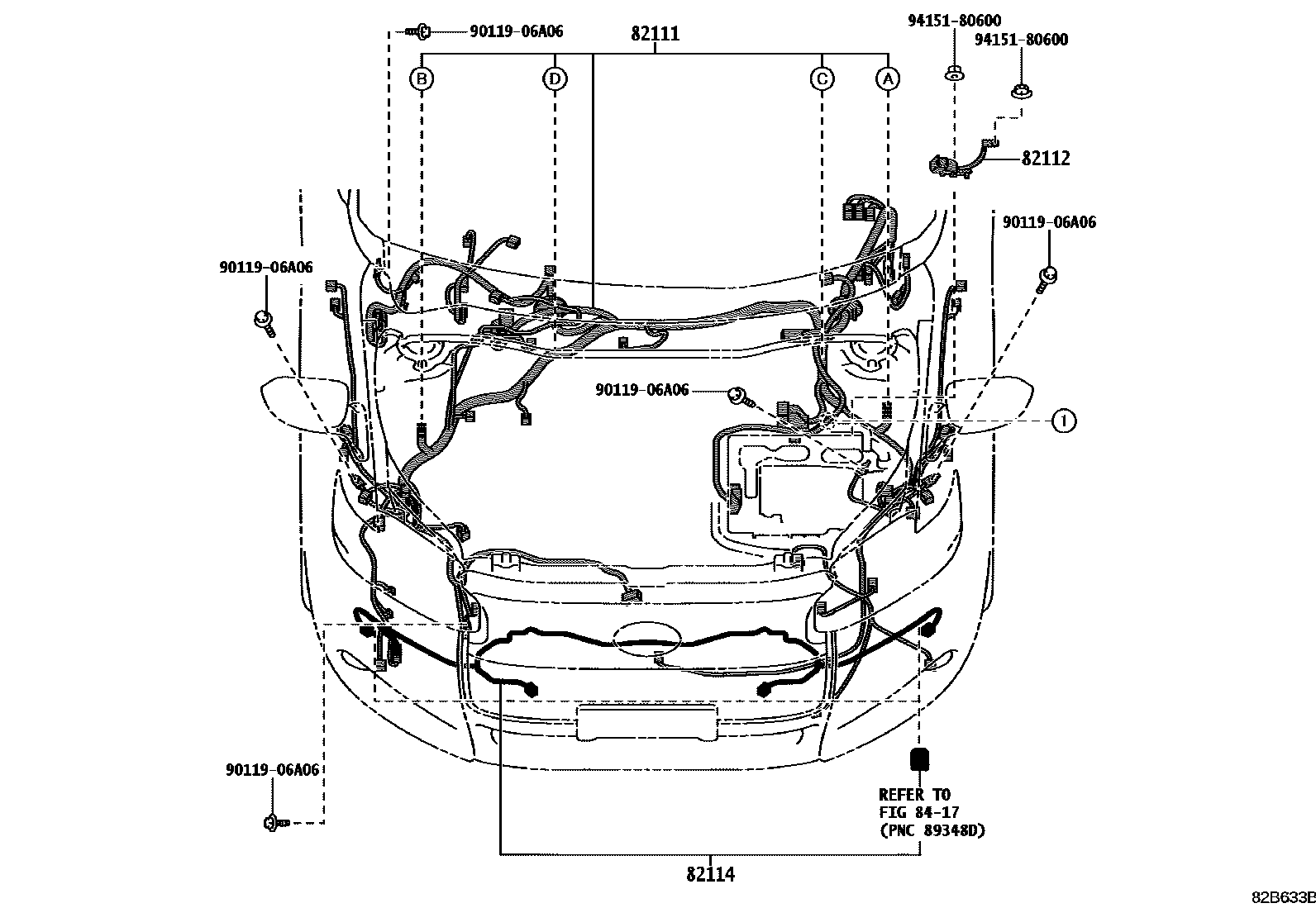

82111WIRE, ENGINE ROOM MAIN

main82111-15020iNTP10201710-202001

main82111-15021iNTP10202001-202105

main82111-15022iNTP10202105-202212

main82111-15052iNTP10¥149,000202212

82112WIRE, ENGINE ROOM, NO.2

main82112-52530iNTP10¥1,790201710

82114WIRE, ENGINE ROOM, NO.4

main82114-15010iNTP10¥5,100202212-202402

main82114-15011iNTP10¥2,680202402

8417

9011906A06

main90119-06A06¥60

9415180600

main94151-80600¥60

6 parts on this diagram · 11 diagrams in section
