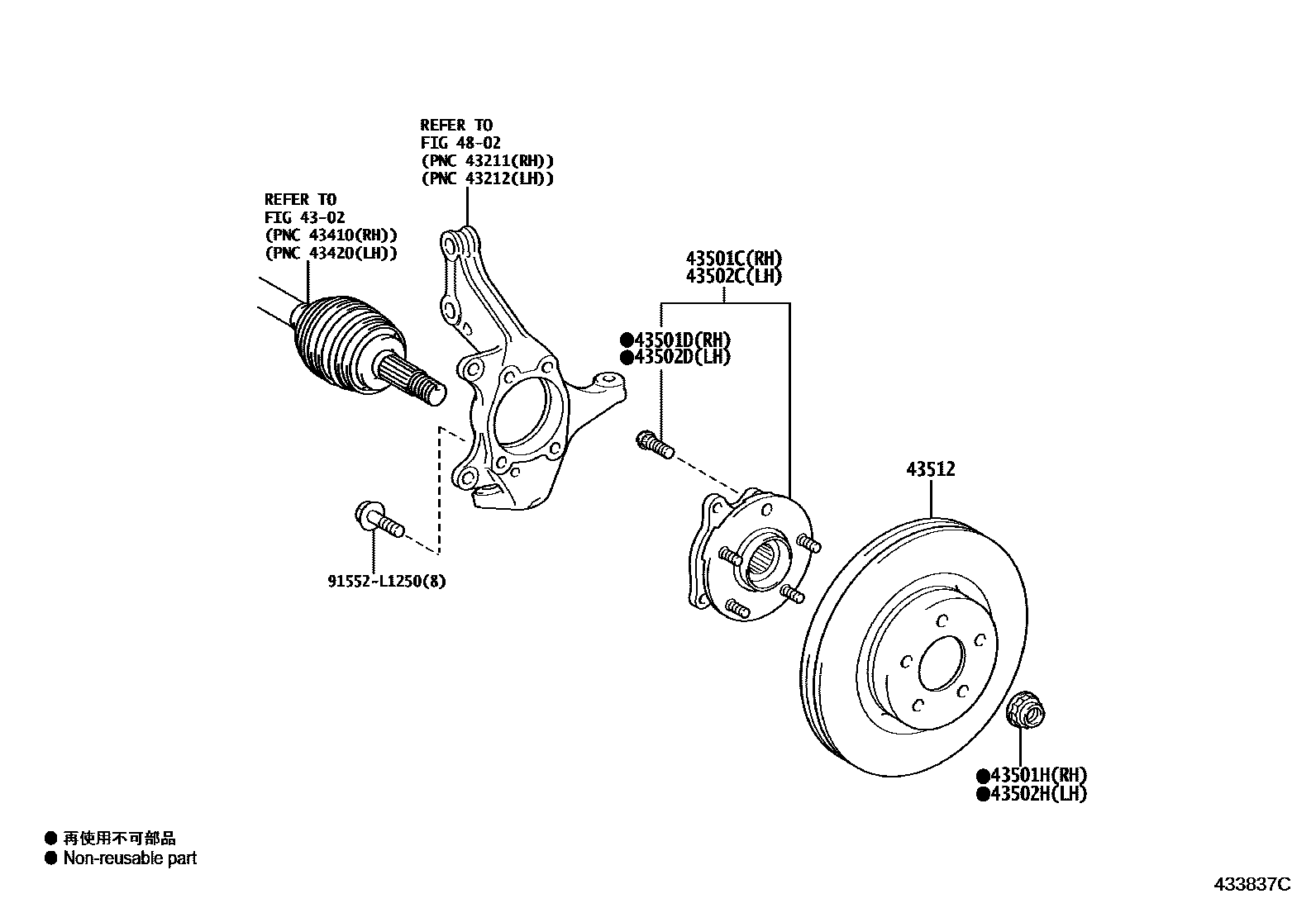

Toyota COMFORT — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-28010iNTP10¥13,600201710

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNTP10¥240201710

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNTP10¥220201710

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-28010iNTP10¥13,600201710

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNTP10¥240201710

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNTP10¥220201710

43512DISC, FRONT

main43512-12670iNTP10¥8,600201710

4802

91552L1250

main91552-L1250¥190

10 parts on this diagram · 1 diagram in section
