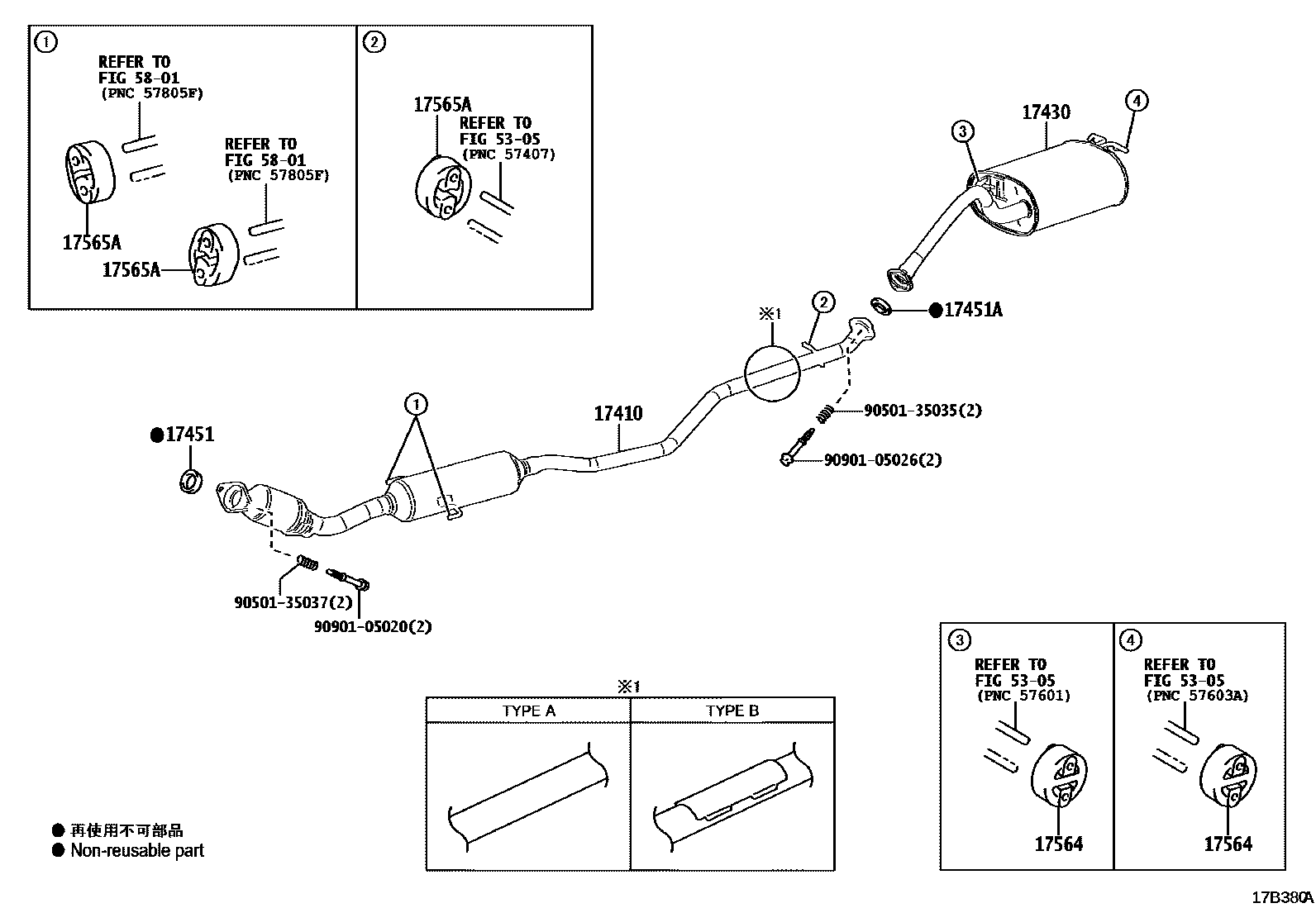

Toyota COMFORT — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21D70i1NZFXP..NTP10¥74,500201710-201803

sub17410-21D71¥74,400

main17410-21D71i1NZFXP..NTP10¥74,400201803-202004

TYPE A:REFER ILLUST.

main17410-21E50i1NZFXP..NTP10¥56,300202004

TYPE B:REFER ILLUST.

17430PIPE ASSY, EXHAUST, TAIL

main17430-21A60i1NZFXP..NTP10¥16,200201710

17451GASKET, EXHAUST PIPE

main17451-21070i1NZFXP..NTP10¥1,360201710

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i1NZFXP..NTP10¥790201710-202311

sub17451-23043¥720

main17451-23043i1NZFXP..NTP10¥720202311

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-28010i1NZFXP..NTP10¥670201710

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010i1NZFXP..NTP10¥320201710

5305

5801

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

12 parts on this diagram · 1 diagram in section
