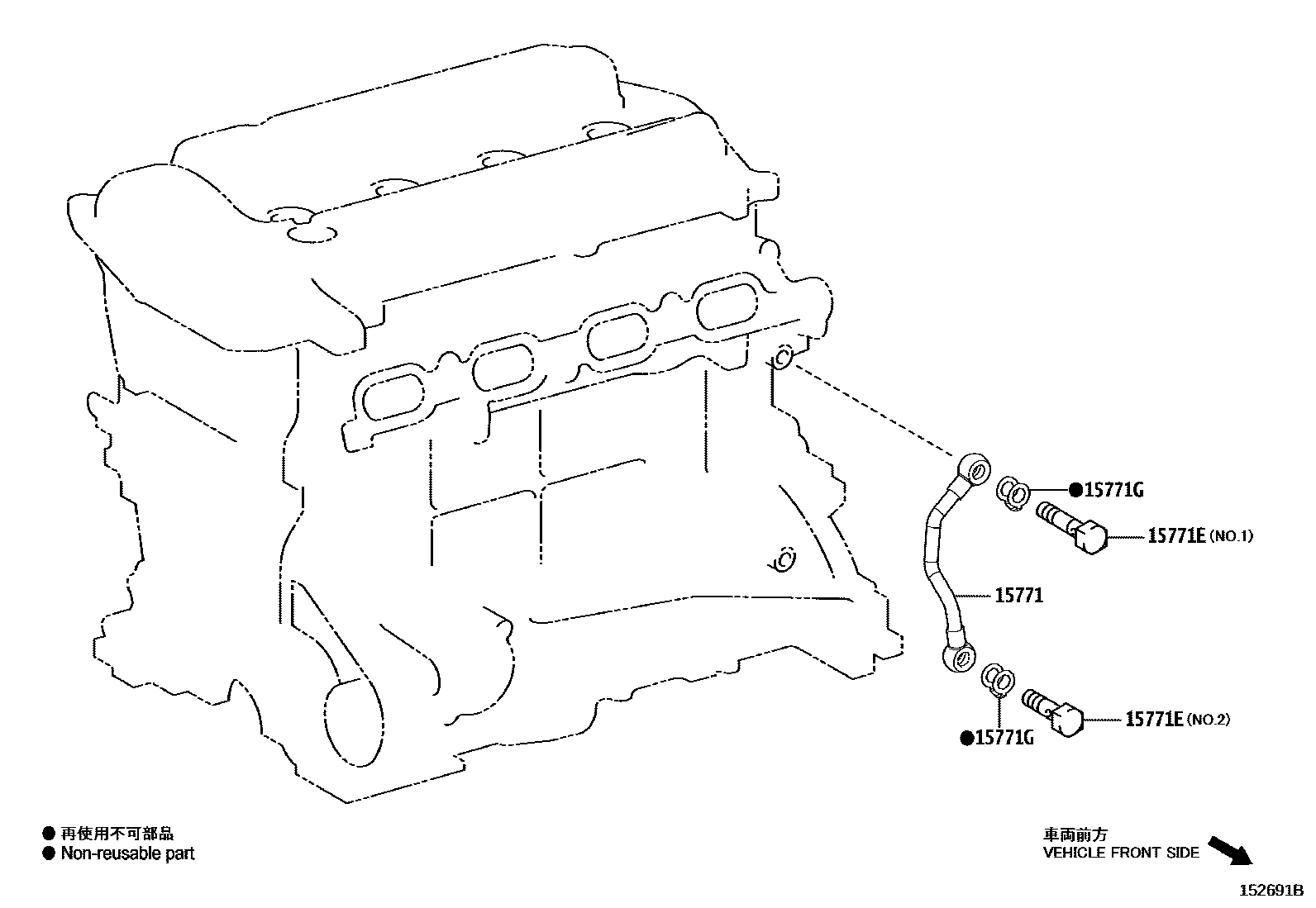

Toyota COMFORT — ENGINE OIL COOLER

15771PIPE, OIL, NO.1

main15771-21020i1NZFXP..NTP10¥2,350201710

15771EBOLT, UNION(FOR OIL PIPE)

main90401-12009i1NZFXP..NTP10¥260201710

NO.1:REFER ILLUST.

main90401-12037i1NZFXP..NTP10¥310201710

NO.2:REFER ILLUST.

15771GGASKET

main90430-12037i1NZFXP..NTP10¥80201710

3 parts on this diagram · 1 diagram in section
