Toyota COMFORT — CLEARANCE & BACK SONAR

5201

5202

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-15010iNTP10¥2,670202212

89305CUSHION SET, ULTRASONIC SENSOR

main89305-15010iNTP10¥100202212-202402

main89305-52010iNTP10¥90202402

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-15010iNTP10¥24,800202212-202402

main89340-15020iNTP10¥14,700202402

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-50080-C0iNTP10202402

DUMMY-MAT BLACK

main89341-58060-C4iNTP10202212-202402

DUMMY-MAT BLACK

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-50080-C0iNTP10202402

DUMMY-MAT BLACK

main89341-58060-C4iNTP10202212-202402

DUMMY-MAT BLACK

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-50080-C0iNTP10202402

DUMMY-MAT BLACK

main89341-58060-C4iNTP10202212-202402

DUMMY-MAT BLACK

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-50080-C0iNTP10202402

DUMMY-MAT BLACK

main89341-58060-C4iNTP10202212-202402

DUMMY-MAT BLACK

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iNTP10¥1,850202212

89347EBEZEL, ULTRASONIC SENSOR, FRONT CORNER

main89348-58090-C3iNTP10202212-202402

DUMMY-MAT BLACK,LH

main89348-58100-C3iNTP10202212-202402

DUMMY-MAT BLACK,RH

89347FBEZEL, ULTRASONIC SENSOR, FRONT CENTER

main89348-58070-C3iNTP10202212-202402

DUMMY-MAT BLACK

89348DCLIP, ULTRASONIC SENSOR

main89348-58130iNTP10¥0202212

89348UBEZEL, ULTRASONIC SENSOR, REAR CORNER

main89348-58090-C3iNTP10202212-202402

DUMMY-MAT BLACK,LH

main89348-58100-C3iNTP10202212-202402

DUMMY-MAT BLACK,RH

89348VBEZEL, ULTRASONIC SENSOR, REAR CENTER

main89348-58090-C3iNTP10202212-202402

DUMMY-MAT BLACK,RH

main89348-58100-C3iNTP10202212-202402

DUMMY-MAT BLACK,LH

9015970003

main90159-70003¥60

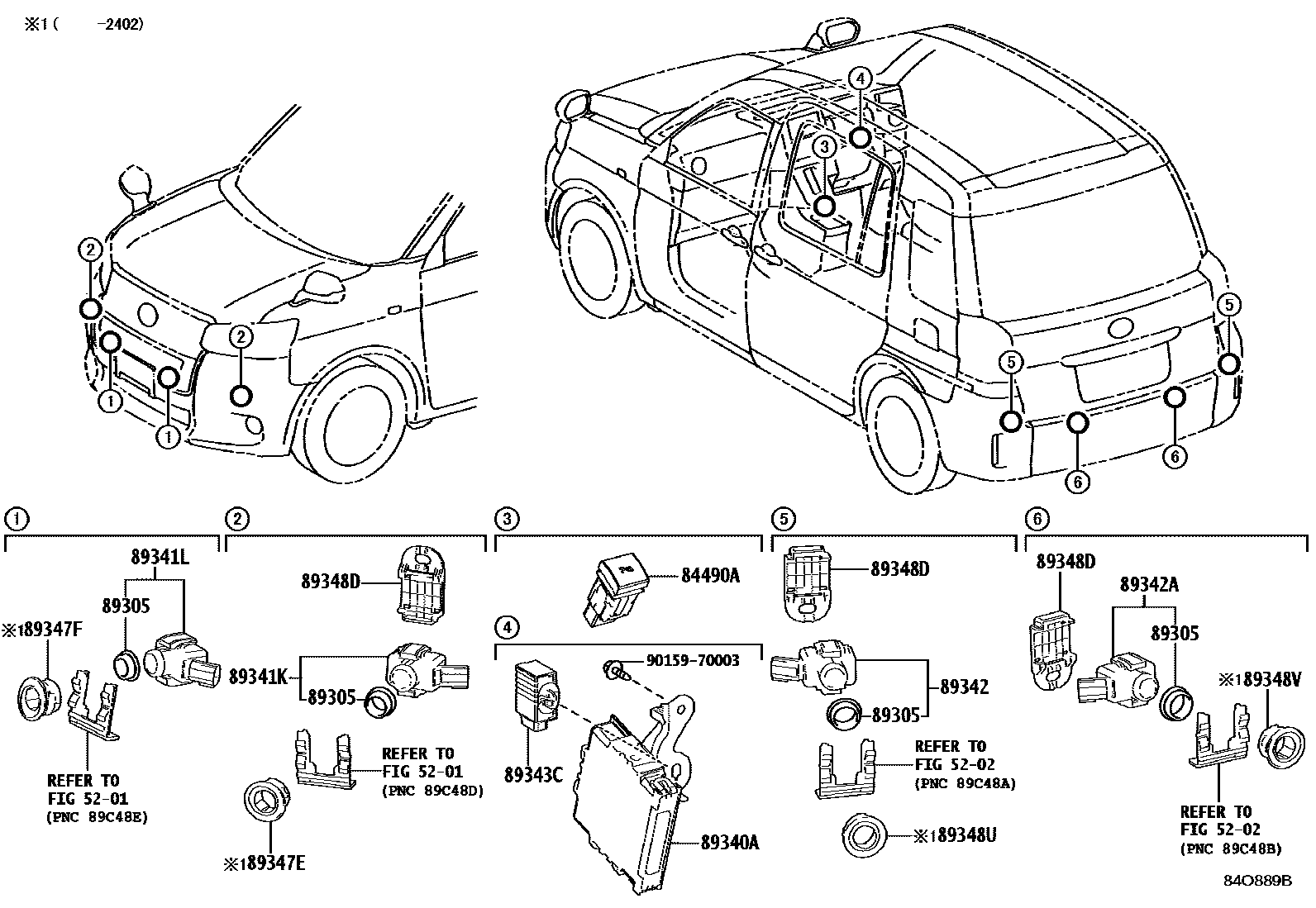

16 parts on this diagram · 1 diagram in section
