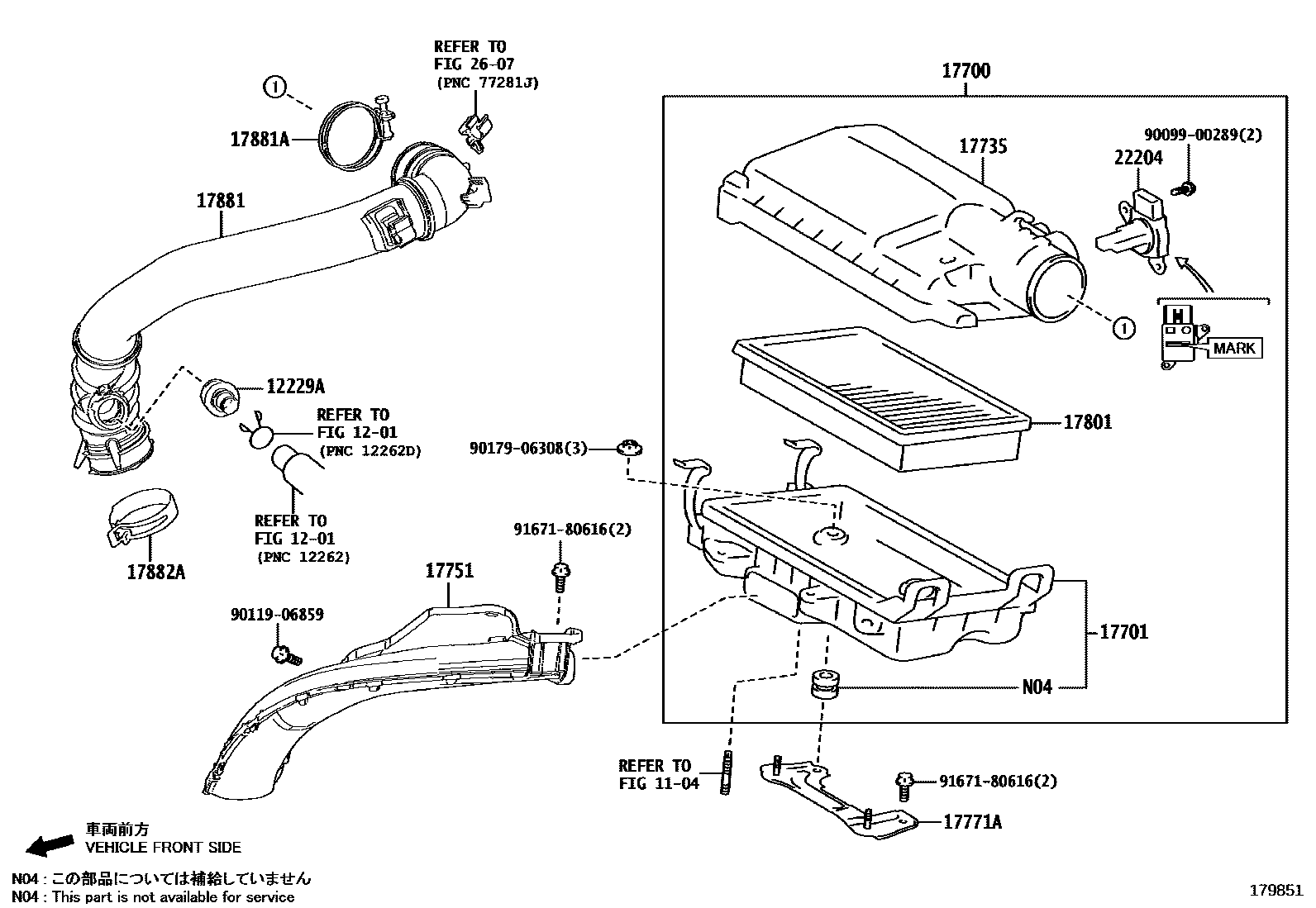

Toyota COMFORT — AIR CLEANER

1104

1201

12229APIPE, VENTILATION

main12229-33010i1NZFXP..NTP10¥440201710

17700CLEANER ASSY, AIR

main17700-21190i1NZFXP..NTP10¥15,700201710

17701CASE SUB-ASSY, AIR CLEANER

main17701-21150i1NZFXP..NTP10201710

17735CAP, AIR CLEANER

main17735-21050i1NZFXP..NTP10201710

17751INLET, AIR CLEANER, NO.1

main17751-21260i1NZFXP..NTP10¥3,560201710

17771ABRACKET, AIR CLEANER

main17771-21080i1NZFXP..NTP10¥740201710

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050i1NZFXP..NTP10¥2,700201710

17881HOSE, AIR CLEANER, NO.1

main17881-21170i1NZFXP..NTP10¥2,600201710

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i1NZFXP..NTP10¥240201710

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-54002i1NZFXP..NTP10¥320201710

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1NZFXP..NTP10¥16,500201710

MARK 22204-0T040

sub22204-28010¥12,400

main22204-0V010i1NZFXP..NTP10¥16,500201710

MARK 22204-0V010

sub22204-0V020¥16,500

main22204-0V020i1NZFXP..NTP10¥16,500201710

MARK 22204-0V020

main22204-28010i1NZFXP..NTP10¥12,400201710

MARK 22204-28010

2607

9009900289

main90099-00289¥60

9011906859

main90119-06859¥130

9017906308

main90179-06308¥80

9167180616

main91671-80616¥60

18 parts on this diagram · 1 diagram in section
