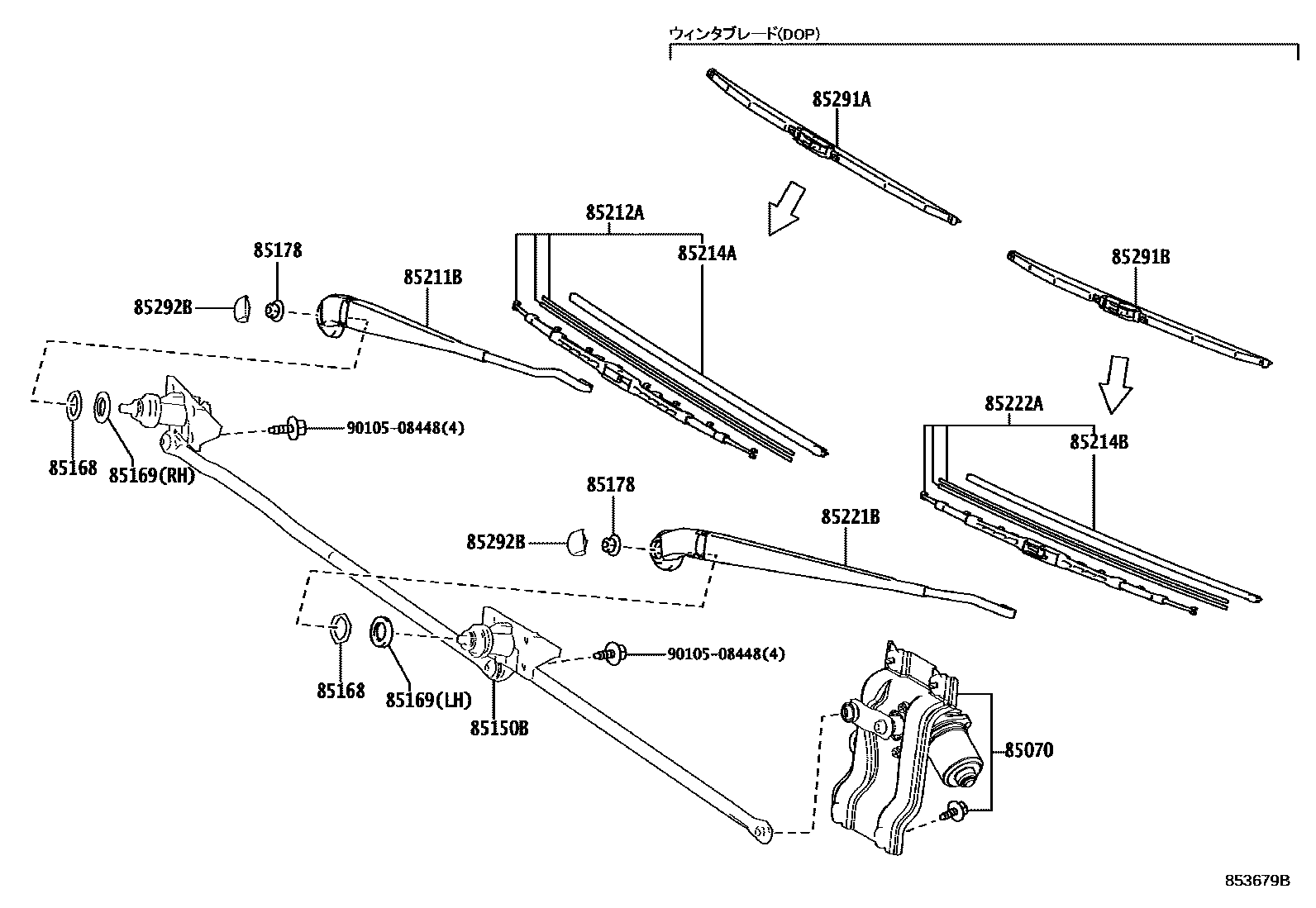

Toyota COASTER — WINDSHIELD WIPER

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-36100iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥19,200201701-202201

main85070-36100iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥19,200201701

main85070-36100iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥19,200202201-202312

main85070-36100iGDB60,70,80¥19,200202201-202412

85150BLINK ASSY, WIPER

main85150-36040iXZB60,70¥10,800201701-201807

sub85150-36041¥10,800

main85150-36060iXZB60,70¥10,800201807-201902

sub85150-36061¥8,100

main85150-36061iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥8,100201903-202201

main85150-36061iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥8,100201903

main85150-36061iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥8,100202201-202312

main85150-36061iGDB60,70,80¥8,100202201-202412

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85113-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥320201701-202201

main85113-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥320201701

main85113-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥320202201-202312

main85113-36010iGDB60,70,80¥320202201-202412

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85152-36010iXZB60,70¥320201701-201709

�E��

sub85152-36011¥230

sub85152-36021¥240

main85152-36011iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥230202201-202312

�E��

main85152-36011iGDB60,70,80¥230202201-202412

�E��

main85152-36011iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥230201709

�E��

main85152-36011iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥230201709-202201

�E��

main85152-36020iXZB60,70¥330201701-201709

����

sub85152-36021¥240

sub85152-36011¥230

main85152-36021iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥240202201-202312

����

main85152-36021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥240201709-202201

����

main85152-36021iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥240201709

����

main85152-36021iGDB60,70,80¥240202201-202412

����

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥80201701-202201

main90182-10006iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥80201701

main90182-10006iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥80202201-202312

main90182-10006iGDB60,70,80¥80202201-202412

85211BARM, FRONT WIPER, RH

main85211-36040iXZB60,70¥4,570201701-201807

main85211-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥3,460201807-202201

main85211-36060iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥3,460201807

main85211-36060iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥3,460202201-202312

main85211-36060iGDB60,70,80¥3,460202201-202412

85212ABLADE, FR WIPER, RH

main85212-26130iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥2,900201701-202201

main85212-26130iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥2,900201701

main85212-26130iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥2,900202201-202312

main85212-26130iGDB60,70,80¥2,900202201-202412

85214ARUBBER, WIPER, RH

main85214-48010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥940201701-202201

main85214-48010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥940201701

main85214-48010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥940202201-202312

main85214-48010iGDB60,70,80¥940202201-202412

85214BRUBBER, WIPER, LH

main85214-24051iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥800201701-202201

main85214-24051iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥800201701

main85214-24051iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥800202201-202312

main85214-24051iGDB60,70,80¥800202201-202412

85221BARM, FRONT WIPER, LH

main85221-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥3,600201701-202201

main85221-36040iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥3,600201701

main85221-36040iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥3,600202201-202312

main85221-36040iGDB60,70,80¥3,600202201-202412

85222ABLADE, FR WIPER, LH

main85212-26051iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥2,400201701-202201

main85212-26051iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥2,400201701

main85212-26051iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥2,400202201-202312

main85212-26051iGDB60,70,80¥2,400202201-202412

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥250201701-202201

main85292-13010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥250201701

main85292-13010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥250202201-202312

main85292-13010iGDB60,70,80¥250202201-202412

9010508448

main90105-08448¥80

15 parts on this diagram · 1 diagram in section
