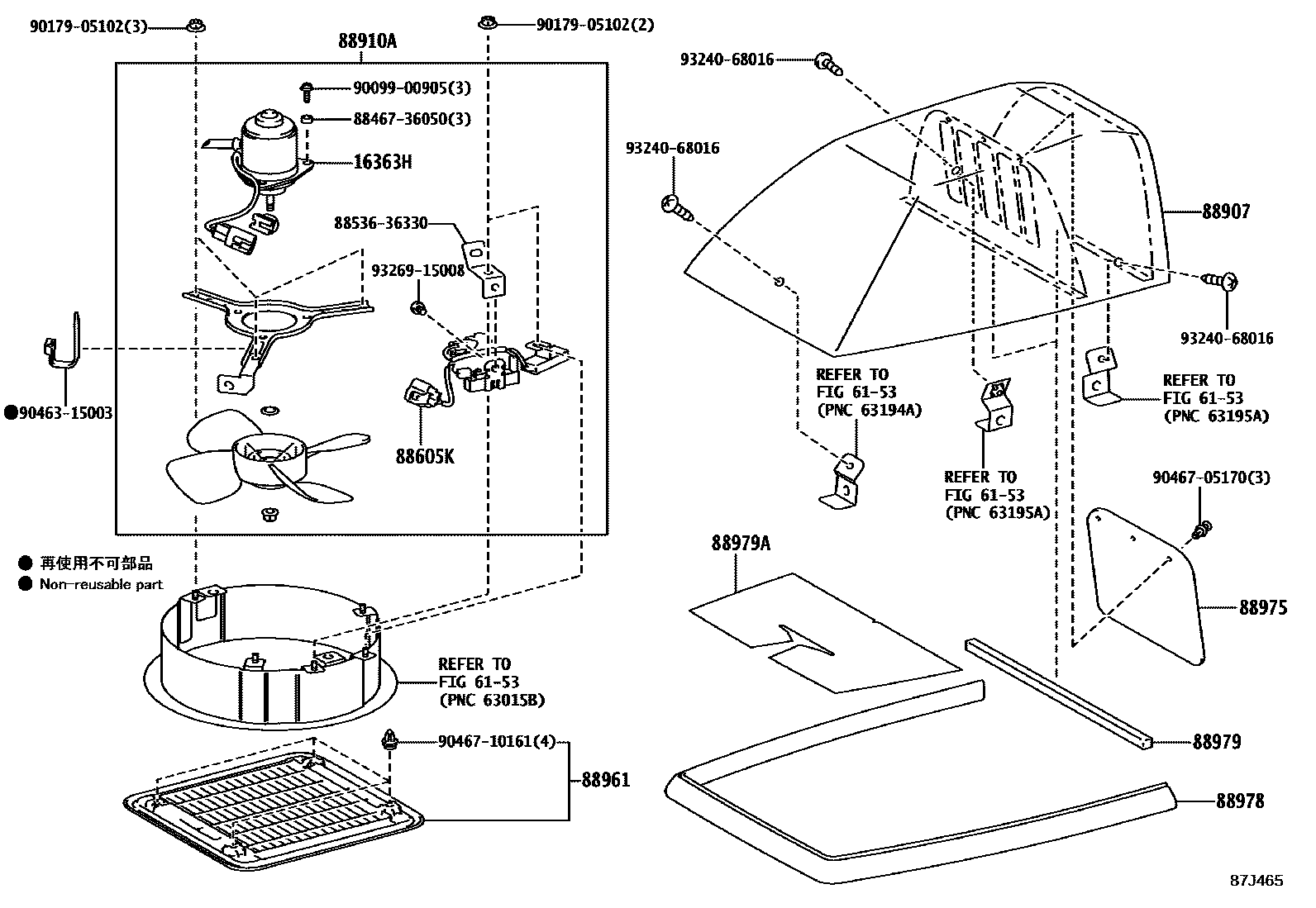

Toyota COASTER — VENTILATOR

0001 1 0002 1

16363HMOTOR, COOLING FAN

6153

88605KHARNESS SUB-ASSY, WIRING AIR CONDITIONER

88907COVER SUB-ASSY, BOOST VENTILATOR

main88907-36900¥23,900

88910AVENTILATOR ASSY, BOOST

88961GRILLE, BOOST VENTILATOR

main88961-36020¥2,240

88975BUTTERFLY, BOOST VENTILATOR

main88975-36020¥620

88978TRIM, BOOST VENTILATOR COVER

main88978-36060¥2,220

88979SEAL, BOOST VENTILATOR

main88979-36030¥500

main88979-36040¥2,110

88979ASEAL, BOOST VENTILATOR NO.2

8846736050CUSHION, COOLER CONDENSER, NO.1

main88467-36050

8853636330BRACKET, COOLING UNIT, NO.1

main88536-36330

9009900905

main90099-00905

9017905102

main90179-05102¥90

9046315003

main90463-15003¥160

9046705170

main90467-05170¥80

9046710161

main90467-10161¥90

9324068016

main93240-68016¥70

9326915008

main93269-15008¥60

19 parts on this diagram · 2 diagrams in section
