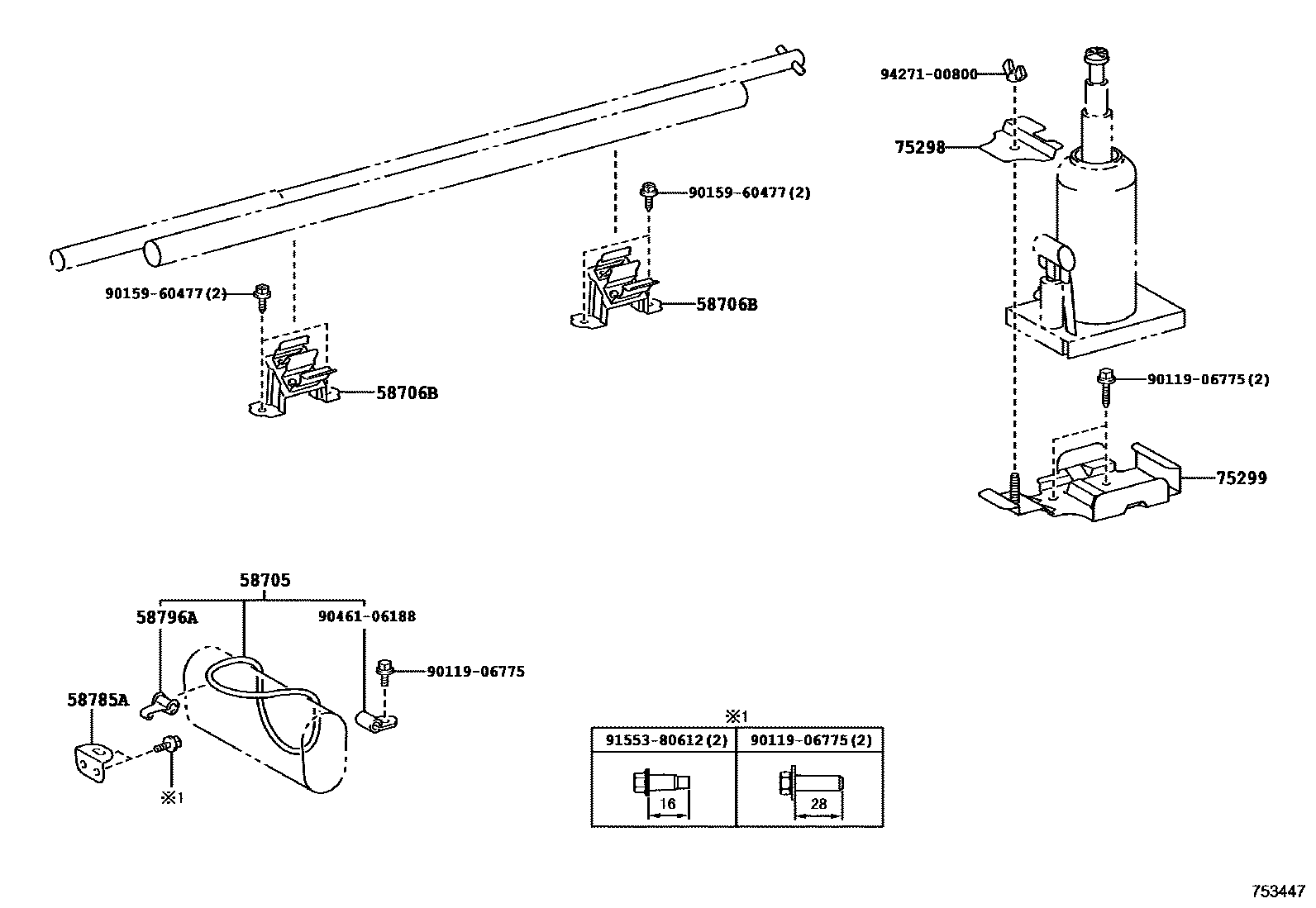

Toyota COASTER — TOOL BOX & LICENSE PLATE BRACKET

58705BAND SUB-ASSY, TOOL BAG

main58705-36010iXZB70..29S;XZB80..HDCR;XZB60..25S..5F¥470201701-202412

main58705-36020iXZB60..09S;XZB60,70..(24S,39S,49S)..5F;XZB70..(21S,24S,49S)..6FC..(EX,PREM,S)¥540201701-202412

58706BCLAMP SUB-ASSY, JACK HANDLE

main58706-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥720201701-202412

58785ABRACKET, TOOL BAG BAND

main58785-90B00iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥650201701-202412

58796AHOOK, JACK CLAMP

main58796-20012iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥220201701-202412

75298PLATE, JACK HOLDER

main75298-95400iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥660201701-202412

75299BASE, JACK HOLDER

main75299-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,240201701-202412

9011906775

main90119-06775¥130

9015960477

main90159-60477¥70

9046106188

main90461-06188¥130

9155380612

main91553-80612¥60

9427100800

main94271-00800

11 parts on this diagram · 1 diagram in section
