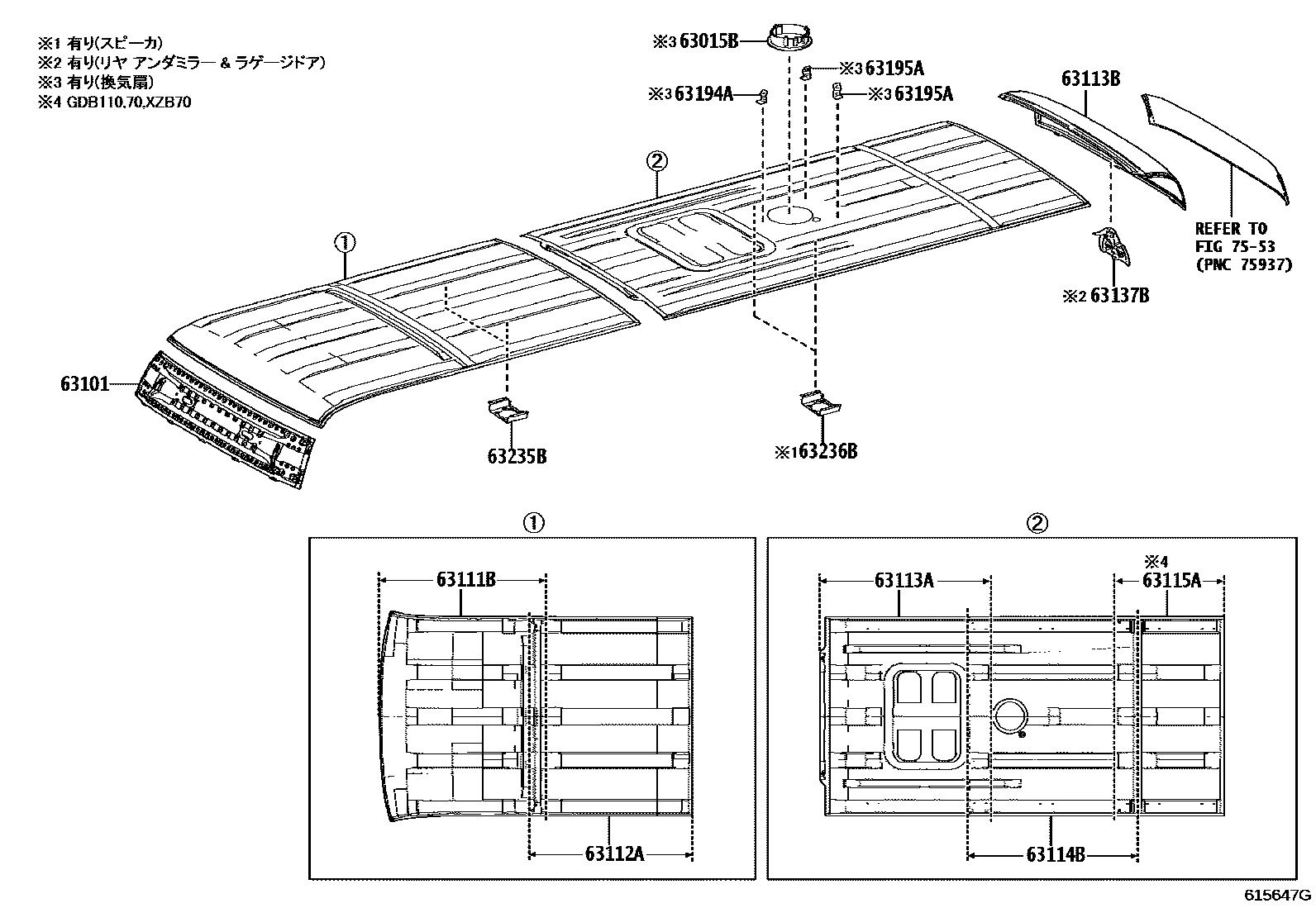

Toyota COASTER — ROOF PANEL & BACK PANEL

0001 1������� 0002 1������� 0003 1��������� 0004 1��������� 0005 1��������� 0006 1�������� & ���� 0007 1����������

63015BFLANGE SUB-ASSY, BOOST VENTILATOR HOLE

63101PANEL SUB-ASSY, ROOF

main63101-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥57,400201701-202201

main63101-36040iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥57,400201701

main63101-36040iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥57,400202201-202312

main63101-36040iGDB60,70,80¥57,400202201-202412

63111BPANEL, ROOF, NO.1

main63116-36100iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥88,300201701-202201

main63116-36100iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥88,300201701

main63116-36100iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥88,300202201-202312

main63116-36100iGDB60,70,80¥88,300202201-202412

63112APANEL, ROOF, NO.2

main63117-36130iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥84,600201701-202201

main63117-36130iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥84,600201701

main63117-36130iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥84,600202201-202312

main63117-36130iGDB60,70,80¥84,600202201-202412

63113APANEL, ROOF, NO.3

main63118-36110iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥80,500201701

main63118-36110iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥80,500201701-202201

main63118-36110iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥80,500202201-202312

main63118-36110iGDB60,70,80¥80,500202201-202412

63113BPANEL, ROOF, REAR

main63113-36150iXZB70..29S;XZB60..25S..5F¥31,400202201-202312

main63113-36150iXZB70..29S;XZB60..25S..5F¥31,400201701-202201

main63113-36150iXZB60..25S..6FC¥31,400201701

main63113-36150iGDB60..25S¥31,400202201-202412

main63113-36230iXZB60..09S;XZB80..HDCR;XZB60,70..(24S,39S,49S)..5F;XZB70..(21S,24S,49S)..6FC..(EX,PREM,S)¥31,400201701-202201

main63113-36230iXZB60..09S;XZB80..HDCR;XZB60..5F..S;XZB70..EX,PREM,S¥31,400202201-202312

main63113-36230iGDB60,70,80..09S,13S,24S,39S¥31,400202201-202412

main63113-36230iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,39S)..6FC..DCR¥31,400201701

63114BPANEL, ROOF, NO.4

main63119-36140iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥85,200201701-202201

main63119-36140iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥85,200201701

main63119-36140iGDB60,70,80¥85,200202201-202412

main63119-36140iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥85,200202201-202312

63115APANEL, ROOF, NO.5

main63115-36A00iGDB70¥54,000202201-202412

main63115-36A00iXZB70..5F;XZB70..24S..HDCR;XZB70..(21S,29S,49S)..6FC¥54,000201701-202201

main63115-36A00iXZB70..(09S,24S)..6FC..DCR¥54,000201701

main63115-36A00iXZB70..EX;XZB70..21S,29S,49S¥54,000202201-202312

63137BRETAINER, OUTER UNDER REAR VIEW MIRROR

main63137-36030iXZB70..29S;XZB60..25S..5F¥900201701-202201

main63137-36030iXZB60..25S..6FC¥900201701

main63137-36030iXZB70..29S;XZB60..25S..5F¥900202201-202312

main63137-36030iGDB60..25S¥900202201-202412

63194ABRACKET, BOOST VENTIRATOR COVER, NO.1

63195ABRACKET, BOOST VENTIRATOR COVER, NO.2

63235BBRACKET, ROOM SPEAKER

main63236-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,530201701-202201

main63236-36030iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥1,530201701

main63236-36030iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,530202201-202312

main63236-36030iGDB60,70,80¥1,530202201-202412

63236BBRACKET, ROOM SPEAKER

main63236-36030iXZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,530201701-202201

main63236-36030iXZB60,70,80..(13S,24S,25S,39S)..6FC..DCR¥1,530201701

main63236-36030iXZB60..5F;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,530202201-202312

main63236-36030iGDB60,70,80..13S,24S,25S,39S¥1,530202201-202412

7553

14 parts on this diagram · 7 diagrams in section
