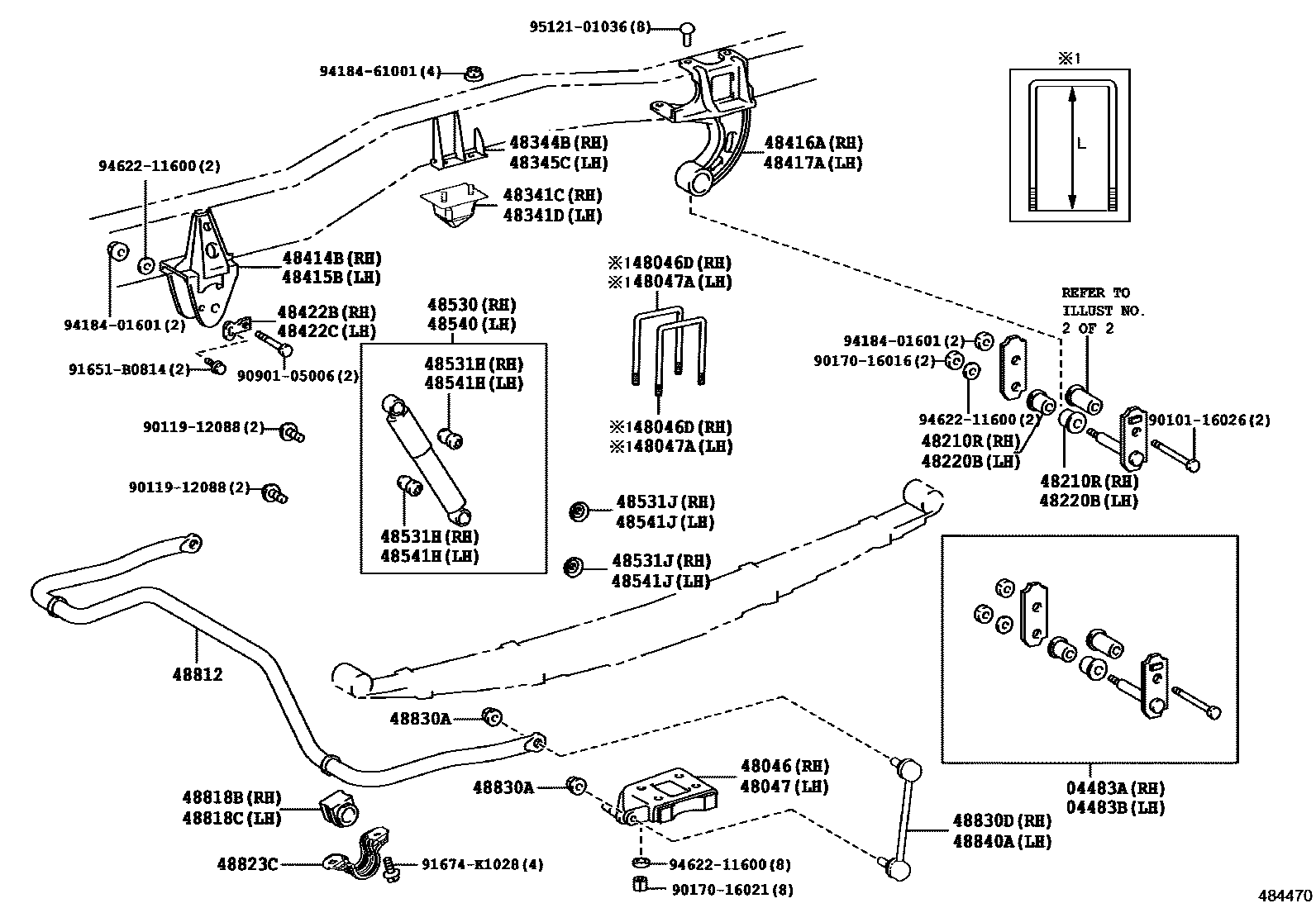

Toyota COASTER — REAR SPRING & SHOCK ABSORBER

0001 1 0002 12����� 0003 12����� 0004 12�����,��(�����) 0005 13�����

04483ASHACKLE KIT, REAR SPRING, RH

main04483-36120iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥6,600201701-202201

04483BSHACKLE KIT, REAR SPRING, LH

main04483-36120iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥6,600201701-202201

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-36240iGDB60,70¥3,560201701-202412

main48046-36320iXZB80..HDCR¥3,590201908-202412

48046DBOLT, U(FOR REAR SPRING RH)

main90117-16042iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,380201701-202412

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-36240iXZB60..09S;XZB60,70..5F;XZB70..24S..HDCR;XZB70..(21S,29S,49S)..6FC¥3,560201701-202412

main48047-36320iXZB80..HDCR¥3,590201908-202412

48047ABOLT, U(FOR REAR SPRING LH)

main90117-16042iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,380201701-202412

48210SPRING ASSY, REAR RH

main48210-36A30iXZB60,70..(24S,25S)..6FC..DCR¥33,000201908-202412

main48210-36A70iXZB70..S;XZB60..09S;XZB60..5F..S¥34,400201908-202412

main48210-36B10iGDB80¥35,900201908-202412

main48210-36B30iXZB70..HDCR¥33,000201908-202312

main48210-36B50iXZB80..HDCR¥35,900201908-202312

main48210-3B870iXZB60,70..09S,39S,49S¥46,400201701-201908

main48210-3C070iXZB60,70..(24S,25S,29S)..(GX,LX)..DCR¥43,800201701-201908

main48210-3C180iXZB70..HDCR;XZB70..EX..DCR¥36,200201701-201908

48210RBUSH(FOR REAR SPRING SHACKLE LOWER RH)

main90385-23002iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥370201701-202412

48220SPRING ASSY, REAR LH

main48210-36A20iXZB70..29S..6FC..DCR;XZB60,70..5F..(GX,LX)¥33,000201908-202412

main48210-36A60iXZB60..09S;XZB60,70..5F..S¥34,400201908-202412

main48210-36B00iXZB80..DCR¥35,900201908-202412

main48210-36B20iXZB70..HDCR¥33,000201908-202312

main48210-36B40iXZB80..HDCR¥35,900201908-202312

main48210-3B800iXZB60,70..(24S,25S,29S)..(GX,LX)..DCR¥43,800201701-201908

main48210-3B860iXZB60,70..09S,39S,49S¥46,400201701-201908

main48210-3C170iXZB70..HDCR;XZB70..EX..DCR¥36,200201701-201908

48220BBUSH(FOR REAR SPRING SHACKLE LOWER LH)

main90385-23002iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥370201701-202412

48341CBUMPER, REAR SPRING, NO.2 RH

main48306-36090iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥2,460201701-202412

48341DBUMPER, REAR SPRING, NO.2 LH

main48306-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥2,460201701-202412

48344BSTOPPER, BUMPER, REAR RH

main48344-36450iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥680201701-202412

48345CSTOPPER, BUMPER, REAR LH

main48345-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,440201701-202412

48414BBRACKET, SPRING, NO.3 RH

main48414-36320iGDB70..GX¥6,000201701-202412

main48414-36330iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..(29S,49S)..(LX,S)¥5,400201701-202412

48415BBRACKET, SPRING, NO.3 LH

main48415-36100iGDB70..GX¥6,000201701-202412

main48415-36110iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..(29S,49S)..(LX,S)¥5,400201701-202412

48416ABRACKET, SPRING, NO.4 RH

main48416-36291iXZB70..(09S,24S)..6FC..LX;XZB60,80..(13S,25S,39S)..6FC..DCR¥10,700201701-202412

main48416-36301iXZB70..HDCR;XZB70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR¥11,600201701-202412

48417ABRACKET, SPRING, NO.4 LH

main48417-36161iXZB60..5F;XZB60..09S;XZB80..HDCR;XZB70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)¥10,700201701-202412

main48417-36171iXZB70..HDCR;XZB70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR¥11,600201701-202412

48422BSUPPORT, REAR SPRING PIN, RH

main48422-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥320201701-202412

48422CSUPPORT, REAR SPRING PIN, LH

main48422-37010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥320201701-202412

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80807iXZB60,70¥7,100201701-201908

main48531-80832iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥5,300201908-202412

48531HBUSH(FOR REAR SHOCK ABSORBER RH)

main90385-19006iGDB60,70,80¥400201701-202412

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90948-03011iGDB60,70,80¥130201701-202412

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80807iXZB60,70¥7,100201701-201908

main48531-80832iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥5,300201908-202412

48541HBUSH(FOR REAR SHOCK ABSORBER LH)

main90385-19006iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥400201701-202412

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90948-03011iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥130201701-202412

48812BAR, STABILIZER, REAR

main48812-36031iXZB60,70..5F;XZB70..24S..HDCR;XZB70..(21S,29S,49S)..6FC¥8,700201701-202412

main48812-36060iXZB60..09S¥9,700201701-202412

main48812-36070iXZB80..HDCR¥10,500201908-202412

48818BBUSH, STABILIZER, REAR RH

main48818-36030iXZB60..5F;XZB70..EX;XZB70..21S,29S,49S¥760201701-202412

main48818-36050iXZB70..09S¥760201701-202412

main48818-36070iGDB80¥760201908-202412

48818CBUSH, STABILIZER, REAR LH

main48818-36040iGDB60,70..24S,25S,39S¥760201701-202412

main48818-36060iXZB60..09S¥760201701-202412

main48818-36080iXZB80..HDCR¥760201908-202412

48823CCOVER, REAR STABILIZER BRACKET

main48823-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥660201701-202412

48830ANUT(FOR REAR STABILIZER LINK)

main94151-21241iXZB60..5F;XZB70..EX;XZB60..09S;XZB70..21S,29S,49S¥100201701-202412

main94151-21441iXZB80..HDCR¥120201908-202412

48830DLINK ASSY, REAR STABILIZER, RH

main48830-36021iXZB60..5F;XZB70..EX;XZB60..09S;XZB70..21S,29S,49S¥2,940201701-202412

main48830-36060iGDB80¥2,940201908-202412

48840ALINK ASSY, REAR STABILIZER, LH

main48830-36021iGDB60,70¥2,940201701-202412

main48830-36060iXZB80..HDCR¥2,940201908-202412

9010116026

main90101-16026¥490

9011912088

main90119-12088¥190

9017016016

main90170-16016¥130

9017016021

main90170-16021¥220

9090105006

main90901-05006¥590

91651B0814

main91651-B0814¥120

91674K1028

main91674-K1028¥120

9418401601

main94184-01601¥160

9418461001

main94184-61001¥80

9462211600

main94622-11600¥170

9512101036

main95121-01036¥310

44 parts on this diagram · 5 diagrams in section
