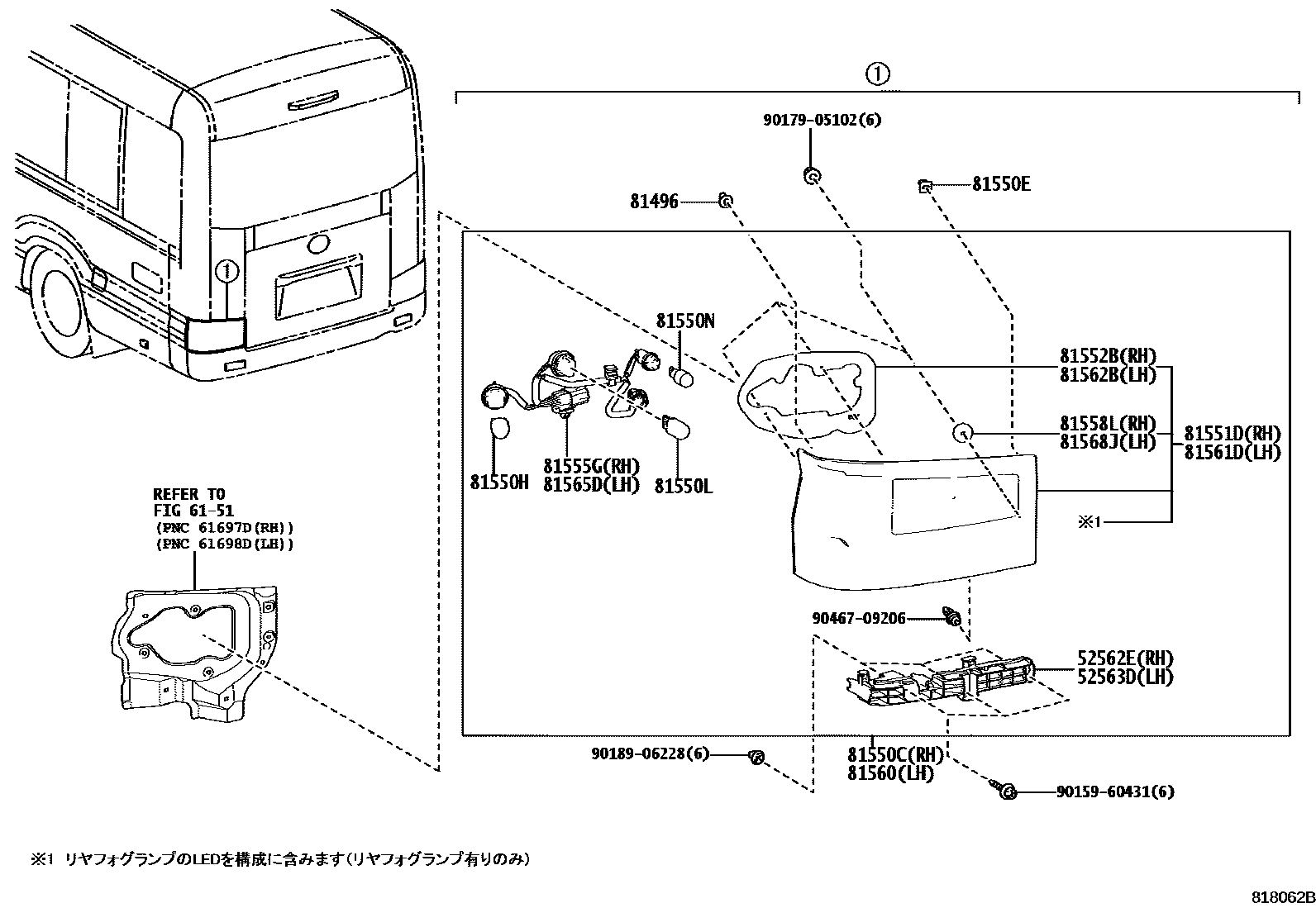

Toyota COASTER — REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,220201701-202412

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,220201701-202412

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥70201701-202412

81550CLAMP ASSY, REAR COMBINATION, RH

main81550-36540iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥16,700201701-202412

81550ECLIP(FOR REAR COMBINATION LAMP)

main76817-26040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥110201701-202412

81550HBULB, TAIL & STOP LAMP

main90981-13044iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥230201701-202412

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥300201701-202412

81550NBULB, BACK UP LAMP

main90981-11059iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥200201701-202412

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-36540iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥13,800201701-202412

81552BPACKING, REAR COMBINATION LAMP BODY, RH

main81552-36540iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥630201701-202412

81555GCORD, REAR COMBINATION LAMP, RH

main81555-36540iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,830201701-202412

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥190201701-202412

81560LAMP ASSY, REAR COMBINATION, LH

main81560-36380iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥16,700201701-202412

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-36380iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥13,800201701-202412

81562BPACKING, REAR COMBINATION LAMP BODY, LH

main81562-36380iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥630201701-202412

81565DCORD, REAR COMBINATION LAMP, LH

main81565-36380iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,830201701-202412

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥190201701-202412

9015960431

main90159-60431¥70

9017905102

main90179-05102¥90

9018906228

main90189-06228¥70

9046709206

main90467-09206¥80

22 parts on this diagram · 1 diagram in section
