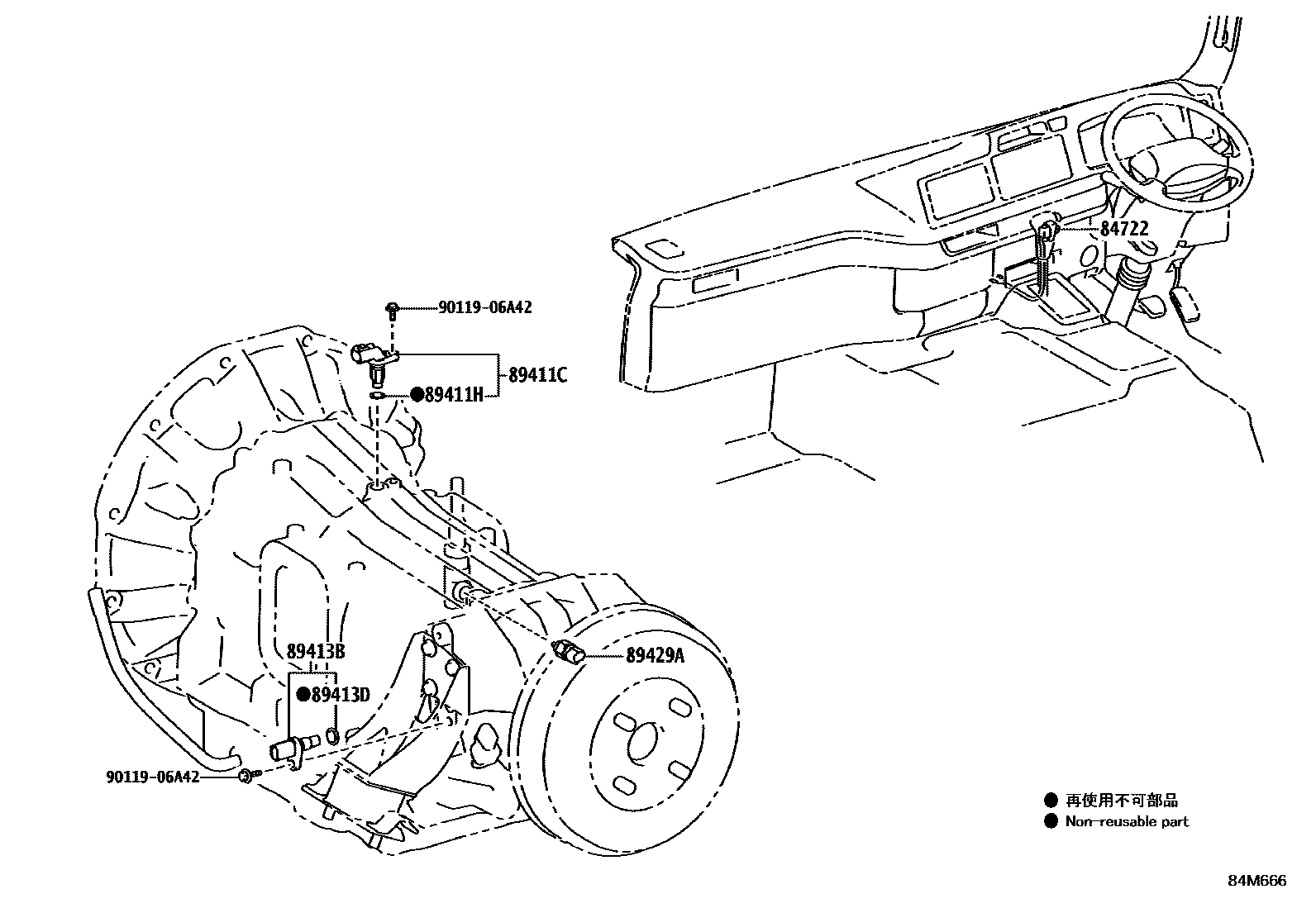

Toyota COASTER — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1A861E 0002 1AK60E

84722SWITCH, TRANSMISSION CONTROL

main84722-36040-C0iXZB60..09S;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202312

BLACK,TRIM1#

sub84722-36040¥2,680

main84722-36040-C0iXZB70..PREM202006-202201

BLACK,TRIM1#,2#

sub84722-36040¥2,680

main84722-36040-C0iXZB70..PREM202201-202312

BLACK,TRIM2#

sub84722-36040¥2,680

89411CSENSOR, SPEED

main89411-36010iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥4,010201701-202412

89411HRING, O

main90301-11008iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥160201701-202312

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-37010iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥3,170201701-202412

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥160201701-202312

89429ASENSOR, TEMPERATURE

main89429-37010iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥2,410201701-202412

9011906A42

main90119-06A42¥60

7 parts on this diagram · 2 diagrams in section
