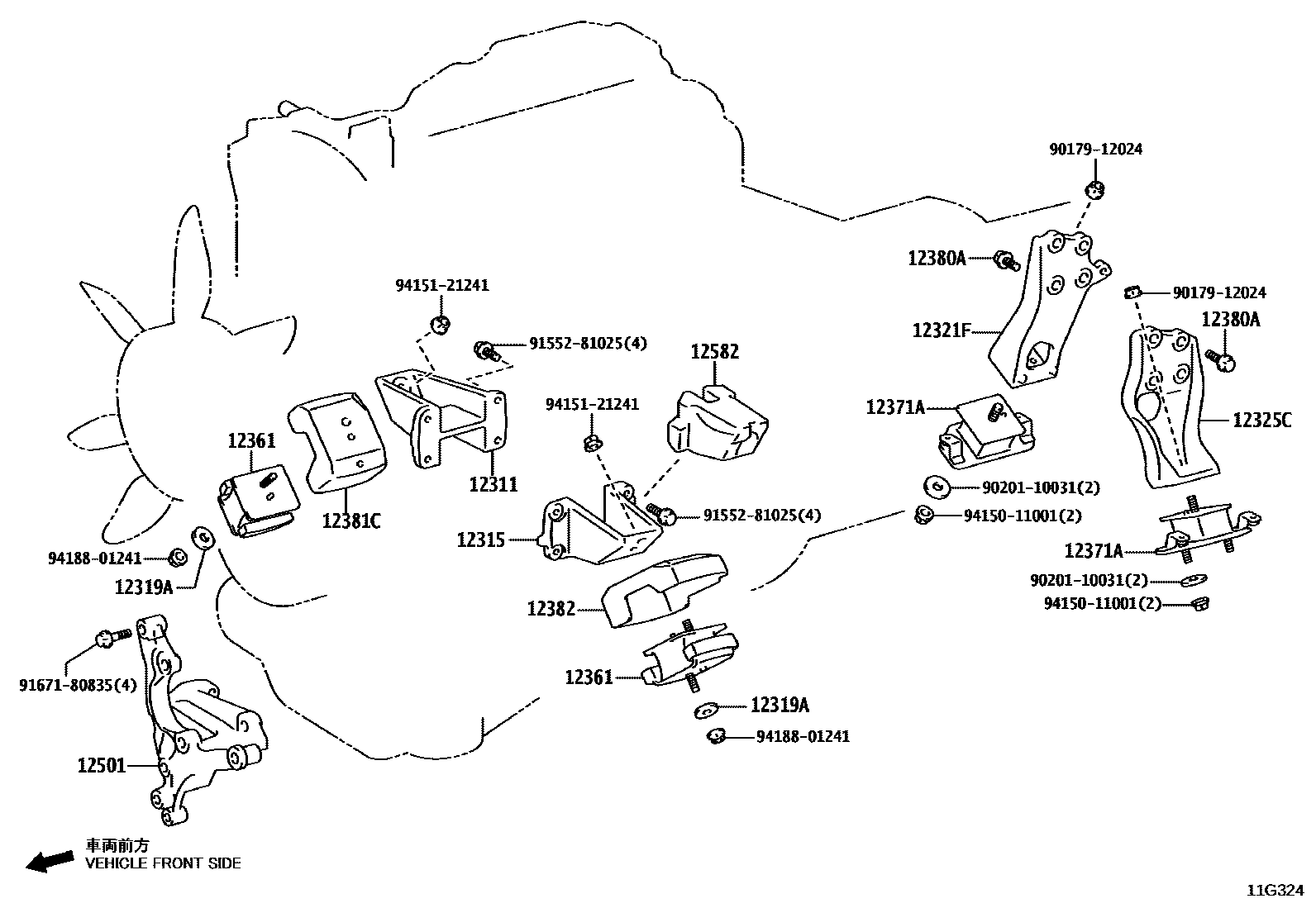

Toyota COASTER — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-11180i1GDFTV..GDB60,70,80202201-202412

main12311-E0180iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥9,300201701-202201

main12311-E0180iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥9,300202201-202312

main12311-E0180iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥9,300201701

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-11090i1GDFTV..GDB60,70,80202201-202412

main12315-E0100iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥8,700201701-202201

main12315-E0100iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥8,700201701

main12315-E0100iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥8,700202201-202312

12319ASPACER, ENGINE FRONT SUPPORT

main12319-51010i1GDFTV..GDB60,70,80¥240202201-202412

12321FBRACKET, ENGINE MOUNTING, REAR RH

main12321-78380iN04C..XZB60,70..5F¥2,870202201-202312

main12321-78380iN04C..XZB60,70..5F¥2,870201701-202201

main12321-78590iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥4,010201701

main12321-78590iN04C..XZB60..09S;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥4,010202201-202312

main12321-78590iN04C..XZB60..09S;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥4,010201701-202201

main12321-V4010i1GDFTV..GDB60,70,80202201-202412

12325CBRACKET, ENGINE MOUNTING, REAR LH

main12325-78360iN04C..XZB60,70..5F¥2,870202201-202312

main12325-78360iN04C..XZB60,70..5F¥2,870201701-202201

main12325-78550iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥4,010201701

main12325-78550iN04C..XZB60..09S;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥4,010201701-202201

main12325-78550iN04C..XZB60..09S;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥4,010202201-202312

main12325-V4010i1GDFTV..GDB60,70,80202201-202412

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-V4010i1GDFTV..GDB60,70,80202201-202412

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-78030iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥3,420201701-202201

main12371-78030iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥3,420201701

main12371-78030iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥3,420202201-202312

main12371-V4010i1GDFTV..GDB60,70,80202201-202412

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main91552-81230i1GDFTV..GDB60,70,80¥220202201-202412

12381CSTABILIZER, ENGINE MOUNTING, RH

main12381-78071iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥1,760201701-202201

main12381-78071iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥1,760201701

main12381-78071iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥1,760202201-202312

main12381-78071i1GDFTV..GDB60,70,80¥1,760202201-202412

12382STABILIZER, ENGINE MOUNTING, LH

main12382-78070iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥1,760201701-202201

main12382-78070iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥1,760201701

main12382-78070iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥1,760202201-202312

main12382-78070i1GDFTV..GDB60,70,80¥1,760202201-202412

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-11012i1GDFTV..GDB60,70,80¥5,700202201-202412

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-11010i1GDFTV..GDB60,70,80¥910202201-202412

9017912024

main90179-12024¥100

9020110031

main90201-10031¥230

9155281025

main91552-81025¥100

9167180835

main91671-80835¥100

9415011001

main94150-11001¥80

9415121241

main94151-21241¥100

9418801241

main94188-01241¥100

19 parts on this diagram · 2 diagrams in section
