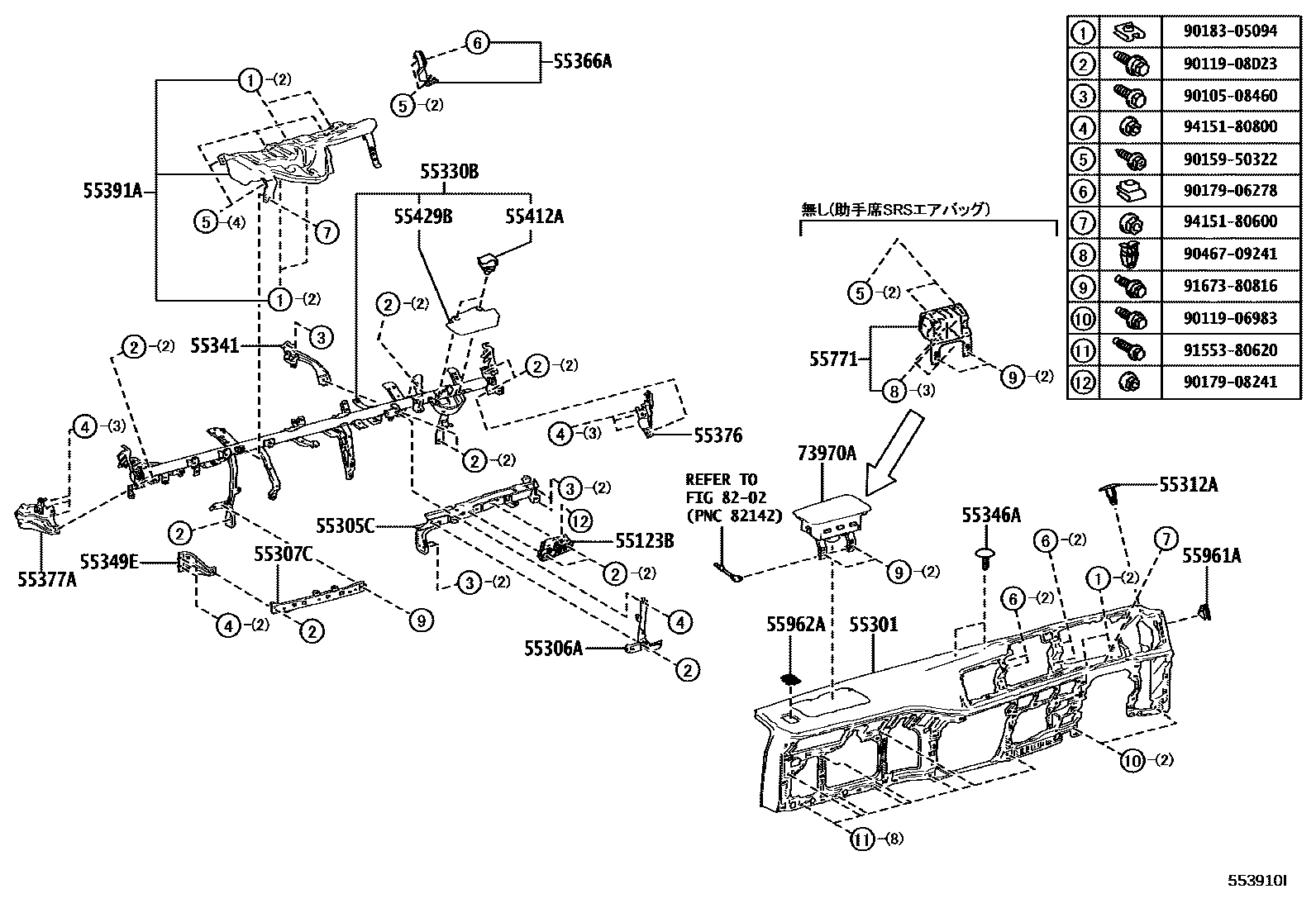

Toyota COASTER — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55123BREINFORCEMENT, STEERING SUPPORT

main55123-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,160201701-202201

main55123-36030iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,160202201-202312

main55123-36030iGDB60,70,80¥1,160202201-202412

main55123-36030iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥1,160201701

55301PANEL SUB-ASSY, INSTRUMENT

main55311-36080-B0iXZB60,70..S201701-202101

MD.GRAY,TRIM1#

main55311-36130-B0iXZB60,70..EX,GX,LX201701-201807

MD.GRAY,TRIM1#

main55311-36160-B0iXZB60..09S;XZB70..29S..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201807-202201

MD.GRAY,TRIM1#

main55311-36160-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR202201-202312

MD.GRAY,TRIM2#

main55311-36160-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR202201-202312

MD.GRAY,TRIM1#

main55311-36160-B0iGDB60,70,80..GX,LX202201-202412

MD.GRAY,TRIM1#

main55311-36160-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main55311-36160-B0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201807

MD.GRAY,TRIM1#

main55311-36180-B0iXZB70..S;XZB60..5F..S202101-202201

MD.GRAY,TRIM1#

main55311-36180-B0iGDB60..S202201-202412

MD.GRAY,TRIM1#

main55311-36180-B0iXZB60..6FC..S202101

MD.GRAY,TRIM1#

main55311-36180-B0iXZB70..S;XZB60..5F..S202201-202312

MD.GRAY,TRIM1#

55305CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-36050iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥5,800201701

main55305-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥5,800201701-202201

main55305-36050iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥5,800202201-202312

main55305-36050iGDB60,70,80¥5,800202201-202412

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-36050iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥1,350201701

main55306-36050iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,350202201-202312

main55306-36050iGDB60,70,80¥1,350202201-202412

main55306-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,350201701-202201

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-36050iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥1,740201701

main55307-36050iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,740202201-202312

main55307-36050iGDB60,70,80¥1,740202201-202412

main55307-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,740201701-202201

55312ACLIP, INSTRUMENT PANEL

main90467-07117iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥90201701

main90467-07117iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥90202201-202312

main90467-07117iGDB60,70,80¥90202201-202412

main90467-07117iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥90201701-202201

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-36010iXZB60,70¥16,500201701-201806

sub55330-36011¥16,500

main55330-36011iXZB60,70,80¥16,500201807-201910

main55330-36012iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥12,400201910-202201

main55330-36012iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥12,400201910

main55330-36012iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥12,400202201-202312

main55330-36012iGDB60,70,80¥12,400202201-202412

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-36010iGDB60,70,80¥1,300202201-202412

main55341-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,300201701-202201

main55341-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥1,300201701

main55341-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,300202201-202312

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-08186-C0iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201807-202201

BLACK

sub90467-08186¥120

main90467-08186-C0iXZB70..S;XZB60..5F..S202101-202201

BLACK

sub90467-08186¥120

main90467-08186-C0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201807

BLACK

sub90467-08186¥120

main90467-08186-C0iXZB60..6FC..S202101

BLACK

sub90467-08186¥120

main90467-08186-C3iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

BLACK

sub90467-08186¥120

main90467-08186-C3iGDB60,70,80202201-202412

BLACK

sub90467-08186¥120

55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER

main55349-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥980201701-202201

main55349-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥980201701

main55349-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥980202201-202312

main55349-36010iGDB60,70,80¥980202201-202412

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,090201701-202201

main55366-36020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥1,090201701

main55366-36020iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,090202201-202312

main55366-36020iGDB60,70,80¥1,090202201-202412

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,300201701-202201

main55376-36020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥1,300201701

main55376-36020iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥1,300202201-202312

main55376-36020iGDB60,70,80¥1,300202201-202412

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥990201701-202201

main55377-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥990201701

main55377-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥990202201-202312

main55377-36010iGDB60,70,80¥990202201-202412

55391APANEL, INSTRUMENT PANEL REINF, INNER NO.1

main55391-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥8,900201701-202201

main55391-36020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥8,900201701

main55391-36020iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥8,900202201-202312

main55391-36020iGDB60,70,80¥8,900202201-202412

55412ACLIP, PANEL, INSTRUMENT CLUSTER FINISH, END

main90467-08186-C3iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

BLACK

sub90467-08186¥120

main90467-08186-C3iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

BLACK

sub90467-08186¥120

main90467-08186-C3iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

BLACK

sub90467-08186¥120

main90467-08186-C3iGDB60,70,80202201-202412

BLACK

sub90467-08186¥120

55429BPROTECTOR, INSTRUMENT CLUSTER FINISH PANEL

main55429-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥140201701-202201

main55429-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥140201701

main55429-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥140202201-202312

main55429-36010iGDB60,70,80¥140202201-202412

55771BRACKET, INSTRUMENT PANEL, UPPER

main55771-36010iXZB70..S;XZB60..5F..S¥3,480201701-202201

main55771-36010iXZB60..6FC..S¥3,480201701

main55771-36010iXZB70..S;XZB60..5F..S¥3,480202201-202312

main55771-36010iGDB60..S¥3,480202201-202412

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-36040-B0iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202201

MD.GRAY,TRIM1#

main55961-36040-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main55961-36040-B0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

MD.GRAY,TRIM1#

main55961-36040-B0iXZB70..PREM202201-202312

MD.GRAY,TRIM2#

main55961-36040-B0iXZB70..PREM202201-202312

MD.GRAY,TRIM1#

main55961-36040-B0iGDB60,70,80202201-202412

MD.GRAY,TRIM1#

55962ANOZZLE, SIDE DEFROSTER, LH

main55962-36030-B0iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202201

MD.GRAY,TRIM1#

main55962-36030-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main55962-36030-B0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

MD.GRAY,TRIM1#

main55962-36030-B0iXZB70..PREM202201-202312

MD.GRAY,TRIM2#

main55962-36030-B0iXZB70..PREM202201-202312

MD.GRAY,TRIM1#

main55962-36030-B0iGDB60,70,80202201-202412

MD.GRAY,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-36010-B0iXZB60..09S;XZB70..29S..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

MD.GRAY,TRIM1#

main73970-36010-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main73970-36010-B0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201701

MD.GRAY,TRIM1#

main73970-36010-B0iXZB70..PREM202201-202312

MD.GRAY,TRIM2#

main73970-36010-B0iXZB70..PREM202201-202312

MD.GRAY,TRIM1#

main73970-36010-B0iGDB60,70,80..GX,LX202201-202412

MD.GRAY,TRIM1#

8202

9010508460

main90105-08460¥80

9011906983

main90119-06983¥60

9011908D23

main90119-08D23¥60

9015950322

main90159-50322¥70

9017906278

main90179-06278¥100

9017908241

main90179-08241¥80

9018305094

main90183-05094¥90

9046709241

main90467-09241¥80

9155380620

main91553-80620¥60

9167380816

main91673-80816¥80

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

33 parts on this diagram · 4 diagrams in section
