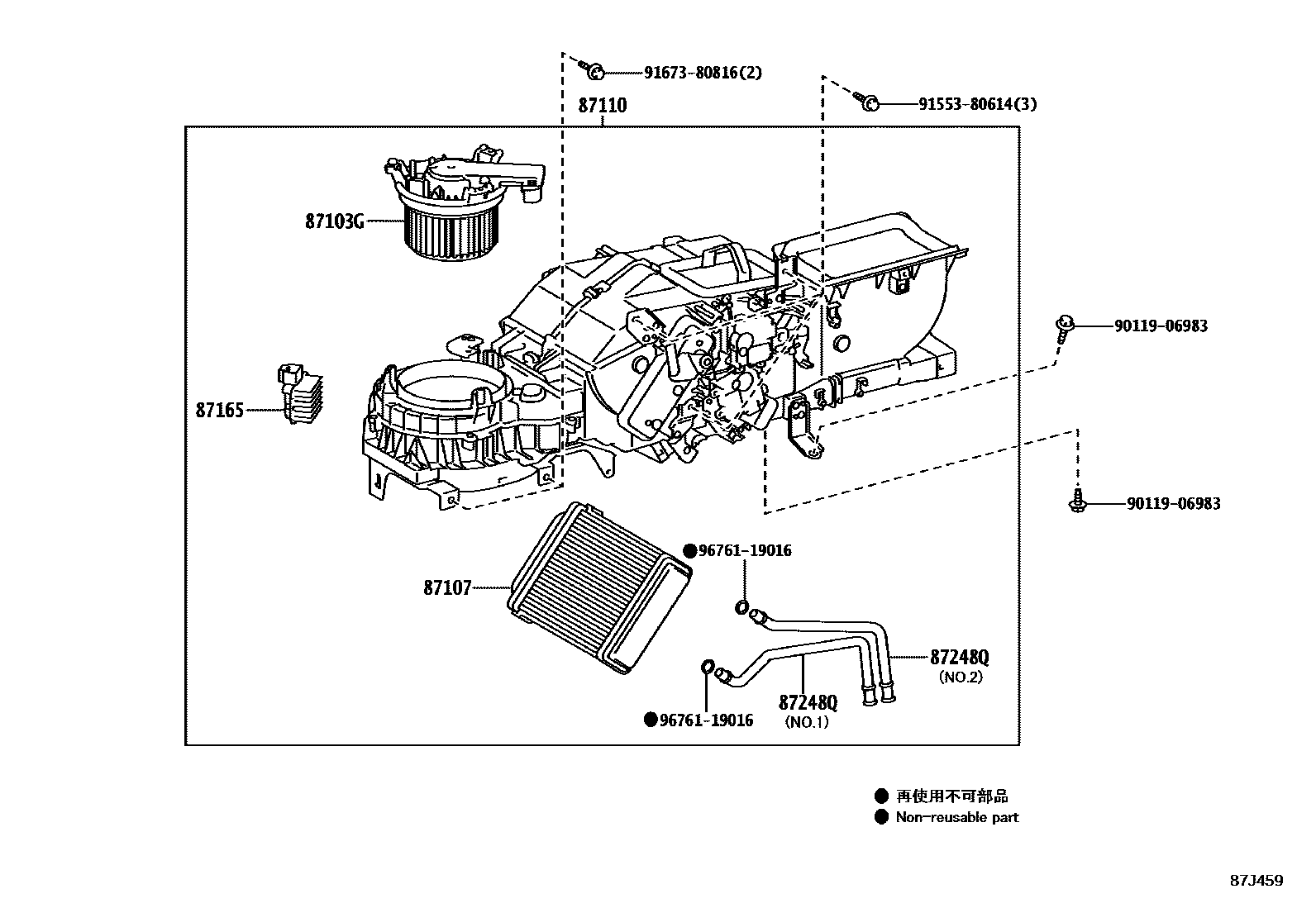

Toyota COASTER — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1����(���) 0002 1����(�����) 0003 1��(���) 0004 1��(���) 0005 1��(�����) 0006 1��(�����) 0007 1��(�����) 0008 1��(���) 0009 1��(�������) 0010 1��(�������) 0011 1��������

87103GCASE SUB-ASSY, FRONT HEATER BLOWER

main87103-36030iXZB60,70..LX,S201701-201908

sub87103-36050

sub87103-36H30

main87103-36040iXZB60,70..LX,S201701-201908

sub87103-36060

sub87103-36H20

main87103-36050iXZB70..(09S,24S)..6FC..LX;XZB60,80..(13S,25S,39S)..6FC..(LX,S)201908-202412

main87103-36060iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201908-202412

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-36091iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

87110HEATER ASSY

main87110-36A20iXZB60..09S;XZB60..5F..(LX,S);XZB70..(29S,49S)..(LX,S)201908-202412

main87110-36B40iXZB60,70..LX,S201701-201908

sub87110-36A20

sub87110-36H10

main87110-36B70iXZB60,70..EX,GX201701-201908

sub87110-36B80

sub87110-36H30

main87110-36B80iXZB60,70..(24S,25S)..6FC..GX201908-202412

87165CONTROL, BLOWER MOTOR, NO.1

main87165-36010iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202412

87248QPIPE, FRONT HEATER RADIATOR WATER

main87248-36550iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

main87248-36560iGDB60,70,80201701-202412

9011906983

main90119-06983¥60

9155380614

main91553-80614¥60

9167380816

main91673-80816¥80

9676119016

main96761-19016¥160

9 parts on this diagram · 11 diagrams in section
