Toyota COASTER — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1���� 0003 1���� 0004 1�������� 0005 1ECU 0006 1ECU 0007 1ECU 0008 1��������

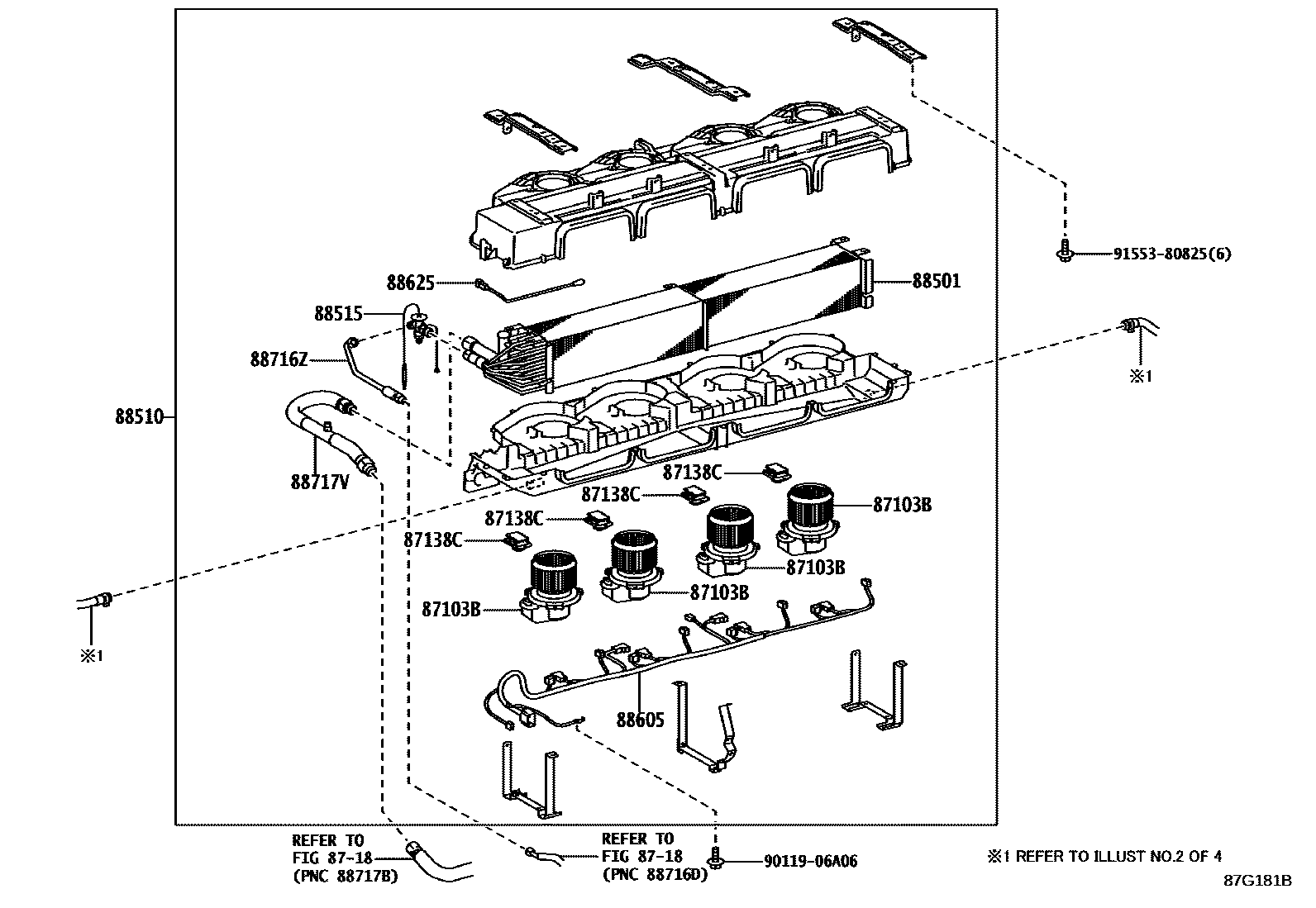

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-36010iXZB60,70,80201701-202105

sub87103-36011

main87103-36011iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202106-202412

87138CRESISTOR, BLOWER

main87138-41020iXZB70..(09S,24S)..6FC..LX;XZB60,80..(13S,25S,39S)..6FC..(LX,S)201701-202412

8718

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-36120iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202412

main88501-36130iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202412

88510UNIT ASSY, COOLER

main88510-36290iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202412

main88510-36300iGDB70..GX201701-202412

main88510-36310iGDB60..GX201701-202412

88515VALVE, COOLER EXPANSION

main88515-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥8,200201701-202412

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-36480iXZB70,80..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202412

main88605-36490iGDB60,70,80..LX,S201701-202412

88625THERMISTOR, COOLER, NO.1

main88625-36140iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

88716ZTUBE, LIQUID, NO.1

main88716-36B00iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,580201701-202412

88717VTUBE, SUCTION, NO.1

main88717-36510iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥7,500201701-202412

9011906A06

main90119-06A06¥60

9155380825

main91553-80825¥110

12 parts on this diagram · 8 diagrams in section
