Toyota COASTER — FRONT STEERING GEAR & LINK
04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
main04445-37040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥8,500201701-202412
44251ANUT, CASTLE(FOR PITMAN ARM)
main90170-30001iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥400201701-202412
44251DWASHER(FOR PITMAN ARM)
main90204-30040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥380201701-202412
45312BRACKET, STEERING GEAR HOUSING
main45312-36240iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥11,700201701-202412
45411ARM, PITMAN
main45411-36610iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥6,700201701-202412
9010114042
9010612005
9017012018
9017014026
9090101003
9090101004
9462211600
9462251400

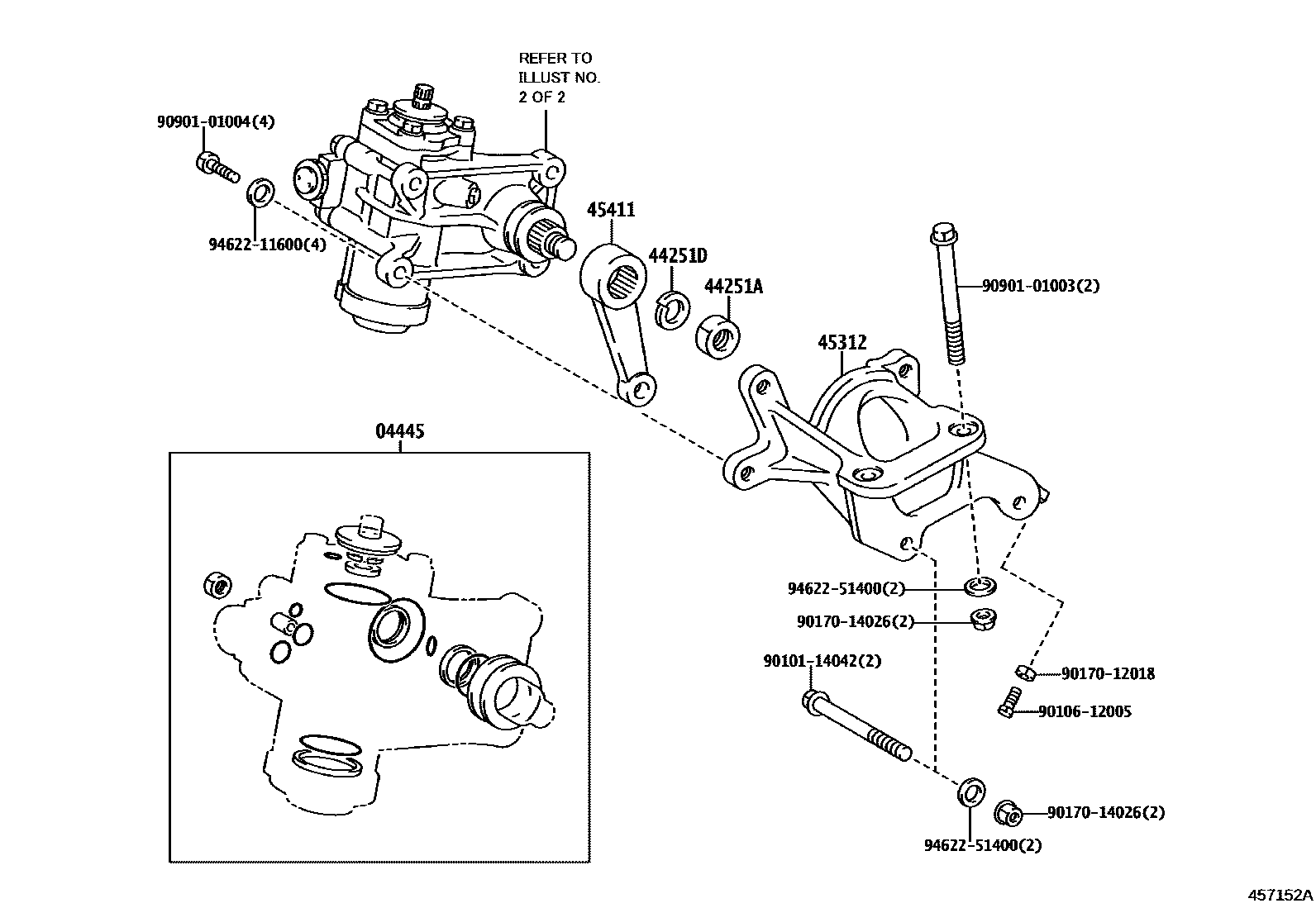

13 parts on this diagram · 3 diagrams in section
