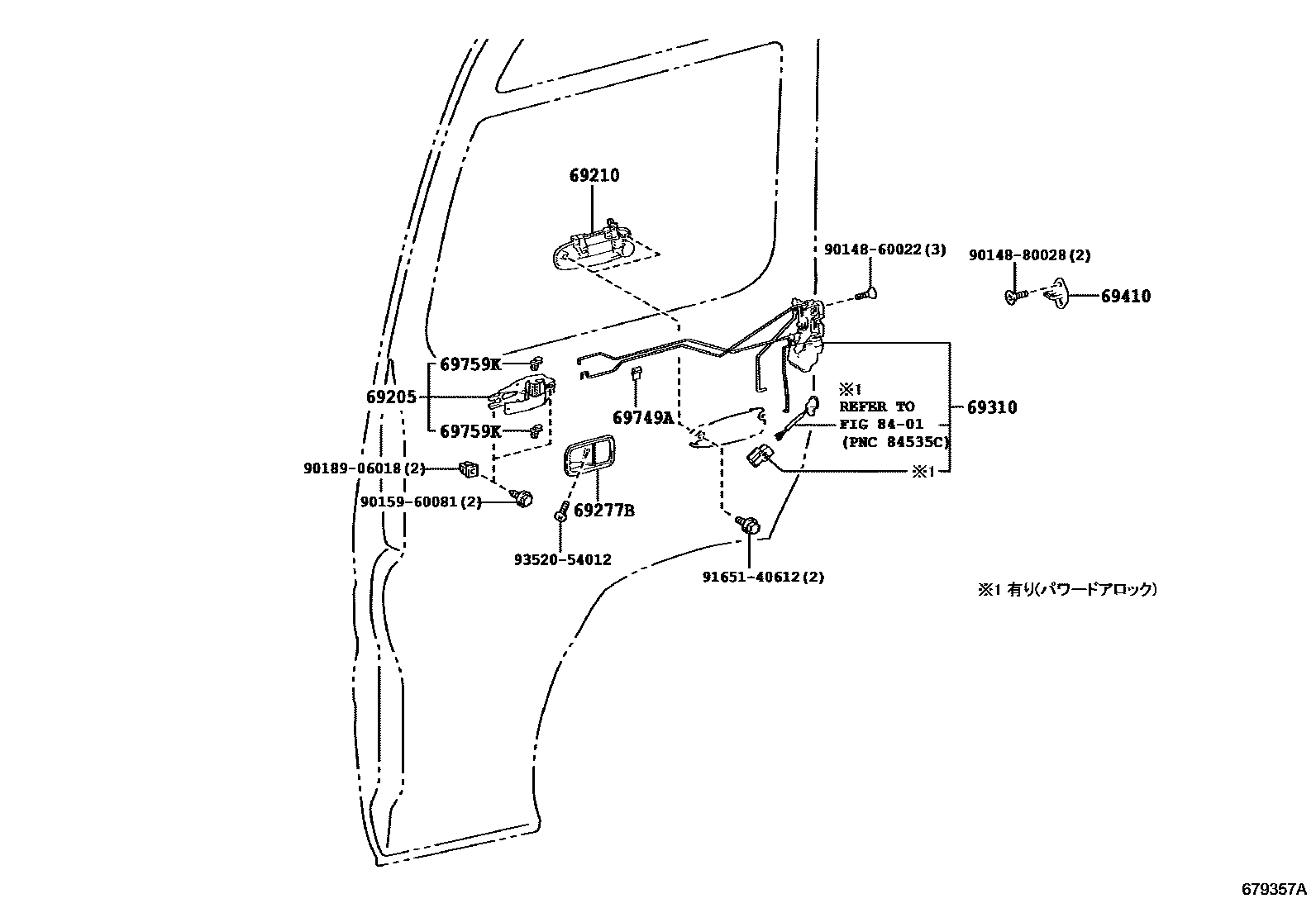

Toyota COASTER — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-60040-B2iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

MD.GRAY,TRIM1#

sub69205-60040¥3,040

main69205-60040-B2iXZB70..PREM202201-202312

MD.GRAY,TRIM2#

sub69205-60040¥3,040

main69205-60040-B2iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

sub69205-60040¥3,040

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥1,700201701-202412

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-60010-B1iXZB70..PREM201701-202412

MD.GRAY,TRIM1#

sub69277-60010¥840

main69277-60010-B1iXZB70..PREM202201-202312

MD.GRAY,TRIM2#

sub69277-60010¥840

main69277-60010-B1iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

sub69277-60010¥840

69310LOCK ASSY, FRONT DOOR, RH

main69030-36050iXZB60..09S;XZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR¥10,500201701-202412

main69310-36030iXZB60..6FC..S¥6,500201701-202312

main69310-36030iXZB60..6FC..S¥6,500201701-202312

main69310-36030iXZB60..6FC..S¥6,500201701-202201

main69310-36030iXZB70..S;XZB60..5F..S¥6,500202201-202412

main69310-36030iXZB70..S;XZB60..5F..S¥6,500202201-202412

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥710201701-202412

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥140201701-202412

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-24070iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥180201701-202412

8401

9014860022

main90148-60022¥60

9014880028

main90148-80028¥60

9015960081

main90159-60081¥70

9018906018

main90189-06018¥80

9165140612

main91651-40612¥70

9352054012

main93520-54012¥70

14 parts on this diagram · 1 diagram in section
