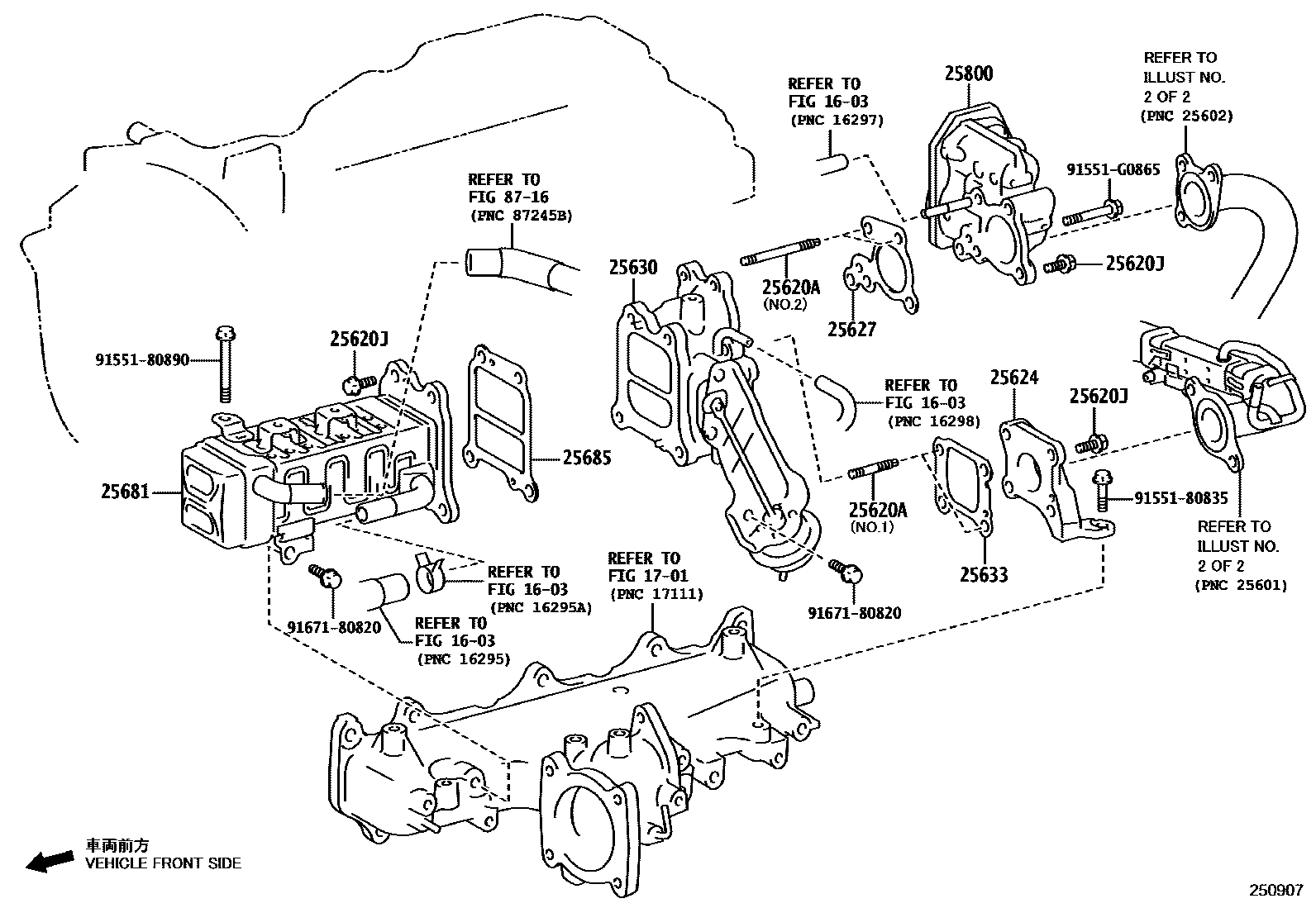

Toyota COASTER — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603

1701

25620VALVE ASSY, EGR

main25620-78090iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥36,800202201-202312

main25620-78090iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥36,800201908-202201

main25620-78090iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥36,800201908

main25620-E0262iN04C..XZB60,70¥58,200201701-201707

sub25620-E0263¥48,500

main25620-E0263iN04C..XZB60,70¥48,500201708-201807

sub25620-E0264¥36,800

main25620-E0264iN04C..XZB60,70¥36,800201808-201908

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i1GDFTV..GDB60,70,80¥80202201-202412

�m�n�D�P

main90126-08064i1GDFTV..GDB60,70,80¥120202201-202412

�m�n�D�Q

25620JBOLT(FOR EGR VALVE)

main91671-80825i1GDFTV..GDB60,70,80¥80202201-202412

25624ADAPTER, EGR VALVE

main25624-11010i1GDFTV..GDB60,70,80¥2,240202201-202412

25627GASKET, EGR VALVE

main25627-11050i1GDFTV..GDB60,70,80¥270202201-202412

main25627-E0130iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥180201701

�m�n�D�P�F�C���X�g�Q��

main25627-E0130iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥180201701-202201

�m�n�D�P�F�C���X�g�Q��

main25627-E0130iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥180202201-202312

�m�n�D�P�F�C���X�g�Q��

main25627-E0140iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥300202201-202312

�m�n�D�Q�F�C���X�g�Q��

main25627-E0140iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥300201701-202201

�m�n�D�Q�F�C���X�g�Q��

main25627-E0140iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR¥300201701

�m�n�D�Q�F�C���X�g�Q��

25630VALVE ASSY, EGR, NO.2

main25630-11040i1GDFTV..GDB60,70,80¥35,100202201-202202

sub25630-11041¥31,900

main25630-11041i1GDFTV..GDB60,70,80¥31,900202203-202412

25633GASKET, EGR VALVE

main25633-11010i1GDFTV..GDB60,70,80¥410202201-202412

25681COOLER, EGR, NO.1

main25681-0W030i1GDFTV..GDB60,70,80¥32,400202201-202412

25685GASKET, EGR COOLER, NO.1

main25685-11010i1GDFTV..GDB60,70,80¥410202201-202412

mainS171042020iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

mainS171042020iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701

mainS171042020iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-11010i1GDFTV..GDB60,70,80¥20,200202201-202412

8716

9155180835

main91551-80835¥80

9155180890

main91551-80890¥120

91551G0865

main91551-G0865¥100

9167180820

main91671-80820¥80

17 parts on this diagram · 3 diagrams in section
