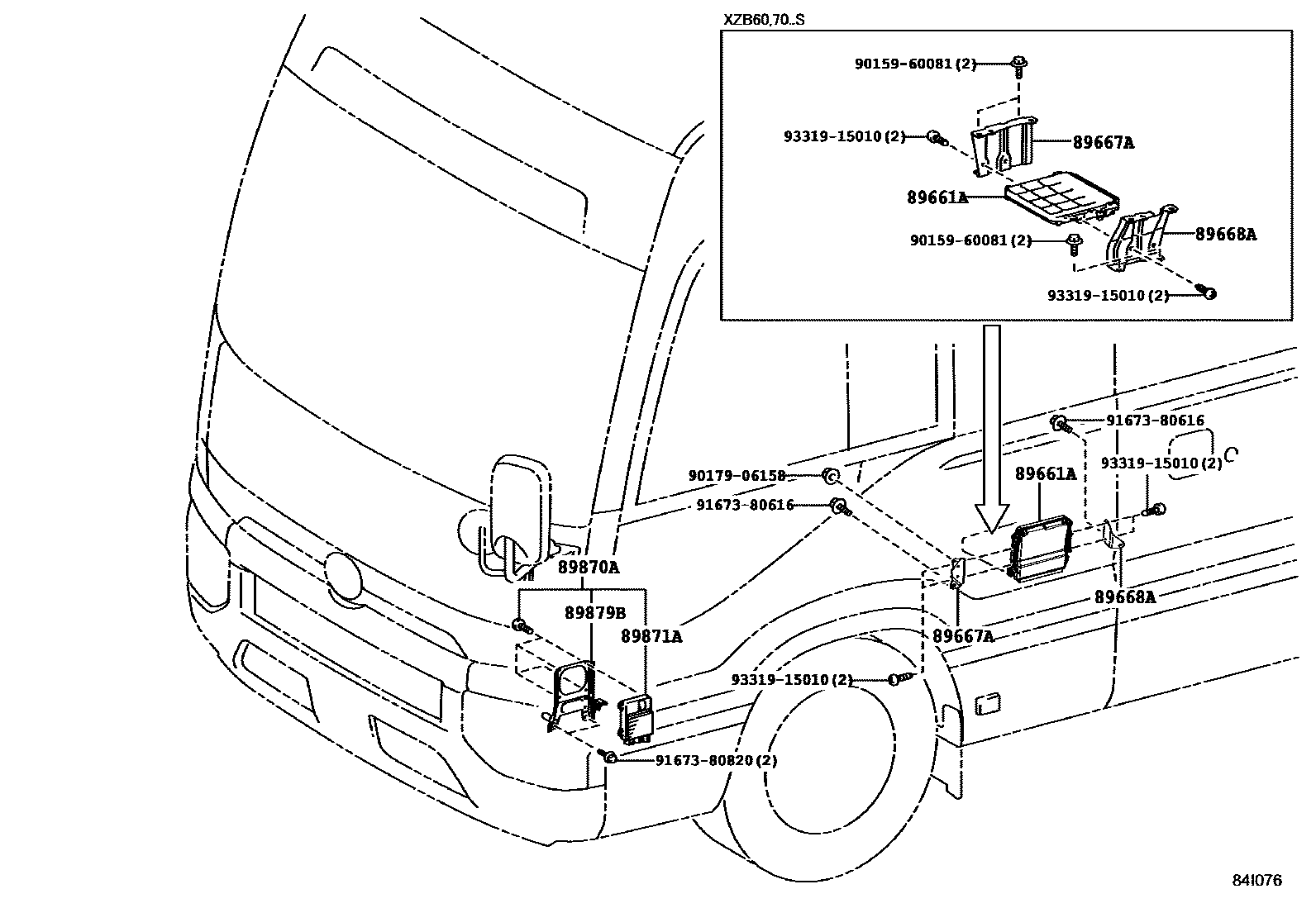

Toyota COASTER — ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1

89661ACOMPUTER, ENGINE CONTROL

main89661-36630iXZB60,70..5F..S¥67,900201701-201810

sub89661-36631¥67,900

main89661-36631iXZB60,70..5F..S¥67,900201810-201908

main89661-36640iXZB60,70..6FC..S¥67,900201701-201808

sub89661-36641¥67,900

main89661-36641iXZB60,70..6FC..S¥67,900201808-201908

main89661-36670iXZB70..HDCR¥67,900201701-201807

sub89661-36671¥67,900

main89661-36820iXZB60,70..5F..(EX,GX,LX)¥67,900201807-201808

sub89661-36821¥67,900

main89661-36821iXZB60,70..5F..(EX,GX,LX)¥67,900201808-201908

main89661-36830iXZB60,70..6FC..(GX,LX)..DCR¥67,900201807-201808

sub89661-36831¥67,900

main89661-36831iXZB60,70..6FC..(GX,LX)..DCR¥67,900201808-201908

main89661-36840iXZB70..HDCR¥67,900201807-201808

sub89661-36841¥67,900

main89661-36841iXZB70..HDCR¥67,900201808-201908

main89661-36850iXZB60,70,80..DCR¥67,900201908-202002

sub89661-V4010¥67,900

main89661-36860iXZB70,80..HDCR¥67,900201908-202002

sub89661-V4020¥67,900

main89661-36A70iXZB70..PREM¥67,800202006-202010

sub89661-V4070¥67,800

main89661-36A80iXZB60,70,80..DCR¥56,500202101-202102

sub89661-V4080¥56,500

main89661-36A90iXZB70,80..(EX,GX)..HDCR¥56,500202101-202103

main89661-36B00iXZB70..PREM¥56,500202101-202103

main89661-36B30iGDB60,70,80¥56,500202201-202303

main89661-36B31iGDB60,70,80¥56,500202303-202412

main89661-V4010iXZB60,70,80..DCR¥67,900202002-202012

sub89661-V4011¥67,800

main89661-V4011iXZB60,70,80..DCR¥67,800202012-202101

main89661-V4020iXZB70,80..(EX,GX)..HDCR¥67,900202002-202011

sub89661-V4021¥67,800

main89661-V4021iXZB70,80..(EX,GX)..HDCR¥67,800202011-202012

sub89661-V4022¥67,800

main89661-V4022iXZB70,80..(EX,GX)..HDCR¥67,800202012-202101

main89661-V4040iXZB60,70..5F¥56,500202201-202204

main89661-V4041iXZB60,70..5F¥56,500202204-202312

main89661-V4070iXZB70..PREM¥67,800202010-202012

sub89661-V4071¥67,800

main89661-V4071iXZB70..PREM¥67,800202012-202101

main89661-V4080iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC..DCR¥56,500202103-202204

sub89661-V4081¥56,500

main89661-V4081iXZB60..09S;XZB70..(29S,49S)..6FC..DCR¥56,500202204-202312

main89661-V4090iXZB70,80..(EX,GX)..HDCR¥56,500202103-202204

sub89661-V4091¥56,500

main89661-V4091iXZB70,80..(EX,GX)..HDCR¥56,500202204-202312

main89661-V4100iXZB70..PREM¥56,500202103-202204

sub89661-V4101¥56,500

main89661-V4101iXZB70..PREM¥56,500202204-202312

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-36130iXZB60,70..S¥1,390201701-201908

main89667-36190iXZB60,70..EX,GX,LX¥0201701-201908

main89667-36210iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR¥600201908-202312

main89667-36230iXZB70..S;XZB60..5F..S¥1,150201908-202312

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-36130iXZB60,70..S¥1,280201701-201908

main89668-36180iXZB60,70..EX,GX,LX¥0201701-201908

main89668-36200iXZB60..09S;XZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR¥550201908-202312

main89668-36220iXZB60..6FC..S¥1,610201908-202312

main89668-36230iGDB60,70,80..GX,LX¥550202201-202412

main89668-36250iGDB60..S¥1,140202201-202412

89870ADRIVER ASSY, INJECTOR

main89870-36070iXZB60,70¥31,600201701-201908

89871ADRIVER, INJECTOR

main89871-25010iXZB60,70¥23,000201701-201908

89879BBRACKET, INJECTOR DRIVER

main89879-36040iXZB60,70¥1,020201701-201908

9015960081

main90159-60081¥70

9017906158

main90179-06158¥70

9167380616

main91673-80616¥60

9167380820

main91673-80820¥80

9331915010

main93319-15010¥70

11 parts on this diagram · 3 diagrams in section
