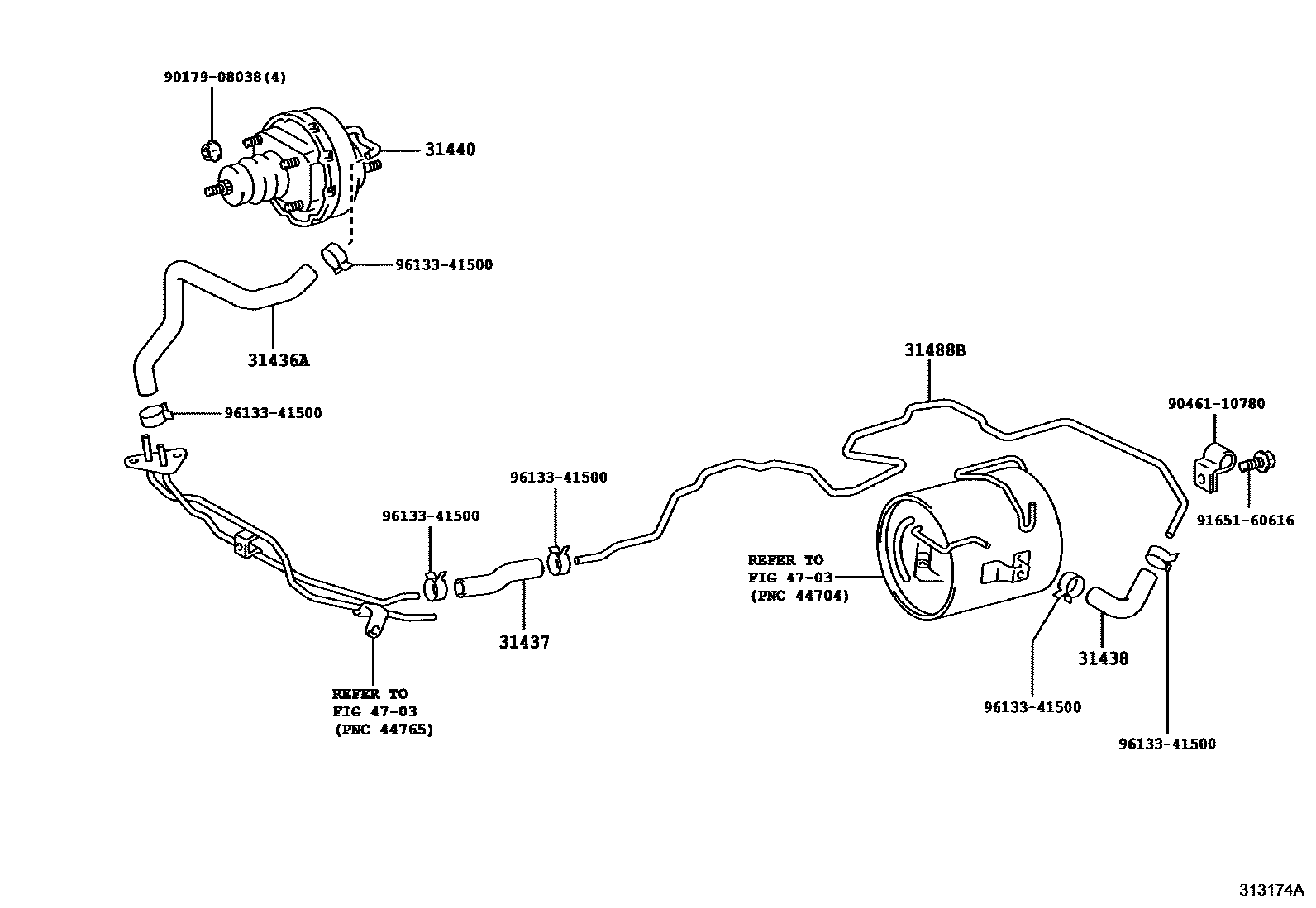

Toyota COASTER — CLUTCH BOOSTER

31436AHOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)

main31436-36121iXZB60,70..5F¥1,850201701-202312

31437HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM)

main90445-17141iXZB60,70..5F¥320201701-202312

31438HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM)

main44775-36100iXZB60,70..5F¥590201701-202312

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-36080iXZB60,70..5F¥32,200201701-202312

31488BTUBE, VACUUM HOSE TO VACUUM HOSE

main31488-36820iXZB60,70..5F¥2,700201701-202312

4703

9017908038

main90179-08038¥130

9046110780

main90461-10780¥200

9165160616

main91651-60616¥100

9613341500

main96133-41500¥140

10 parts on this diagram · 1 diagram in section
