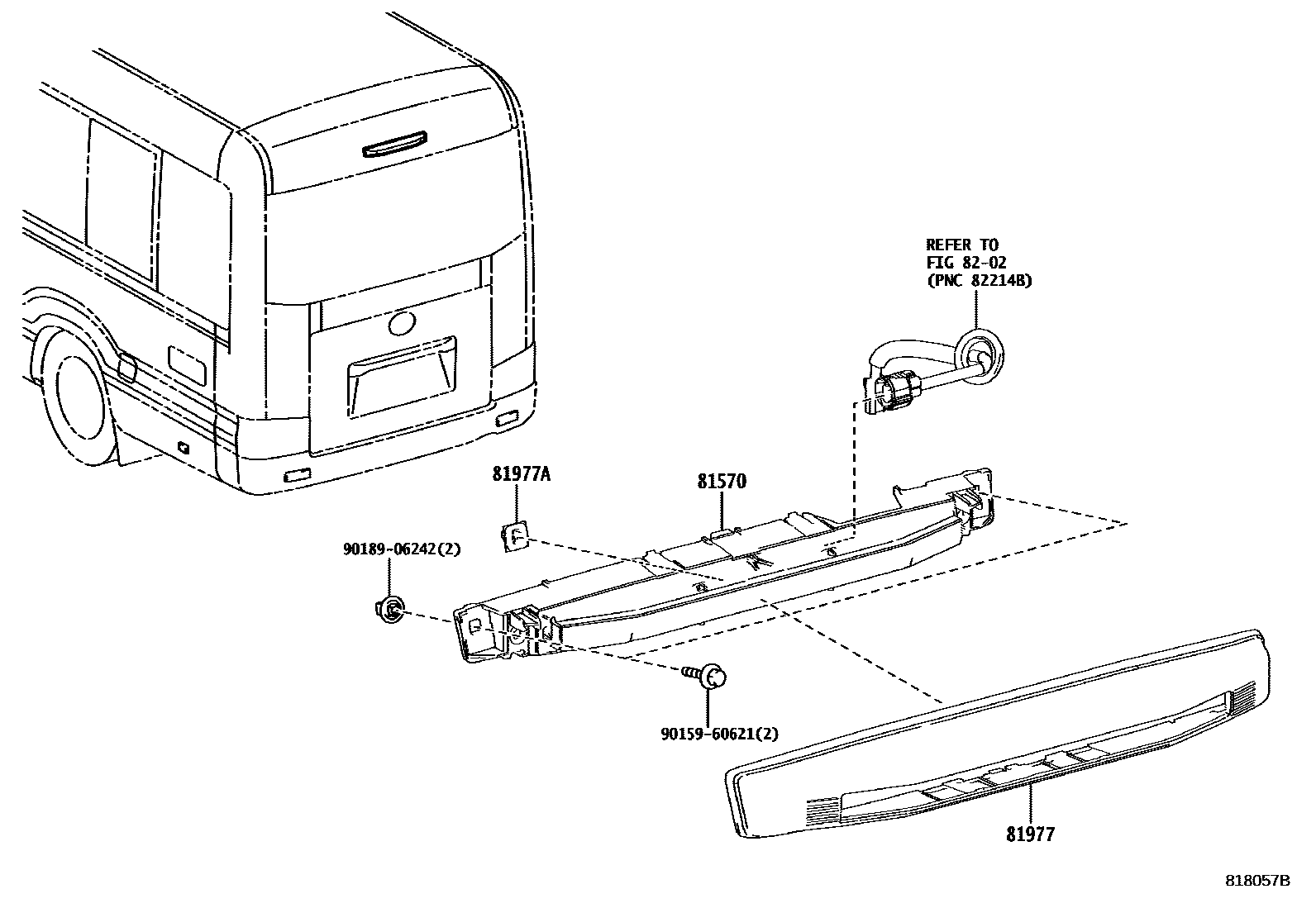

Toyota COASTER — CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥5,200201701-202412

81977COVER, CENTER STOP LAMP

main81977-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥3,150201701-202412

81977ACLIP (FOR CENTER STOP LAMP)

main76817-26040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥110201701-202412

8202

9015960621

main90159-60621¥60

9018906242

main90189-06242¥70

6 parts on this diagram · 1 diagram in section
