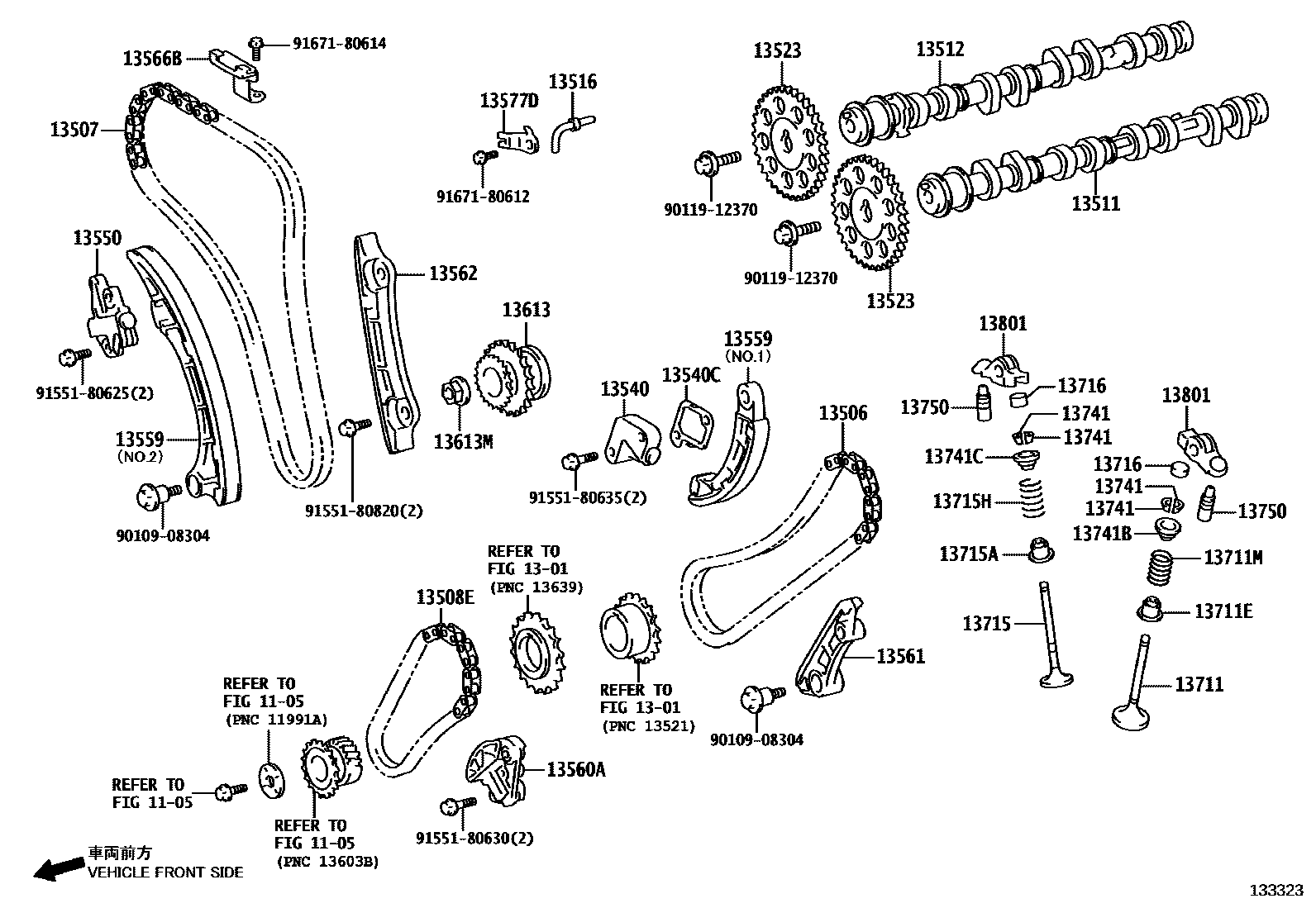

Toyota COASTER — CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1105

1301

13506CHAIN SUB-ASSY

main13506-11011i1GDFTV..GDB60,70,80¥4,950202201-202412

13507CHAIN SUB-ASSY, NO.2

main13507-11011i1GDFTV..GDB60,70,80¥9,400202201-202412

13508ECHAIN SUB-ASSY, NO.3

main13508-11011i1GDFTV..GDB60,70,80¥4,310202201-202412

13511CAMSHAFT

main13501-11070i1GDFTV..GDB60,70,80¥27,000202201-202412

13512CAMSHAFT, NO.2

main13502-11070i1GDFTV..GDB60,70,80¥27,000202201-202412

13516JET, OIL

main13516-11010i1GDFTV..GDB60,70,80¥360202201-202412

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-11030i1GDFTV..GDB60,70,80¥2,530202201-202412

13540TENSIONER ASSY, CHAIN, NO.1

main13540-11010i1GDFTV..GDB60,70,80¥2,460202201-202412

13540CGASKET(FOR CHAIN TENSIONER)

main13552-11010i1GDFTV..GDB60,70,80¥270202201-202412

13550TENSIONER ASSY, CHAIN, NO.2

main13550-11010i1GDFTV..GDB60,70,80¥2,590202201-202412

13559SLIPPER, CHAIN TENSIONER

main13559-11010i1GDFTV..GDB60,70,80¥2,480202201-202412

main13559-11020i1GDFTV..GDB60,70,80¥2,480202201-202412

13560ATENSIONER ASSY, CHAIN, NO.3

main13560-11011i1GDFTV..GDB60,70,80¥6,600202201-202412

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-11011i1GDFTV..GDB60,70,80¥820202201-202412

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-11010i1GDFTV..GDB60,70,80¥1,060202201-202412

13566BGUIDE, TIMING CHAIN

main13566-11030i1GDFTV..GDB60,70,80¥490202201-202412

13577DPLATE, LOCK

main13577-11010i1GDFTV..GDB60,70,80¥180202201-202412

mainS136451081iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

13613GEAR, INJECTION PUMP DRIVE

main13613-78152iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC¥3,340201908-202312

main13613-E0170iN04C..XZB60,70¥4,850201701-201908

main13616-0E011i1GDFTV..GDB60,70,80¥2,240202201-202412

main13616-11020i1GDFTV..GDB60,70,80¥2,600202201-202412

13613MNUT(FOR INJECTION PUMP DRIVE GEAR)

main90179-18021i1GDFTV..GDB60,70,80¥260202201-202412

13711VALVE, INTAKE

main13711-11030i1GDFTV..GDB60,70,80¥1,210202201-202412

mainS137111800iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02130i1GDFTV..GDB60,70,80¥300202201-202412

mainS137191470iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701-202312

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-29063i1GDFTV..GDB60,70,80¥180202201-202412

mainS137311690iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

13715VALVE, EXHAUST

main13715-11050i1GDFTV..GDB60,70,80¥1,730202201-202412

mainS137151870iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02130i1GDFTV..GDB60,70,80¥300202201-202412

mainS137191470iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-29063i1GDFTV..GDB60,70,80¥180202201-202412

mainS137311690iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202312

13716CAP, VALVE STEM

main13716-33010i1GDFTV..GDB60,70,80¥70202201-202412

13741RETAINER, VALVE SPRING

main90913-03021i1GDFTV..GDB60,70,80¥180202201-202412

13741BRETAINER, INTAKE VALVE SPRING

main13741-33020i1GDFTV..GDB60,70,80¥200202201-202412

13741CRETAINER, EXHAUST VALVE SPRING

main13741-33020i1GDFTV..GDB60,70,80¥200202201-202412

13750ADJUSTER ASSY, VALVE LASH

main13750-26010i1GDFTV..GDB60,70,80¥4,310202201-202412

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-11012i1GDFTV..GDB60,70,80¥2,090202201-202412

main13811-78030iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR¥2,600201905-202312

main13811-E0190iN04C..XZB60,70¥2,450201701-201905

9010908304

main90109-08304¥120

9011912370

main90119-12370¥240

9155180625

main91551-80625¥60

9155180630

main91551-80630¥60

9155180635

main91551-80635¥80

9155180820

main91551-80820¥80

9167180612

main91671-80612¥60

9167180614

main91671-80614¥60

40 parts on this diagram · 3 diagrams in section
