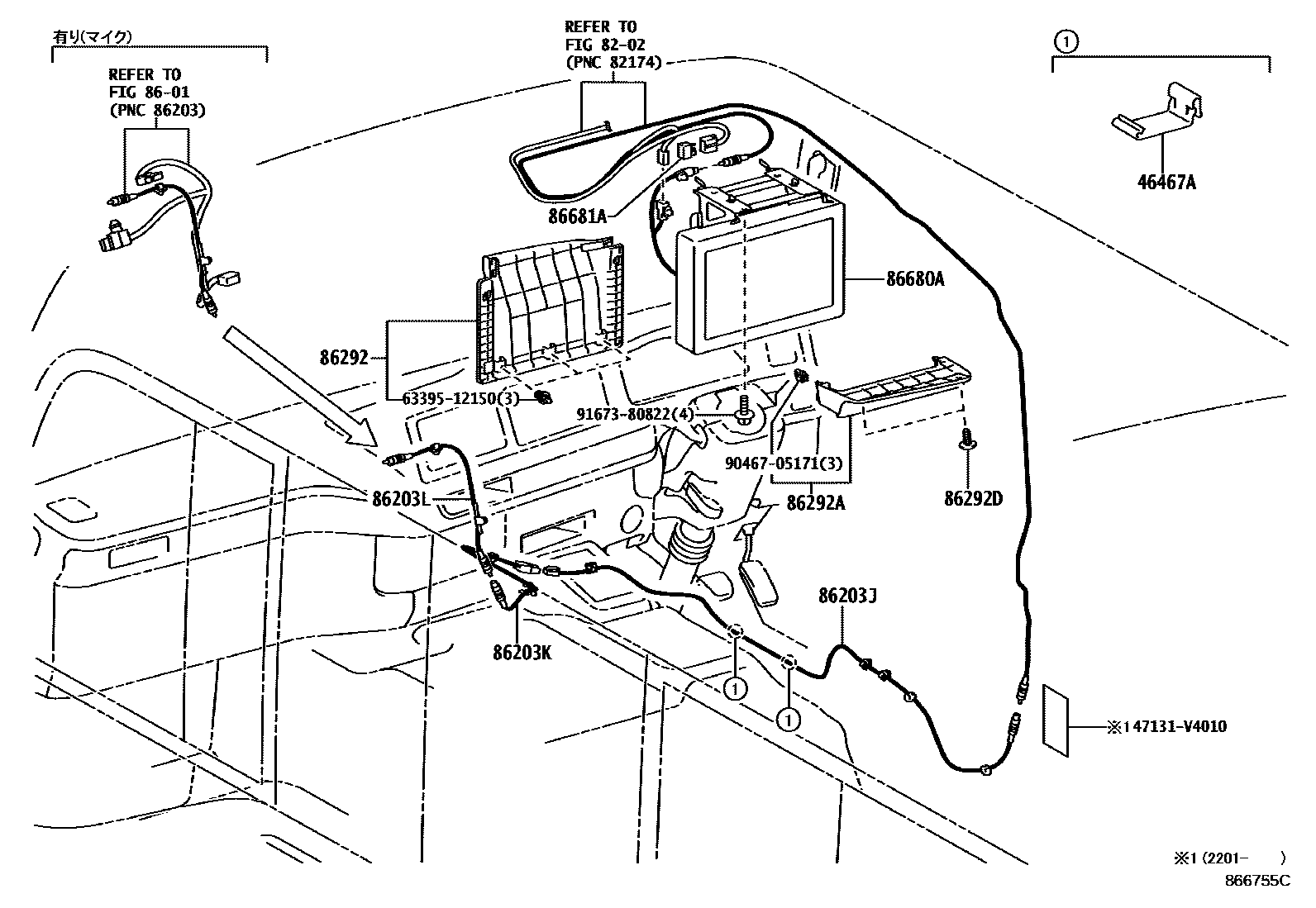

Toyota COASTER — CAMERA & REAR MONITOR DISPLAY

0001 1���������� & ����� 0002 1�����

46467ACLAMP, CABLE, RH

8202

8601

86203JWIRING SUB-ASSY, TELEVISION, NO.1

86203KWIRING SUB-ASSY, TELEVISION, NO.2

86203LWIRING SUB-ASSY, TELEVISION, NO.3

86292COVER, TELEVISION SET

main86292-36040¥2,880

main86292-36050¥5,200

main90467-05101¥140

86292ACOVER, TELEVISION SET

86292DCLIP(FOR TELEVISION SET COVER)

86680ADISPLAY ASSY, TELEVISION

86681ARELAY, TELEVISION

47131V4010CUSHION(FOR STOP LAMP SWITCH)

main47131-V4010

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150¥170

9046705171

main90467-05171¥60

9167380822

main91673-80822¥80

15 parts on this diagram · 2 diagrams in section
