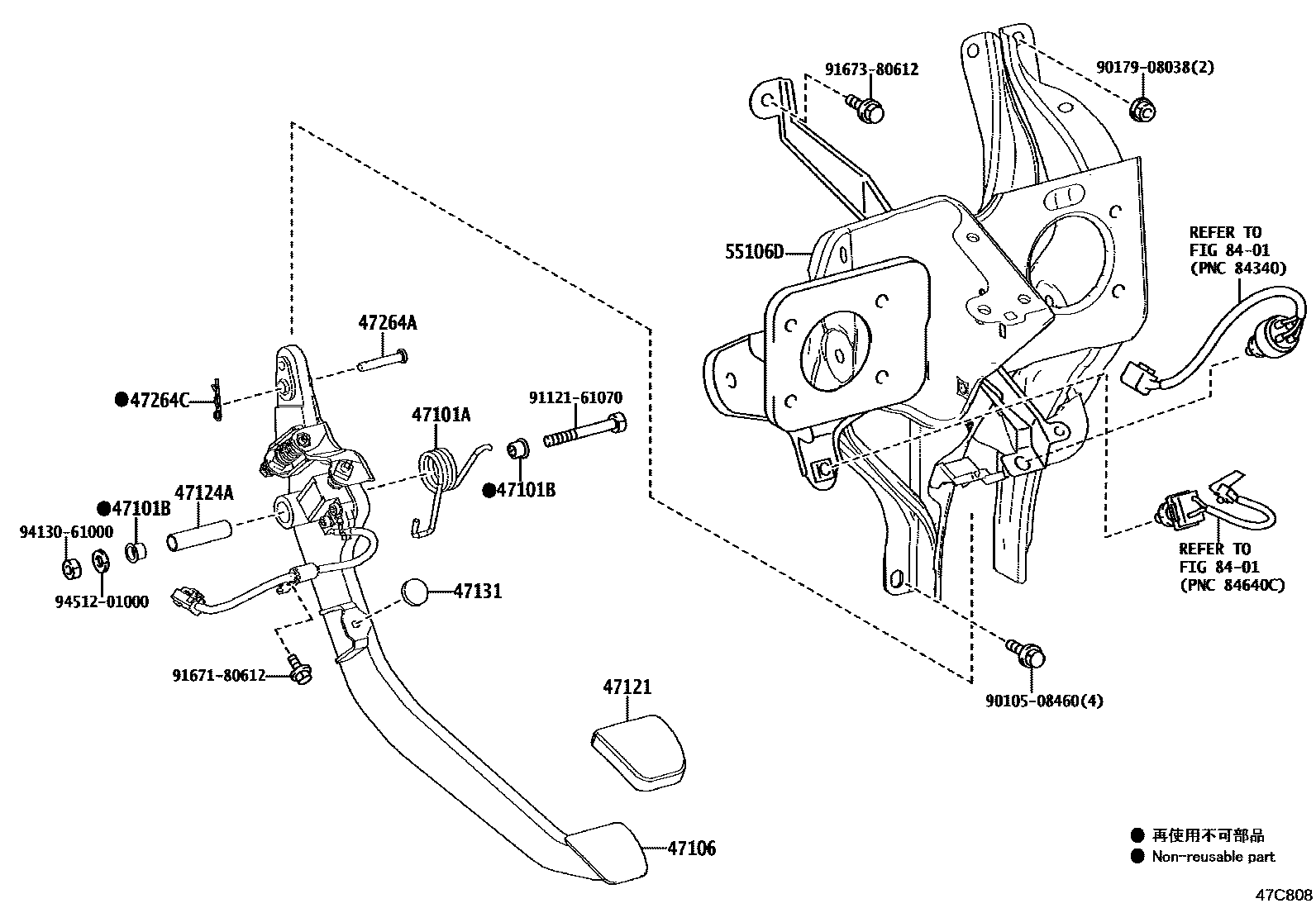

Toyota COASTER — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35322iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥200201701

main90508-35322iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥200202201-202312

main90508-35322iGDB60,70,80¥200202201-202412

main90508-35322iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥200201701-202201

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥160201701-202201

main90386-13007iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥160201701

main90386-13007iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥160202201-202312

main90386-13007iGDB60,70,80¥160202201-202412

47106PEDAL SUB-ASSY, BRAKE W/SWITCH

main47106-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥4,640201701-202201

main47106-36010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥4,640201701

main47106-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥4,640202201-202312

main47106-36010iGDB60,70,80¥4,640202201-202412

47121PAD, BRAKE PEDAL

main31321-14020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥200201701-202201

main31321-14020iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥200201701

main31321-14020iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥200202201-202312

main31321-14020iGDB60,70,80¥200202201-202412

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iGDB60,70,80¥210202201-202412

main90387-10004iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥210201701-202201

main90387-10004iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥210201701

main90387-10004iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥210202201-202312

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥110201701

main90541-06036iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥110201701-202201

main90541-06036iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥110202201-202312

main90541-06036iGDB60,70,80¥110202201-202412

47264APIN(FOR PUSH ROD)

main90240-06028iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥90201701-202201

main90240-06028iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥90201701

main90240-06028iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥90202201-202312

main90240-06028iGDB60,70,80¥90202201-202412

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-07027iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥60201701

main90468-07027iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥60201701-202201

main90468-07027iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR¥60202201-202312

main90468-07027iGDB60,70,80¥60202201-202412

55106DBRACKET SUB-ASSY, PEDAL

main55106-36100iXZB60,70..5F¥13,600201701-202201

main55106-36100iXZB60,70..5F¥13,600202201-202312

main55106-36160iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥14,900201701-202201

main55106-36160iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR¥14,900201701

main55106-36160iXZB60..09S;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥14,900202201-202312

main55106-36160iGDB60,70,80¥14,900202201-202412

8401

9010508460

main90105-08460¥80

9017908038

main90179-08038¥130

9112161070

main91121-61070¥160

9167180612

main91671-80612¥60

9167380612

main91673-80612¥60

9413061000

main94130-61000¥70

9451201000

main94512-01000¥90

17 parts on this diagram · 2 diagrams in section
