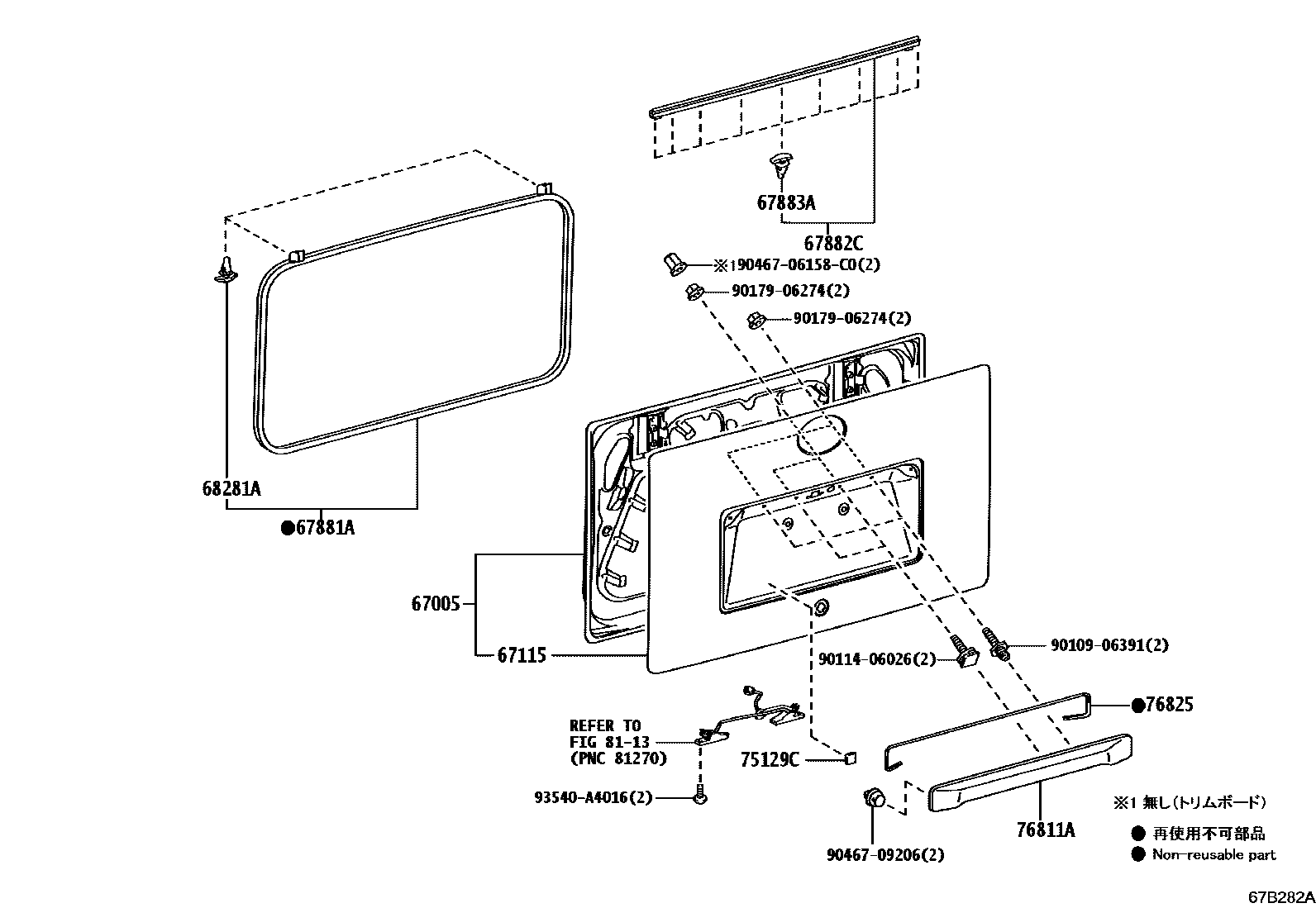

Toyota COASTER — BACK DOOR PANEL & GLASS

0001 1���������(����) 0002 1���������(���) 0003 1���������������(����) 0004 1���������������(�����������) 0005 1���������������(���)

67005PANEL SUB-ASSY, BACK DOOR

main67008-36070iGDB70..24S¥48,700202401-202412

main67008-36080iXZB60..25S..6FC¥48,700201701-202201

main67008-36080iXZB60..25S..6FC¥48,700201701-202201

main67008-36080iXZB70..29S;XZB60..25S..5F¥48,700202201-202401

67115PANEL, BACK DOOR, OUTER

main67118-36050iGDB70..24S¥19,500202401-202412

main67118-36060iXZB60..25S..6FC¥19,500201701-202201

main67118-36060iXZB70..29S;XZB60..25S..5F¥19,500201701-202201

main67118-36060iXZB70..29S;XZB60..25S..5F¥19,500202201-202401

67881AWEATHERSTRIP, BACK DOOR

main67881-36050iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,39S)..6FC..DCR¥8,700201701-202412

main67881-36060iXZB60..25S..6FC¥6,500201701-202201

main67881-36060iXZB70..29S;XZB60..25S..5F¥6,500202201-202412

67882CWEATHERSTRIP, BACK DOOR, NO.2

main67882-36040iXZB60..09S;XZB80..HDCR;XZB60,70..(24S,39S,49S)..5F;XZB70..(21S,24S,49S)..6FC..(EX,PREM,S)¥1,390201701-202412

main67882-36050iXZB70..29S;XZB60..25S..5F¥1,740202201-202412

main67882-36050iXZB60..25S..6FC¥1,740201701-202201

67883ARETAINER, BACK DOOR WEATHERSTRIP

main67867-12150iXZB60..25S..6FC¥100201701-202201

main67867-12150iXZB70..29S;XZB60..25S..5F¥100202201-202412

68281ARETAINER, BACK DOOR WEATHERSTRIP

main67867-12150iXZB60..25S..6FC¥100201701-202201

main67867-12150iXZB70..29S;XZB60..25S..5F¥100202201-202412

75129CCUSHION, REAR LICENCE PLATE

main75129-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC¥90201701-202412

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-36010iXZB70..29S;XZB60..25S..5F¥6,000201701-202401

main76811-36020iGDB60..25S¥6,000202401-202412

main76811-36020iGDB60..25S¥6,000202401-202412

main76811-36030iGDB60,70..09S¥5,300202201-202412

main76811-36030iXZB60..09S;XZB80..HDCR;XZB60,70..(24S,39S,49S)..5F;XZB70..(21S,24S,49S)..6FC..(EX,PREM,S)¥5,300201701-202201

main76811-36040iGDB60,70,80..13S,24S,39S¥5,300202401-202412

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-36010iXZB70..29S;XZB60..25S..5F¥540201701-202412

main76825-36020iXZB60..09S;XZB80..HDCR;XZB60,70..(24S,39S,49S)..5F;XZB70..(21S,24S,49S)..6FC..(EX,PREM,S)¥540201701-202412

8113

9010906391

main90109-06391¥60

9011406026

main90114-06026¥60

9017906274

main90179-06274¥70

9046706158C0

main90467-06158C0

9046709206

main90467-09206¥80

93540A4016

main93540-A4016¥60

16 parts on this diagram · 5 diagrams in section
