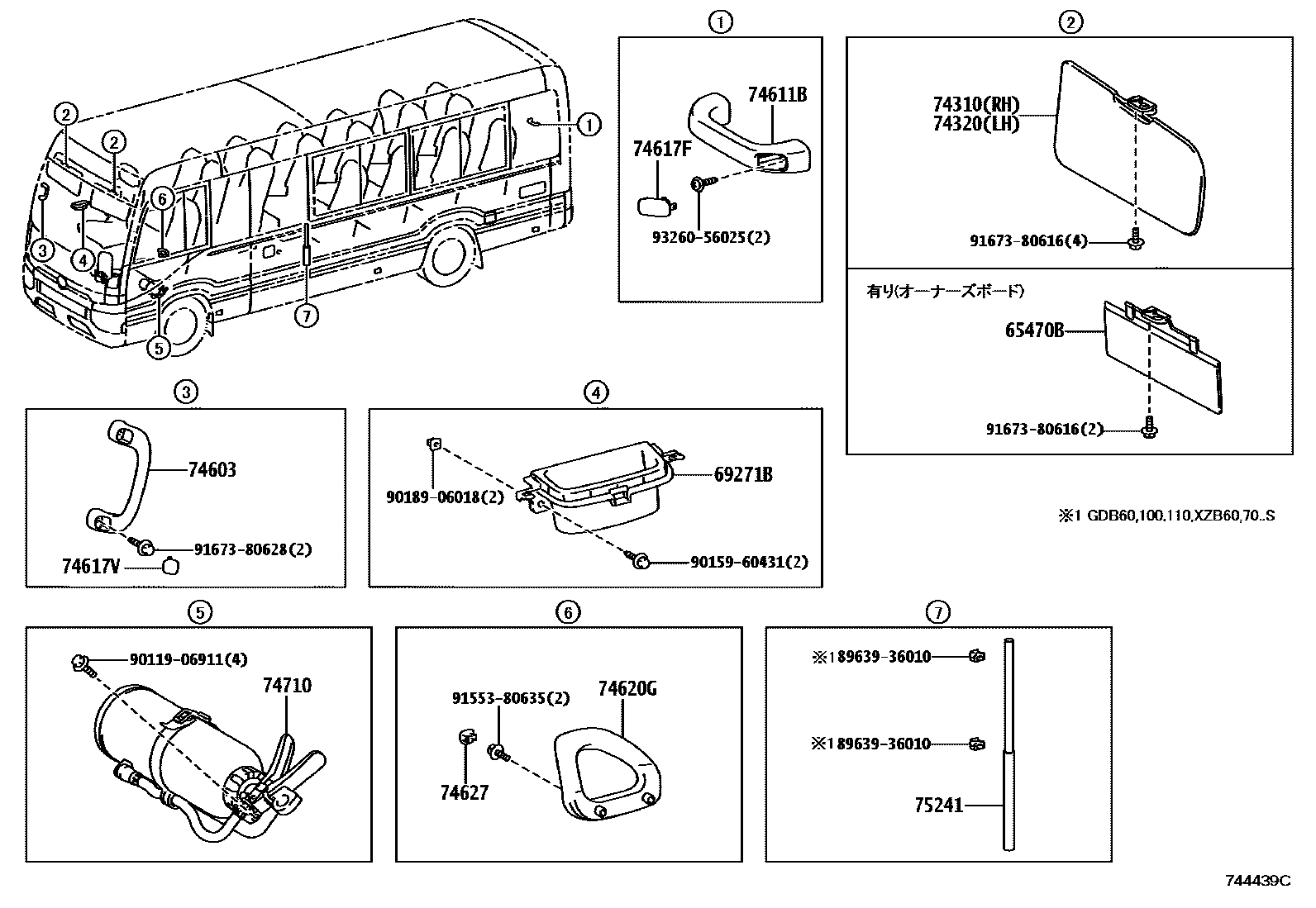

Toyota COASTER — ARMREST & VISOR

0001 1 0002 1 0003 1

65470BBOARD ASSY, HEADER

69271BHANDLE, FRONT DOOR INSIDE, RH

main69271-36020-B0iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

MD.GRAY,TRIM1#

main69271-36020-B0iGDB60,70,80202201-202412

MD.GRAY,TRIM1#

main69271-36020-B0iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

MD.GRAY,TRIM2#

main69271-36020-B0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

MD.GRAY,TRIM1#

main69271-36020-B0iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202201

MD.GRAY,TRIM1#

main69271-36020-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

74310VISOR ASSY, RH

main74310-36200-B1iXZB60,70..EX,GX,LX201701-201801

LT.GRAY,TRIM1#

main74310-36200-B1iXZB60,70..S201701-202101

LT.GRAY,TRIM1#

main74310-36210-B1iXZB60,70,80..EX,GX,LX201802-202101

LT.GRAY,TRIM1#

main74310-36210-B1iXZB70..PREM202006-202101

LT.GRAY,TRIM1#,2#

main74310-V4011-B0iGDB60,70,80..GX,LX202201-202412

LT.GRAY,TRIM1#

main74310-V4020-B0iXZB70..S;XZB60..5F..S202201-202312

LT.GRAY,TRIM1#

main74310-V4060-B0iGDB60..S202201-202412

LT.GRAY,TRIM1#

main74310-V4070-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR202201-202312

LT.GRAY,TRIM2#

main74310-V4070-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR202201-202312

LT.GRAY,TRIM1#

main74310-V4080-B0iXZB70..S;XZB60..5F..S202101-202201

LT.GRAY,TRIM1#

sub74310-V4020¥4,160

main74310-V4080-B0iXZB60..6FC..S202101

LT.GRAY,TRIM1#

sub74310-V4020¥4,160

main74310-V4090-B0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR202101

LT.GRAY,TRIM1#

sub74310-V4070¥4,160

main74310-V4090-B0iXZB60..09S;XZB70..29S..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR202101-202201

LT.GRAY,TRIM1#

sub74310-V4070¥4,160

main74310-V4090-B0iXZB60..09S;XZB70..29S..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR202101-202201

LT.GRAY,TRIM2#

sub74310-V4070¥4,160

74320VISOR ASSY, LH

main74320-36270-B0iXZB70..PREM202201-202312

�T���o�C�U�|�L���i���c�q�o�@���@�L���i�`�P�b�g�z���_�j�j,LT.GRAY,TRIM1#

main74320-36270-B0iXZB60..5F..GX;XZB70..29S..GX..DCR;XZB70,80..(EX,GX)..HDCR202201-202312

LT.GRAY,TRIM2#

main74320-36270-B0iXZB60..5F..GX;XZB70..29S..GX..DCR;XZB70,80..(EX,GX)..HDCR202201-202312

LT.GRAY,TRIM1#

main74320-36270-B0iGDB60,70..GX202201-202412

LT.GRAY,TRIM1#

main74320-36270-B0iGDB60,70,80..LX202401-202412

LT.GRAY,TRIM1#

main74320-36270-B0iXZB60,70..5F..(EX,GX);XZB70,80..(EX,GX)..HDCR;XZB70..29S..6FC..GX..DCR201701-202201

LT.GRAY,TRIM1#

main74320-36270-B0iXZB60,70..5F..(EX,GX);XZB70,80..(EX,GX)..HDCR;XZB70..29S..6FC..GX..DCR201701-202201

�T���o�C�U�|�L���i���c�q�o�@���@�L���i�`�P�b�g�z���_�j�j,LT.GRAY,TRIM1#

main74320-36270-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main74320-36270-B0iXZB60,70..(24S,25S)..6FC..GX201701

LT.GRAY,TRIM1#

main74320-36270-B0iXZB60,70..(24S,25S)..6FC..GX201701

�T���o�C�U�|�L���i���c�q�o�@���@�L���i�`�P�b�g�z���_�j�j,LT.GRAY,TRIM1#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74620-26010-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

main74620-26010-B0iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202201

LT.GRAY,TRIM1#

main74620-26010-B0iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

main74620-26010-B0iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

LT.GRAY,TRIM1#

main74620-26010-B0iXZB70..PREM202201-202312

LT.GRAY,TRIM1#

main74620-26010-B0iGDB60,70,80202201-202412

LT.GRAY,TRIM1#

74611BGRIP, ASSIST

main74610-60060-B5iXZB70..PREM202201-202312

LT.GRAY,TRIM1#

sub74603-35010¥2,490

sub74610-60060¥1,870

sub74610-0S020

main74610-60060-B5iXZB60..09S;XZB80..HDCR;XZB70..EX,S;XZB60..5F..S202201-202312

LT.GRAY,TRIM2#

sub74603-35010¥2,490

sub74610-60060¥1,870

sub74610-0S020

main74610-60060-B5iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,39S)..6FC..DCR201701

LT.GRAY,TRIM1#

sub74603-35010¥2,490

sub74610-60060¥1,870

sub74610-0S020

main74610-60060-B5iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

sub74603-35010¥2,490

sub74610-60060¥1,870

sub74610-0S020

main74610-60060-B5iXZB60..09S;XZB80..HDCR;XZB60,70..(24S,39S,49S)..5F;XZB70..(24S,49S)..6FC..(EX,S)201701-202201

LT.GRAY,TRIM1#

sub74603-35010¥2,490

sub74610-60060¥1,870

sub74610-0S020

main74610-60060-B5iGDB60,70,80..09S,13S,24S,39S202201-202412

LT.GRAY,TRIM1#

sub74603-35010¥2,490

sub74610-60060¥1,870

sub74610-0S020

74617FPLUG, ASSIST GRIP

main74617-60010-B4iXZB60..09S;XZB80..HDCR;XZB70..EX,S;XZB60..5F..S202201-202312

LT.GRAY,TRIM2#

sub74617-60010¥270

sub74617-0S020

main74617-60010-B4iXZB60..09S;XZB80..HDCR;XZB60,70..(24S,39S,49S)..5F;XZB70..(24S,49S)..6FC..(EX,S)201701-202201

LT.GRAY,TRIM1#

sub74617-60010¥270

sub74617-0S020

main74617-60010-B4iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

sub74617-60010¥270

sub74617-0S020

main74617-60010-B4iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,39S)..6FC..DCR201701

LT.GRAY,TRIM1#

sub74617-60010¥270

sub74617-0S020

main74617-60010-B4iXZB70..PREM202201-202312

LT.GRAY,TRIM1#

sub74617-60010¥270

sub74617-0S020

main74617-60010-B4iGDB60,70,80..09S,13S,24S,39S202201-202412

LT.GRAY,TRIM1#

sub74617-60010¥270

sub74617-0S020

74617VPLUG, ASSIST GRIP

main74615-60020-B3iXZB60..09S;XZB60,70..5F;XZB70..(29S,49S)..6FC;XZB70,80..(13S,24S)..HDCR201701-202201

LT.GRAY,TRIM1#

sub74615-60020¥280

main74615-60020-B3iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

sub74615-60020¥280

main74615-60020-B3iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

LT.GRAY,TRIM1#

sub74615-60020¥280

main74615-60020-B3iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

sub74615-60020¥280

main74615-60020-B3iXZB70..PREM202201-202312

LT.GRAY,TRIM1#

sub74615-60020¥280

main74615-60020-B3iGDB60,70,80202201-202412

LT.GRAY,TRIM1#

sub74615-60020¥280

74620GGRIP ASSY, ASSIST, FRONT

main74620-60041-B3iXZB60..09S;XZB70..29S..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

LT.GRAY,TRIM1#

sub74620-60041¥4,710

main74620-60041-B3iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

sub74620-60041¥4,710

main74620-60041-B3iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201701

LT.GRAY,TRIM1#

sub74620-60041¥4,710

main74620-60041-B3iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

sub74620-60041¥4,710

main74620-60041-B3iXZB70..PREM202201-202312

LT.GRAY,TRIM1#

sub74620-60041¥4,710

main74620-60041-B3iGDB60,70,80..GX,LX202201-202412

LT.GRAY,TRIM1#

sub74620-60041¥4,710

74627PLUG, REAR ASSIST GRIP

main74627-60020-B3iXZB60..09S;XZB70..29S..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

LT.GRAY,TRIM1#

sub74627-60020¥160

main74627-60020-B3iXZB70..PREM202006-202201

LT.GRAY,TRIM1#,2#

sub74627-60020¥160

main74627-60020-B3iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S)..6FC..DCR201701

LT.GRAY,TRIM1#

sub74627-60020¥160

main74627-60020-B3iXZB70..PREM202201-202312

LT.GRAY,TRIM2#

sub74627-60020¥160

main74627-60020-B3iXZB70..PREM202201-202312

LT.GRAY,TRIM1#

sub74627-60020¥160

main74627-60020-B3iGDB60,70,80..GX,LX202201-202412

LT.GRAY,TRIM1#

sub74627-60020¥160

74710EXTINGUISHER ASSY

main74710-36012iXZB60,70,80..13S,21S,24S,25S,29S¥27,900201701-202008

sub74710-36070¥20,900

main74710-36060iXZB60,70..S¥27,600201701-202008

sub74710-36080¥20,900

main74710-36070iXZB60,70,80..(13S,24S,25S)..6FC..DCR¥20,900202008

main74710-36070iXZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR¥20,900202008-202201

main74710-36070iXZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR¥20,900202201-202312

main74710-36070iGDB60,70,80..13S,24S,25S¥20,900202201-202412

main74710-36080iXZB70..S;XZB60..5F..S¥20,900202008-202201

main74710-36080iGDB60..S¥20,900202201-202412

main74710-36080iXZB70..S;XZB60..5F..S¥20,900202201-202312

main74710-36080iXZB60..6FC..S¥20,900202008

75241FLAG, RED

main75241-90025iGDB60..S¥1,860202201-202412

�c�����x�[�X�p�b�P�[�W�C�Z���^�h�A�i�������j

main75241-90025iGDB60..S¥1,860202201-202412

�c�����x�[�X�p�b�P�[�W�C�Z���^�h�A�i�O���C�h���j

main75241-90025iXZB70..S;XZB60..5F..S¥1,860201701-202201

main75241-90025iXZB60..6FC..S¥1,860201701

main75241-90025iXZB70..S;XZB60..5F..S¥1,860202201-202312

�c�����x�[�X�p�b�P�[�W�C�Z���^�h�A�i�������j

main75241-90025iXZB70..S;XZB60..5F..S¥1,860202201-202312

�c�����x�[�X�p�b�P�[�W�C�Z���^�h�A�i�O���C�h���j

8963936010WIRE, BRAKE CONTROL

main89639-36010¥250

9011906911

main90119-06911¥80

9015960431

main90159-60431¥70

9018906018

main90189-06018¥80

9155380635

main91553-80635¥80

9167380616

main91673-80616¥60

9167380628

main91673-80628¥130

9326056025

main93260-56025¥50

20 parts on this diagram · 3 diagrams in section
