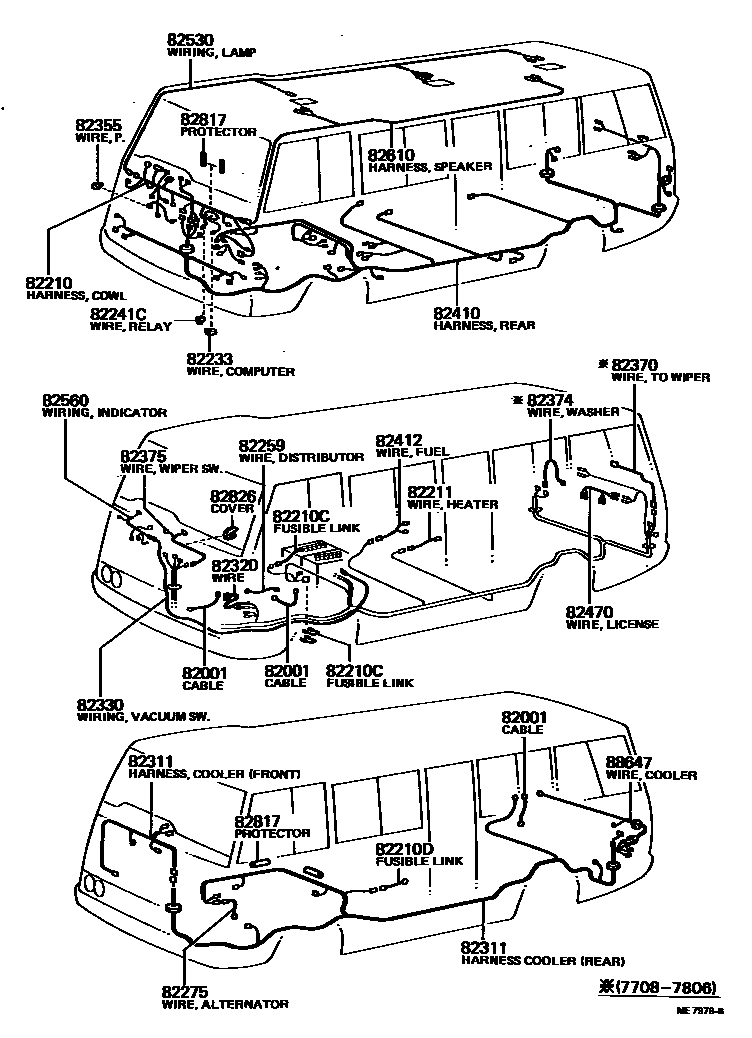

Toyota COASTER — WIRING & CLAMP
82001CABLE, BOND, NO.1
L=250,COOLER MOTOR
L=280
L=260
L=300
L=280
L=360
L=350
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
12V
24V
12V
24V
82210CFUSIBLE LINK
24V, L=110, 1.25B
L=100, 0.5G
L=110,1.0B
12V, L=110, 1.0B
L=100, 0.85R
L=100,0.3P
82210DFUSIBLE LINK
L=110,2L
82211WIRE, HEATER BLOWER FAN SWITCH
82233WIRE, COMPUTER
82241CWIRE, RELAY
W/O INTERMITTENT WIPER
82259WIRE, DISTRIBUTOR
82275WIRE, ALTERNATOR
82320WIRE ASSY, TO HORN
CHINA SPEC
82330WIRING ASSY, TO VACUUM WARNING SWITCH
82355WIRE, PARKING LAMP SWITCH
82370WIRE ASSY, WIPER SWITCH TO WIPER
RR WIPER
82374WIRE, WASHER
RR WIPER
82375WIRE, WIPER SWITCH
RR WIPER
82410HARNESS ASSY, WIRING TO REAR LAMP
sub82410-90529
sub82410-90530
sub82410-90531
sub82410-90526
sub82410-90527
82470WIRE ASSY, LICENSE LAMP FEED
82530WIRING ASSY, INTERIOR LAMP FEED
12V
12V
24V
12V
82560WIRING, VACUUM INDICATOR
82610HARNESS ASSY, ROOF SPEAKER
W/STEREO
W/STEREO
82817PROTECTOR, WIRING HARNESS, NO.1
L=130
L=60
L=100
L=160
60X20
L=80
82826COVER, WIRING HARNESS HOLE
W/O HEATER
88647WIRE SUB-ASSY, COOLER
25 parts on this diagram · 5 diagrams in section
