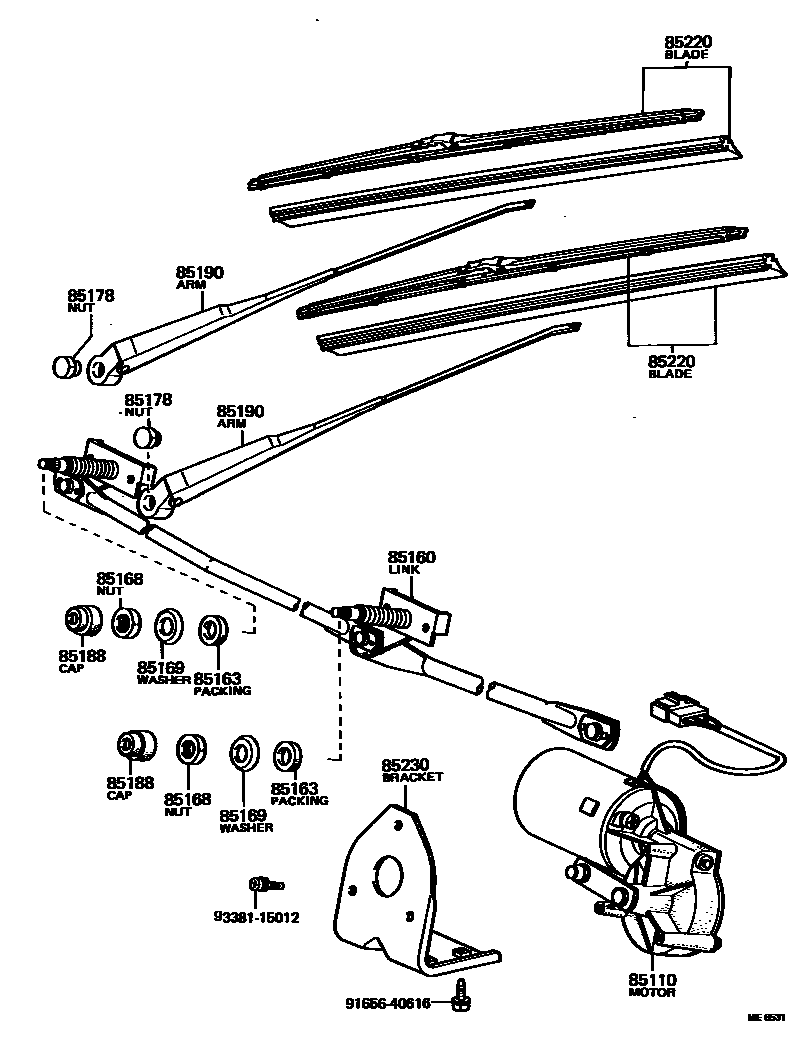

Toyota COASTER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-90740iRB1#..RHD¥30,400197708-198204

12V

main85110-90741iRB1#..LHD¥30,400197708-198204

12V

main85110-90742iBB10..RHD..GEN¥31,300197708-197905

24V

main85110-90742iBB10..RHD..(21S,22S,25S,26S)¥31,300197905-198204

24V

main85110-90743iBB10..LHD¥31,300197708-198204

24V

85160LINK ASSY, WINDSHIELD WIPER

main85160-90740iBB10,RB1#¥9,100197708-198204

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-90500iBB10,RB1#197708-198204

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-90500iBB10,RB1#¥260197708-198204

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-90500iBB10,RB1#¥470197708-198204

sub85169-95A00¥250

85178NUT (FOR FRONT WIPER ARM SETTING)

main85193-90500iBB10,RB1#¥730197708-197909

sub90176-08026¥550

main85193-90500iBB10,RB1#..RHD¥730197909-197911

sub90176-08026¥550

main90176-08026iBB10,RB1#..LHD¥550197909-197911

BLACK

main90176-08026iBB10,RB1#¥550197911-198204

BLACK

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-56010iBB10,RB1#¥550197708-198204

85190ARM ASSY, WINDSHIELD WIPER

main85190-90740iBB10,RB1#..RHD197708-197911

main85190-90741iBB10,RB1#..LHD197708-197909

main85190-90743iBB10,RB1#..RHD¥7,500197911-198204

main85190-90744iBB10,RB11,13..LHD¥7,500197909-198204

85220BLADE ASSY, WINDSHIELD WIPER

main85220-90740iBB10,RB1#¥1,880197708-197909

main85220-90740iBB10,RB1#..RHD¥1,880197909-197911

main85220-90741iBB10,RB1#..LHD¥1,920197909-197911

BLACK

main85220-90741iBB10,RB1#¥1,920197911-198204

BLACK

85230BRACKET ASSY, WINDSHIELD WIPER

main85231-90740iBB10,RB1#197708-198204

9165640616

main91656-40616¥100

9338115012

main93381-15012¥120

12 parts on this diagram · 1 diagram in section
