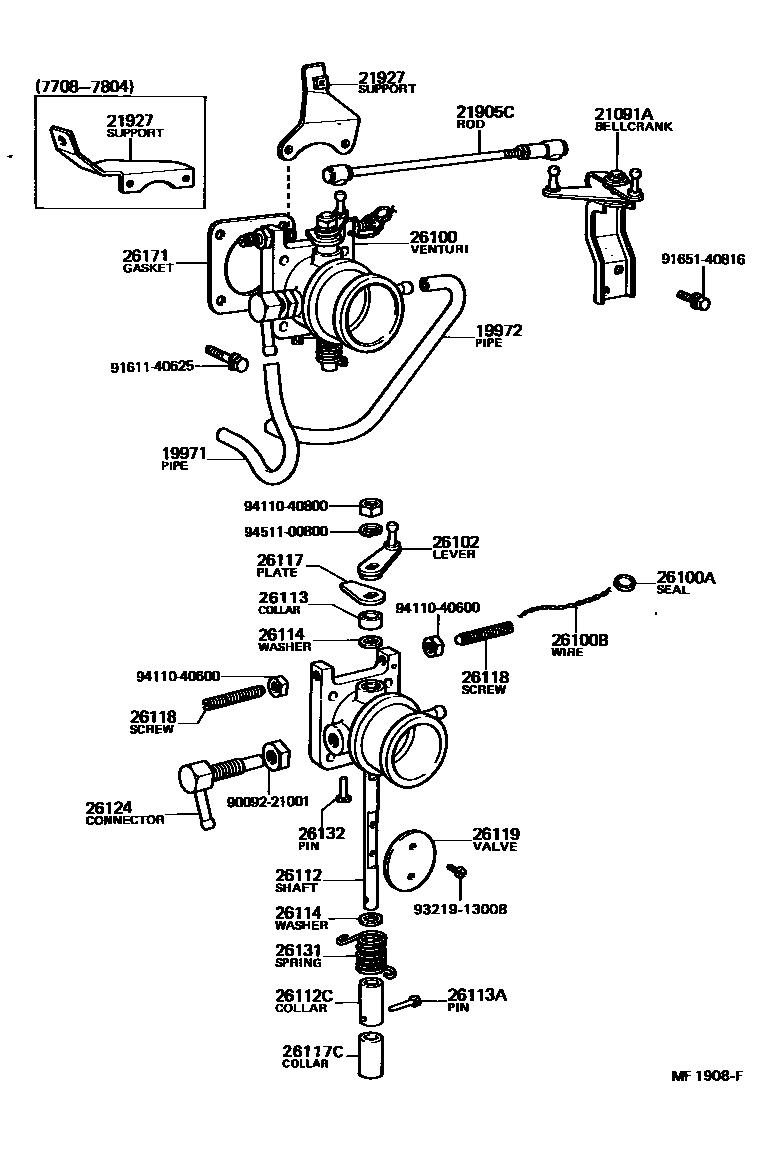

Toyota COASTER — VENTURI
19971PIPE, VACUUM(FOR VENTURI)
19972PIPE, AIR CLEANER VENT
21091ABELLCRANK, CHOKE ROD(FOR VENTURI)
21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)
21927SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK)
W/O EDIC
W/O EDIC
26100VENTURI ASSY
26100ASEAL, LEAD
26100BWIRE, SEAL
26102LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26112SHAFT, VENTURI THROTTLE VALVE
26112CCOLLAR, ADJUSTING
sub26113-56011
26113COLLAR, THROTTLE VALVE SHAFT
26113APIN, THROTTLE VALVE SHAFT
26114WASHER, THROTTLE VALVE SHAFT ADJUSTING
T=0.1,T=0.1
T=0.2,T=0.2
T=0.5,T=0.5
26117PLATE, THROTTLE VALVE SHAFT STOP
26117CCOLLAR(FOR IDLE UP)
26118SCREW, STOP PLATE ADJUSTING
sub22325-77020
26119VALVE, VENTURI THROTTLE
26124CONNECTOR, VENTURI PIPE
26131SPRING, RETURN
26132PIN
26171GASKET, VENTURI
9009221001
main90092-21001
9161140625
9165140816
9321913008
9411040600
9411040800
9451100800
29 parts on this diagram · 2 diagrams in section
