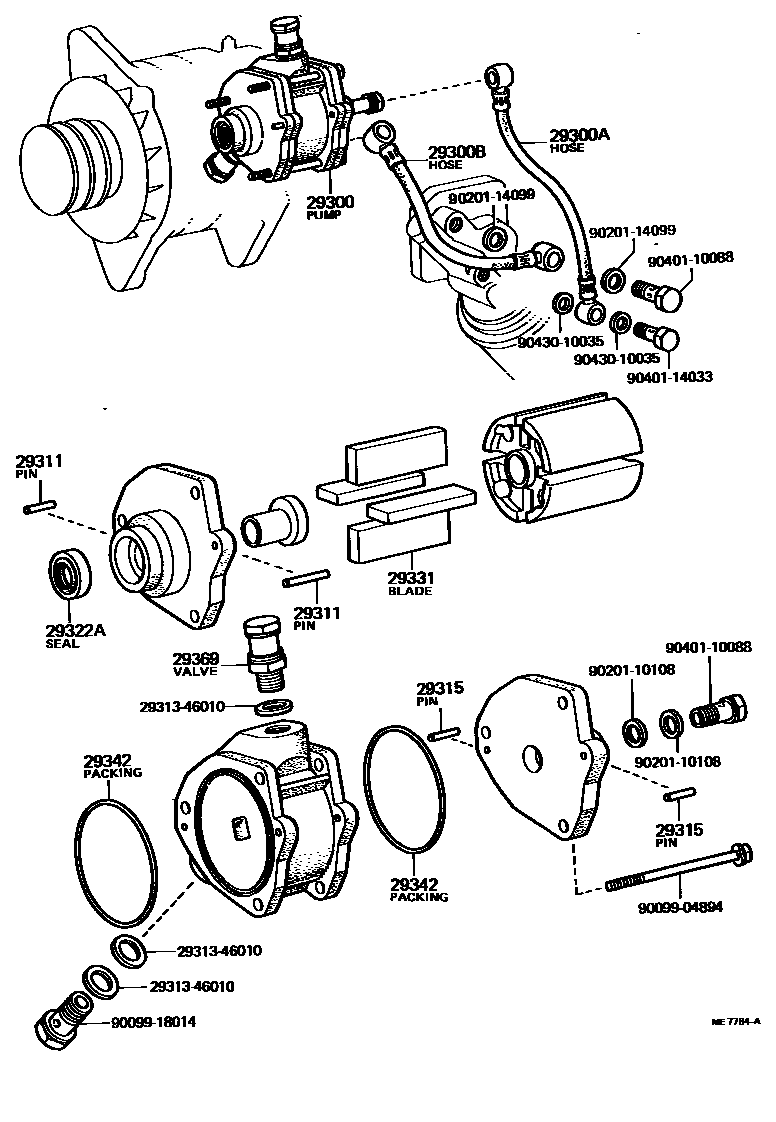

Toyota COASTER — VACUUM PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

29300PUMP ASSY, VACUUM

main29300-54030i2B..BB10..(DLX,STD)..GEN¥52,200197911-197912

24V

sub29300-54031

main29300-54031i2B..BB10..(DLX,STD)..GEN197912-198002

24V

sub29300-54010

main29300-54040i2B..BB10..(DLX,STD)..GEN¥43,200198002-198008

24V

sub29300-54021¥47,500

main29300-56020i2B..BB10..DLX,STD¥44,900197708-198001

12V

sub29300-48030¥41,100

main29300-56030i2B..BB10..BC197708-198008

main29300-56060i2B..BB10..DLX,STD198001-198008

12V

main29300-56070i2B..BB10..BC¥45,400198109-198204

main29300-57011i2B..BB10¥45,700198008-198109

main29300-57011i2B..BB10..DLX,STD¥45,700198109-198204

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02026i2B..BB10..BC¥3,860197708-198008

main90923-02033i2B..BB10..DLX,STD¥3,410197708-198008

main90923-02062i2B..BB10..IRQ;2B..BB10..DLX,STD¥2,690198008-198204

main90923-02066i2B..BB10..BC..(ARL,GEN)¥2,550198008-198109

main90923-02078i2B..BB10..BC..(ARL,GEN)¥2,760198109-198204

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02050i2B..BB10..BC¥2,570197708-198008

main90923-02054i2B..BB10..DLX,STD¥2,910197708-198008

12V

main90923-02059i2B..BB10..(DLX,STD)..GEN¥2,430197911-198008

24V

main90923-02065i2B..BB10¥2,290198008-198109

sub90923-02068¥1,730

main90923-02068i2B..BB10¥1,730198109-198204

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2B..BB10..(DLX,STD)..GEN¥140197911-198002

24V

main90099-08082i2B..BB10198008-198204

sub29311-76010¥140

main90099-08082i2B..BB10197708-197911

sub29311-76010¥140

main90099-08082i2B..BB10..BC197911-198002

12V

sub29311-76010¥140

main90099-08082i2B..BB10198002-198008

12V

sub29311-76010¥140

29315PIN, VACUUM PUMP DOWEL, NO.2

main90099-08082i2B..BB10197708-198008

sub29311-76010¥140

29322ASEAL, VACUUM PUMP OIL

main90099-15017i2B..BB10¥0197708-198204

29331BLADE, VACUUM PUMP, A

main29331-54031i2B..BB10..(DLX,STD)..GEN197912-198002

24V

main29331-56010i2B..BB10¥880198008-198109

main29331-56010i2B..BB10..DLX,STD¥880197912-198002

12V

main29331-56010i2B..BB10..DLX,STD¥880198002-198008

main29331-56070i2B..BB10..BC198109-198204

main29331-77020i2B..BB10..BC197708-198008

29342PACKING, VACUUM PUMP

main90099-14031i2B..BB10..BC¥0197708-198008

main96740-02063i2B..BB10..DLX,STD¥0197708-198008

main96740-02063i2B..BB10¥0198008-198204

29369VALVE SUB-ASSY, CHECK

main29369-54010i2B..BB10..(DLX,STD)..GEN197911-198008

24V

main29369-54010i2B..BB10198008-198109

main29369-54010i2B..BB10..DLX,STD198109-198204

main29369-56020i2B..BB10..DLX,STD197708-198008

12V

main29369-56030i2B..BB10..BC197708-198008

main29369-56070i2B..BB10..BC198109-198204

2931346010

main29313-46010¥210

9009904894

main90099-04894

9009918014

main90099-18014

9020110108

main90201-10108¥220

9020114099

main90201-14099¥230

9040110088

main90401-10088¥330

9040114033

main90401-14033¥1,260

9043010035

main90430-10035¥190

17 parts on this diagram · 6 diagrams in section
