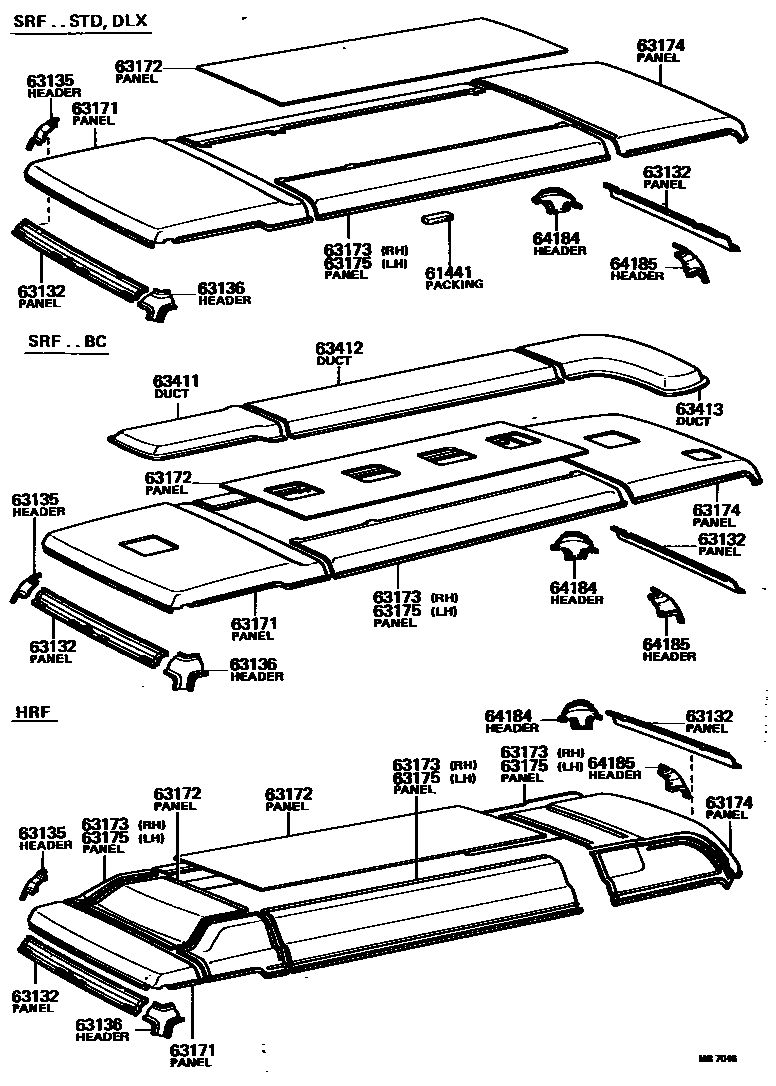

Toyota COASTER — ROOF PANEL & BACK PANEL

0001 1 0002 1

61441PACKING, DUST PROOF, NO.1

main61441-90500iBB10,RB1#197708-198204

30X60X60

main61442-90500iBB10,RB1#197708-198204

25X30X120

63132PANEL, WINDSHIELD HEADER, INNER

main53207-90740iBB10,RB1#..RHD..SRF¥7,500197708-197911

FR

sub53207-90748

main53207-90741iBB10,RB1#..LHD..SRF¥12,500197708-197911

FR

sub53207-90749

main53207-90743iBB10,RB11,13..RHD..HRF..GEN197708-198204

FR

main53207-90744iBB10,RB11,13..LHD..HRF197708-198204

FR

main53207-90745iBB10,RB11,13..ARL197708-198204

FR

main53207-90746iBB10,RB1#..RHD..HRF..GEN197911-198204

FR,W/CLOCK

main53207-90747iBB10,RB1#..LHD..HRF197911-198204

FR,W/CLOCK

main53207-90748iBB10,RB1#..RHD..SRF197911-198204

FR

main53207-90749iBB10,RB1#..LHD..SRF197911-198204

FR

main53207-90750iBB10,RB1#..RHD..SRF197911-198204

FR,W/CLOCK

main53207-90751iBB10,RB1#..LHD..SRF197911-198204

FR,W/CLOCK

main64108-90503iBB10,RB11,13..HRF197708-198204

RR

main64181-90500iBB10,RB1#..SRF197708-198204

RR

63135HEADER, ROOF FRONT, RH

main53272-90740iBB10,RB1#..LHD197708-198204

main53272-90741iBB10,RB1#..RHD197708-198204

63136HEADER,ROOF FRONT, LH

main53273-90740iBB10,RB1#..RHD197708-198204

main53273-90741iBB10,RB1#..LHD197708-198204

63171PANEL, ROOF, FRONT

main63171-90740iBB10,RB1#..SRF..(DLX,STD)197708-198204

main63171-90741iBB10,RB11,13..SRF..BC197708-198204

main63171-90743iBB10,RB11,13..HRF197708-198204

63172PANEL, ROOF, CENTER

main63172-90500iBB10,RB1#..SRF..(DLX,STD)197708-198204

RR

main63172-90740iBB10,RB11,13..SRF..BC197708-198204

main63175-90740iBB10,RB11,13..HRF197708-198204

FR

63173PANEL, ROOF, CENTER SIDE RH

main63173-90500iBB10,RB1#..SRF197708-198204

main63173-90740iBB10,RB11,13..HRF197708-198204

CTR

main63189-90740iBB10,RB11,13..HRF197708-198204

FR

main63198-90740iBB10,RB11,13..HRF197708-198204

RR

63174PANEL, ROOF, REAR

main63174-90500iBB10,RB1#..SRF..(DLX,STD)197708-198204

main63174-90740iBB10,RB11,13..SRF..BC197708-198204

main63174-90744iBB10,RB11,13..HRF197708-198204

63175PANEL, ROOF, CENTER SIDE LH

main63173-90500iBB10,RB1#..SRF197708-198204

main63173-90740iBB10,RB11,13..HRF197708-198204

CTR

main63197-90740iBB10,RB11,13..HRF197708-198204

FR

main63199-90740iBB10,RB11,13..HRF197708-198204

RR

63411DUCT, COOLER OUTSIDE, FRONT

main63411-90500iBB10,RB11,13..SRF..BC197708-198204

63412DUCT, COOLER OUTSIDE, CENTER

main63412-90500iBB10,RB11,13..SRF..BC197708-198204

63413DUCT, COOLER OUTSIDE, REAR

main63413-90740iBB10,RB11,13..SRF..BC197708-198204

64184HEADER, ROOF, REAR RH

main64182-90500iBB10,RB1#197708-198204

64185HEADER, ROOF, REAR LH

main64183-90500iBB10,RB1#197708-198204

14 parts on this diagram · 2 diagrams in section
