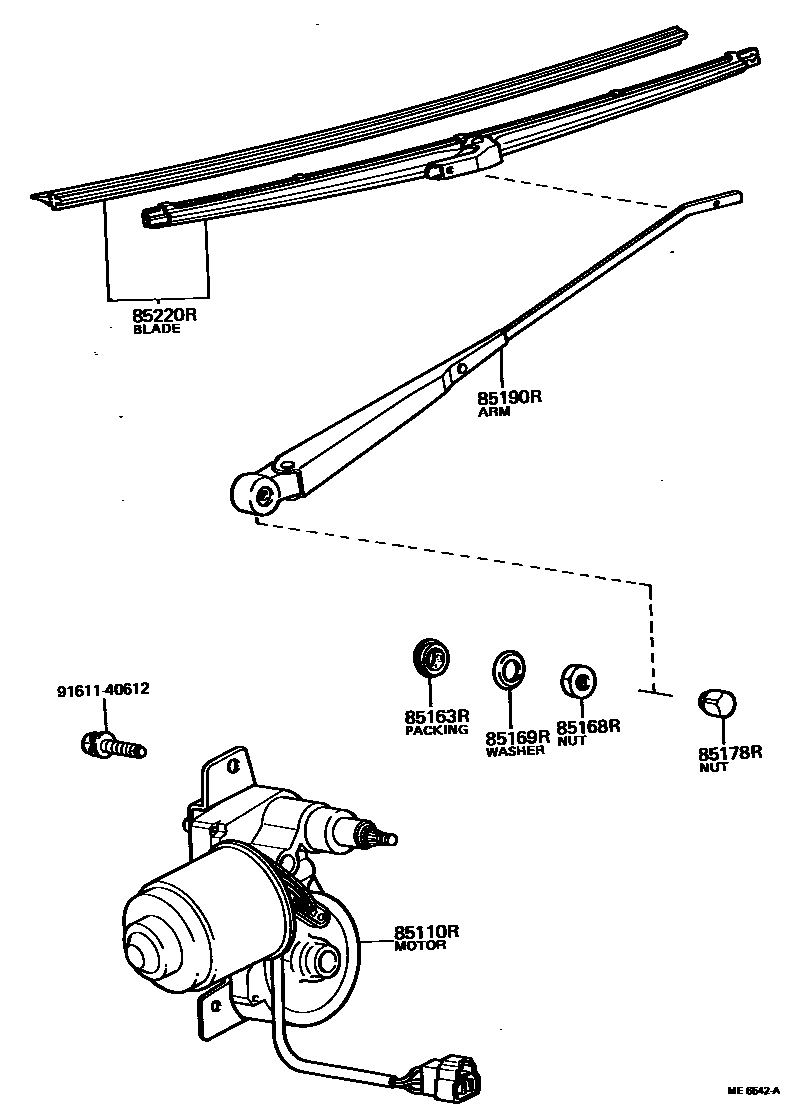

Toyota COASTER — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-90744iRB1#..(BC,DLX)..GEN¥30,400197708-198204

12V

main85110-90745iBB10..(BC,DLX)..(GEN,IRQ)¥31,300197708-198204

24V

85163RPACKING, REAR WIPER PIVOT, NO.1

main85185-90740iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197708-198204

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85168-95A01iBB10,RB1#..(BC,DLX)..(GEN,IRQ)¥450197708-198204

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85169-90500iBB10,RB1#..(BC,DLX)..(GEN,IRQ)¥470198002-198204

sub85169-95A00¥250

main85169-95A01iBB10,RB1#..(BC,DLX)..GEN¥230197708-198002

85178RNUT (FOR REAR WIPER ARM SETTING)

main85182-95A01iBB10,RB1#..(BC,DLX)..GEN197708-197909

main85182-95A01iBB10,RB1#..RHD..(BC,DLX)..GEN197909-197911

main90176-06004iBB10,RB1#..LHD..(BC,DLX)¥430197909-197911

sub85193-87301¥470

main90176-06004iBB10,RB1#..(BC,DLX)..(GEN,IRQ)¥430197911-198204

sub85193-87301¥470

85190RARM ASSY, REAR WIPER

main85190-90742iBB10,RB1#..(BC,DLX)..GEN197708-197909

main85190-90742iBB10,RB1#..RHD..(BC,DLX)..GEN197909-197911

main85190-90745iBB10,RB1#..LHD..(BC,DLX)¥7,500197909-197911

main85190-90745iBB10,RB1#..(BC,DLX)..(GEN,IRQ)¥7,500197911-198204

85220RBLADE ASSY, REAR WIPER

main85220-90500iBB10,RB1#..(BC,DLX)..GEN197708-197909

main85220-90500iBB10,RB1#..RHD..(BC,DLX)..GEN197909-197911

main85220-95405iBB10,RB1#..LHD..(BC,DLX)197909-197911

main85220-95405iBB10,RB1#..(BC,DLX)..(GEN,IRQ)197911-198204

9161140612

main91611-40612¥130

8 parts on this diagram · 1 diagram in section
