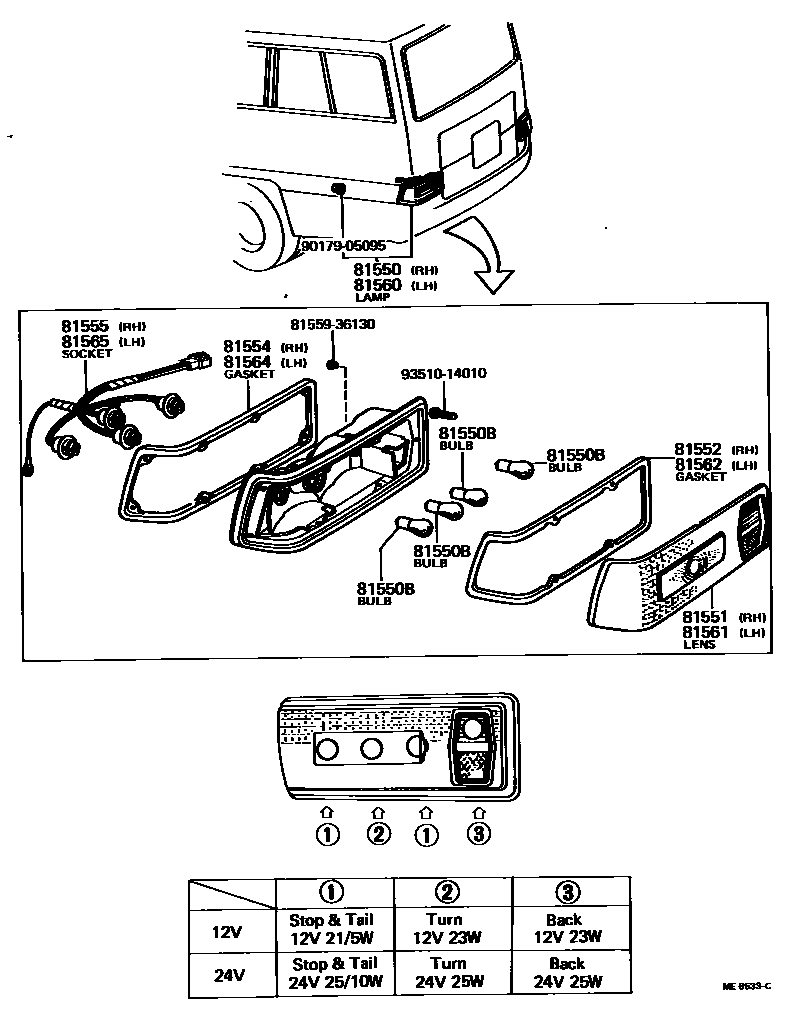

Toyota COASTER — REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39146iBB10..(DLX,STD)..GEN¥20,100197708-198204

12V

main81550-39156iBB10..GEN,IRQ¥20,100197708-198204

24V

main81550-39426iRB11,13..ARL;BB10..STD..ARL¥22,400197708-198204

12V

main81550-39545iBB10..BC..ARL197905-198204

24V

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16021iBB10..GEN,IRQ¥350198008-198204

24V 25/10W,24V 25/10W

main99132-11230iRB11,13;BB10,RB10..DLX,STD197708-198204

12V 23W,12V 23W

main99132-21210iRB1#¥190197708-198204

12V 21/5W,12V 21/5W

main99134-11250iBB10..GEN¥230197708-197905

24V 25W,24V 25W

main99134-11250iBB10..21S,22S,25S,26S¥230197905-198204

24V 25W,24V 25W

main99134-22250iBB10..BC..ARL¥260198008-198204

24V 25/10W,24V 25/10W

main99134-22250iBB10..GEN¥260197708-197905

24V 25/10W,24V 25/10W

main99134-22250iBB10..21S,22S,25S,26S¥260197905-198008

24V 25/10W,24V 25/10W

81551LENS, REAR COMBINATION LAMP, RH

main81551-36140iBB10,RB1#¥2,980197708-198204

AMBER-RED-CLEAR

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-36140iBB10,RB1#¥790197708-198204

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-36141iBB10,RB1#¥1,350197708-198204

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-36141iRB1#..GEN¥2,500197708-198204

12V

main81555-36151iBB10..GEN,IRQ¥3,010197708-198204

24V

sub81555-36141¥2,500

main81555-36230iRB11,13..ARL;BB10..STD..ARL¥2,500197708-198204

12V

main81555-36250iBB10..BC..ARL¥3,110197905-198204

24V

sub81555-36230¥2,500

81560LAMP ASSY, REAR COMBINATION, LH

main81560-39166iRB1#..GEN¥20,100197708-198204

12V

main81560-39176iBB10..GEN,IRQ¥20,100197708-198204

24V

main81560-39376iRB11,13..ARL;BB10..STD..ARL¥22,400197708-198204

12V

main81560-39515iBB10..BC..ARL¥26,000197905-198204

24V

81561LENS, REAR COMBINATION LAMP, LH

main81561-36150iBB10,RB1#¥2,980197708-198204

AMBER-RED-CLEAR

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-36150iBB10,RB1#¥880197708-198204

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-36151iBB10,RB1#¥1,460197708-198204

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-36141iRB1#..GEN¥2,500197708-198204

12V

main81555-36151iBB10..GEN,IRQ¥3,010197708-198204

24V

sub81555-36141¥2,500

main81555-36230iRB11,13..ARL;BB10..STD..ARL¥2,500197708-198204

12V

main81555-36250iBB10..BC..ARL¥3,110197905-198204

24V

sub81555-36230¥2,500

8155936130MOULDING, REAR COMBINATION LAMP, RH

main81559-36130

9017905095

main90179-05095¥240

9351014010

main93510-14010¥90

14 parts on this diagram · 1 diagram in section
