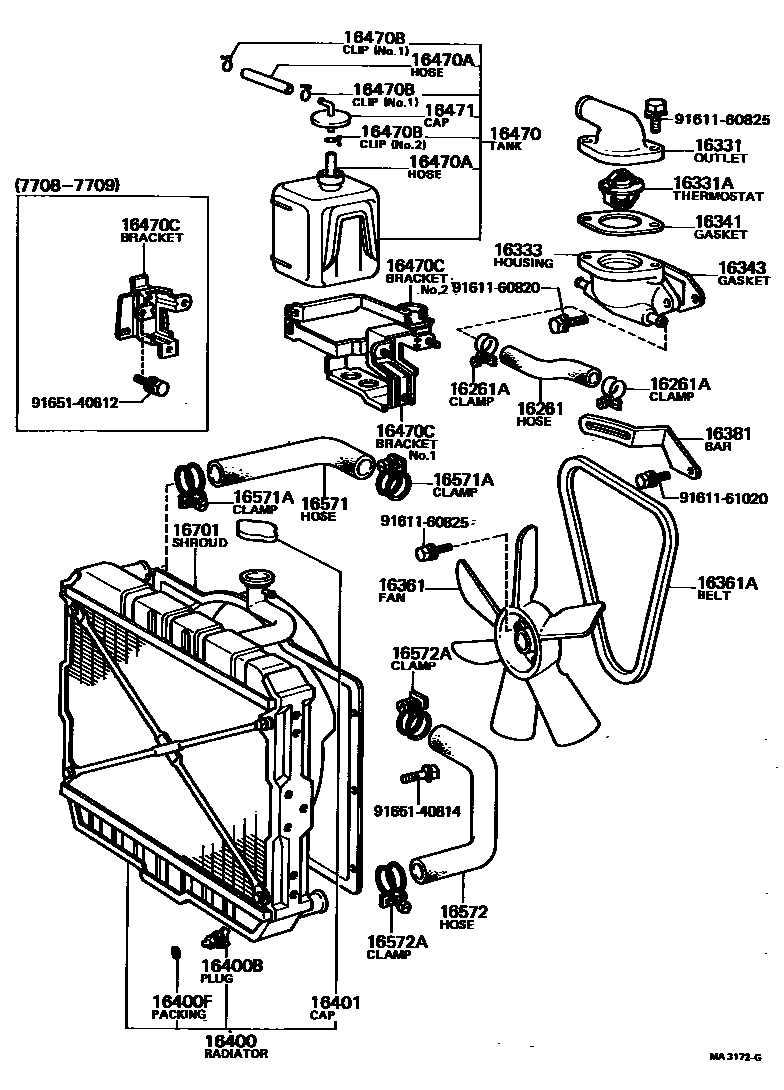

Toyota COASTER — RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-35010i22R..RB13¥950198008-198204

sub16261-35040¥940

main16261-35020i22R..RB13¥590198008-198204

W/OIL COOLER

main16261-38010i20R..RB11¥680197708-198008

main16261-44010i5R..RB10¥590197708-197911

main16261-56011i2B..BB10¥1,130197708-198204

sub16261-56012¥770

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053i2B..BB10¥230197708-198204

main90460-25002i20R..RB11197708-197901

sub96112-10250¥240

main90467-20004i22R..RB13¥260198008-198010

sub90467-20005¥220

main90467-20005i22R..RB13¥220198010-198204

sub96134-41900¥90

main96112-10240i5R..RB10¥200197708-197911

main96112-10250i20R..RB11¥240197901-198008

16331OUTLET, WATER

main16331-35020i22R..RB13¥3,360198008-198204

main16331-38011i20R..RB11¥3,380197708-197911

main16331-38012i20R..RB11¥3,650197911-198008

main16331-44020i5R..RB10¥2,080197708-197911

main16331-56010i2B..BB10¥1,860197708-198008

main16331-56020i2B..BB10¥3,950198008-198204

16331ATHERMOSTAT

main90916-03034i5R..RB10¥950197708-198204

*WAX 82-95,FUJI-THOMSON

main90916-03037i5R..RB10¥950197708-197911

*WAX 82-95,KUZEH

sub90916-03083¥1,020

main90916-03039i2B..BB10¥3,370197708-198010

*WAX 82-95

sub90916-03058¥3,370

main90916-03058i2B..BB10¥3,370198010-198204

*WAX 82-95

sub90916-03066¥3,090

16333HOUSING, WATER OUTLET

main16333-44012i5R..RB10¥4,110197708-197911

main16333-56011i2B..BB10¥4,140197708-197811

sub16333-56012¥4,120

main16333-56012i2B..BB10¥4,120197811-198008

sub16333-56020¥4,730

main16333-56040i2B..BB10¥5,700198008-198204

16341GASKET, WATER OUTLET

main16341-38010i20R..RB11¥330197807-198008

sub16341-38012¥320

main16341-38020i22R..RB13¥320198008-198204

sub16341-38021¥320

main16341-49010i5R..RB10¥330197708-197809

sub16341-38010¥330

main16341-51010i2B..BB10¥370197708-198008

sub16341-51011¥390

main16341-56010i2B..BB10¥350197802-197811

sub16341-51010¥370

main16341-56020i2B..BB10¥270198008-198204

sub16341-56021¥320

16343GASKET, WATER OUTLET HOUSING

main16343-44010i5R..RB10¥520197708-197911

sub16343-44011¥510

main16343-56012i2B..BB10¥530197708-198008

sub16343-56020¥520

main16343-56020i2B..BB10¥520198008-198204

sub16343-56022¥510

16361FAN

main16361-31030i5R..RB10¥3,950197708-197911

5 BLADES

sub16361-31031¥3,960

main16361-38010i20R,22R..RB11,13¥6,400197708-198204

7 BLADES,OD=380

main16361-47010i2B..BB10¥5,600197708-198204

W/GUIDE,OD=410

main16361-56010i2B..BB10¥6,200197708-198204

6 BLADES,OD=380

sub16361-56030¥6,200

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02087i2B..BB10..BC¥1,770197708-197911

DOUBLE V BELTS

sub90916-02103

main90916-02103i2B..BB10..BC197911-198008

DOUBLE V BELTS

main90916-02105i2B..BB10..BC198008-198204

main99322-00930i5R..RB10¥1,210197809-197911

main99323-01175i2B..BB10..DLX,STD¥1,330197807-197903

L=1175

main99331-00870i20R..RB11..DLX,STD¥1,020197708-197808

L=870

main99331-00880i20R..RB11¥1,020197808-197911

L=880

main99331-00890i20R..RB11..BC197708-197808

L=890

main99331-10880i20R,22R..RB1#¥1,330197911-198204

L=880

main99343-01175i2B..BB10..DLX,STD¥1,820197903-198008

L=1175

main99343-01195i2B..BB10..DLX,STD¥1,820198008-198204

main99522-10784i20R,22R..RB11,13..BC¥740197708-198204

RH ALTERNATOR,L=784

sub99322-00780

main99522-10934i5R..RB10¥780197708-197809

sub99322-00930¥1,210

main99523-11176i2B..BB10..DLX,STD¥1,330197708-197807

L=1176

sub99323-01175¥1,330

16381BAR, FAN BELT ADJUSTING

main16381-38013i20R..RB11..DLX,STD¥1,070197708-197808

main16381-38020i20R..RB11..DLX,STD¥1,000197808-198204

main16381-44011i5R..RB10¥660197708-197911

main16381-56020i2B..BB10..DLX,STD¥1,470197708-198008

main16381-56030i2B..BB10..DLX,STD¥1,900198008-198204

main88688-36060i20R,22R..RB11,13..BC197708-198204

16400RADIATOR ASSY

main16400-35040i22R..RB13¥92,000198008-198204

W/OIL COOLER

main16400-38090i20R..RB11197708-198008

FIN PITCH=4.5

main16400-38100i20R..RB11198002-198008

FIN PITCH=4.0,W/OIL COOLER

main16400-38160i22R..RB13¥92,000198008-198204

sub16400-35040¥92,000

main16400-44170i5R..RB10197708-197911

main16400-57010i2B..BB10¥92,000197708-198204

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i2B..BB10¥390197708-198204

main90910-09054i20R,22R,5R..RB1#¥500197708-198204

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i2B..BB10¥320197708-198204

main96710-01007i20R,22R,5R..RB1#¥240197708-198204

sub96711-19007¥180

16401CAP SUB-ASSY, RADIATOR

main16401-41020i20R,5R..RB1#¥1,420197708-197810

sub16401-41021¥1,290

main16401-41021i2B..BB10¥1,290197810-198204

16470TANK ASSY, RADIATOR RESERVE

main16470-57010i2B..BB10¥4,540197708-198204

sub16470-24031¥3,780

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12018i2B..BB10¥640197708-198204

L=600(*H,L=135)

sub90445-12043¥480

main90445-12054i2B..BB10¥500197708-198204

L=65

sub90445-12043¥480

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2B..BB10¥100197708-198204

NO.1

main90467-11151i2B..BB10197708-198204

NO.2

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-57010i20R,5R..RB1#¥6,200197708-197709

sub16402-57020

main16402-57020i2B..BB10197709-198204

NO.1

main16402-57030i2B..BB10¥2,210197709-198204

NO.2

16471CAP SUB-ASSY, RESERVE TANK

main16471-57010i2B..BB10197708-198204

sub16471-87606

16571HOSE, RADIATOR, INLET

main16571-38040i20R..RB11¥2,010197708-197911

main16571-38041i20R,22R..RB1#¥1,900197911-198204

main16571-44070i5R..RB10¥2,010197708-197911

main16571-57010i2B..BB10¥4,370197708-198204

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-50016i2B..BB10¥240197708-198204

ID=50

sub96111-10500¥120

main90467-37001i20R,5R..RB1#¥330197708-198008

OUTLET SIDE,ID=37

sub90467-37003¥280

main90467-37001i22R..RB13¥330198008-198204

ID=37

sub90467-37003¥280

main96111-10430i20R..RB11¥120197808-198008

RADIATOR SIDE,ID=43

main96111-10430i5R..RB10¥120197708-197903

main96111-10440i5R..RB10¥230197903-197911

RADIATOR SIDE,ID=44

main96111-10450i20R..RB11¥210197708-197808

RADIATOR SIDE,ID=45

16572HOSE, RADIATOR, OUTLET

main16571-44031i5R..RB10¥1,800197708-197911

PUMP SIDE

main16572-38060i20R,22R..RB11,13¥1,430197708-198204

main16572-57010i2B..BB10..DLX,STD¥3,600197708-198008

main16572-57020i2B..BB10..BC¥3,410197708-198008

main16572-57030i2B..BB10..DLX,STD¥3,440198008-198204

main16572-57040i2B..BB10..BC¥3,440198008-198204

main90916-01151i5R..RB10¥1,800197708-197911

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016i2B..BB10¥240197708-198204

ID=50

sub96111-10500¥120

main96111-10450i20R..RB11¥210197708-198204

ID=45

main96111-10460i5R..RB10¥190197708-198108

ID=46

main96111-10560i2B..BB10¥230197708-198204

ID=56

16701SHROUD SUB-ASSY, FAN

main16701-38010i20R,22R..RB11,13197708-198204

main16701-44110i5R..RB10197708-197911

main16701-56070i2B..BB10..BC197708-198008

main16701-56071i2B..BB10..BC198008-198204

main16701-56080i2B..BB10..DLX,STD197708-198008

main16701-56081i2B..BB10..DLX,STD198008-198204

main16701-56090i2B..BB10..BC..GEN197708-198008

W/GUIDE FAN

main16701-56091i2B..BB10..BC..(GEN,IRQ)198008-198204

W/GUIDE FAN

main16701-56100i2B..BB10..(DLX,STD)..GEN197708-198008

W/GUIDE FAN

9161160820

main91611-60820¥200

9161160825

main91611-60825¥140

9161161020

main91611-61020¥240

9165140612

main91651-40612¥70

9165140814

main91651-40814¥180

29 parts on this diagram · 6 diagrams in section
