Toyota COASTER — PARTIAL ENGINE ASSEMBLY

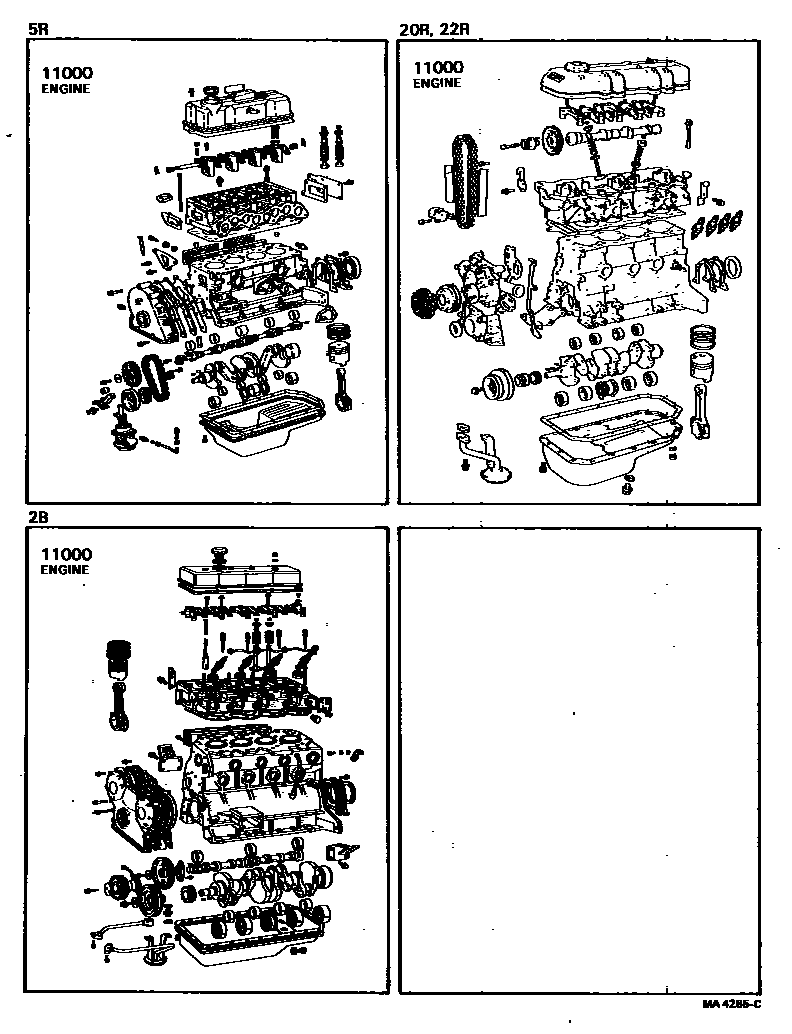

11000ENGINE ASSY, PARTIAL

main19000-35070i22R..RB13¥588,000198008-198204

sub19000-35071

main19000-38120i20R..RB11¥541,000197708-197808

sub19000-38121¥540,000

main19000-38121i20R..RB11¥540,000197808-197911

sub19000-38122

main19000-38122i20R..RB11197911-198008

main19000-44210i5R..RB10197708-197911

main19000-57010i2B..BB10..BC¥796,000197708-197911

24V

sub19000-57011¥964,000

sub12311-56010¥5,900

sub19850-56012¥3,960

main19000-57020i2B..BB10..DLX,STD197708-197911

12V

sub19000-57011¥964,000

sub12311-56010¥5,900

sub19850-56022¥3,450

main19000-57060i2B..BB10..GEN197911-198003

sub19000-57061

sub12311-56010¥5,900

sub19850-56012¥3,960

main19000-57061i2B..BB10..GEN198003-198008

main19000-57070i2B..BB10..ARL197911-198003

sub19000-57071

sub12311-56010¥5,900

sub19850-56022¥3,450

main19000-57071i2B..BB10..ARL198003-198008

main19000-57090i2B..BB10..GEN,IRQ198008-198201

sub19000-57091

sub22177-56042

sub22811-56011¥940

sub90179-08161¥300

sub91611-41014¥160

main19000-57091i2B..BB10..GEN,IRQ198201-198204

main19000-57100i2B..BB10..ARL¥799,000198008-198201

sub19000-57101

sub22177-56042

sub22811-56011¥940

sub90179-08161¥300

sub91611-41014¥160

main19000-57101i2B..BB10..ARL198201-198204

sub19000-57091

1 parts on this diagram · 1 diagram in section
