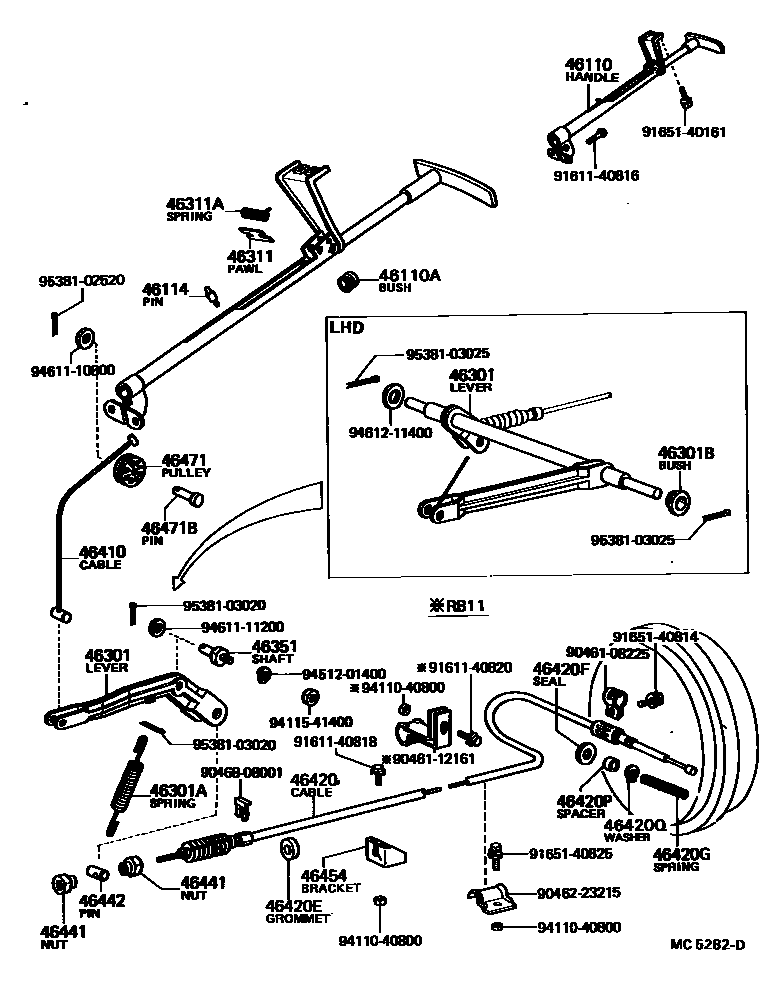

Toyota COASTER — PARKING BRAKE & CABLE

0001 1 0003 1 0004 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46104-36011iBB10,RB1#..RHD¥3,900197708-197905

main46104-36011iBB10,RB1#..RHD..GEN¥3,900197905-197911

main46104-36021iBB10,RB1#..LHD¥3,240197708-197911

main46104-36040iBB10,RB11..ARL197905-197911

main46104-36050iBB10,RB1#..RHD..GEN¥3,910197911-198204

main46104-36060iBB10,RB11..LHD197911-198002

main46104-36061iBB10,RB1#..LHD¥4,170198002-198204

main46104-36070iBB10,RB1#..ARL197911-198204

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iBB10,RB11..ARL¥230197905-197911

main90386-12048iBB10,RB1#¥230197911-198204

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iBB10,RB11..ARL¥160197905-197911

main46114-20010iBB10,RB1#¥160197911-198204

main46114-30020iBB10,RB1#¥240197708-197905

main46114-30020iBB10,RB11..GEN¥240197905-197911

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36021iBB10,RB1#..RHD197708-198204

main46307-36042iBB10,RB1#..LHD197708-198204

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-18055iBB10,RB1#¥220197708-198204

46301BBUSH(FOR INTERMEDIATE LEVER)

main90389-14010iBB10,RB1#..LHD197708-198204

46311PAWL, PARKING BRAKE

main46311-30030iBB10,RB1#¥250197708-197905

main46311-30030iBB10,RB11,13..GEN,IRQ¥250197905-198204

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-07040iBB10,RB11,13..GEN,IRQ¥220197905-198204

main90508-07040iBB10,RB1#¥220197708-197905

46351SHAFT, INTERMEDIATE LEVER PIVOT

main46351-36010iBB10,RB1#..RHD197708-198204

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36080iBB10,RB1#¥2,000197708-198204

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-36130iBB10,RB11,13..5F,5H¥5,300197708-198204

main46420-36140iRB1#..4F,4H¥5,900197708-198204

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-30207iBB10,RB11..5H¥240197708-197911

main90480-30207iBB10¥240197911-198204

main90480-30211iRB11..4H¥170197708-197911

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBB10,RB1#¥120197708-198204

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14021iBB10,RB1#¥180197708-198204

46420PSPACER, PARKING BRAKE

main90560-08002iBB10,RB1#¥180197708-198204

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBB10,RB1#¥200197708-198204

46441NUT, WIRE ADJUSTING, NO.1

main46441-36020iBB10,RB1#¥780197708-198204

46442PIN, WIRE PIVOT

main46442-35010iBB10,RB1#¥250197708-198204

46454BRACKET, CABLE RETAINER, FRONT

main46454-36020iBB10,RB1#197708-198204

46471PULLEY, WIRE

main46471-20010iBB10,RB1#¥720197708-198204

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iBB10,RB1#¥200197708-198204

9046108255

main90461-08255¥250

9046112161

main90461-12161

9046223215

main90462-23215¥350

9046808001

main90468-08001¥210

9161140816

main91611-40816¥140

9161140818

main91611-40818¥130

9161140820

main91611-40820¥130

9165140161

main91651-40161

9165140814

main91651-40814¥180

9165140825

main91651-40825¥200

9411040800

main94110-40800¥120

9411541400

main94115-41400¥160

9451201400

main94512-01400¥100

9461110800

main94611-10800¥80

9461111200

main94611-11200¥160

9461211400

main94612-11400¥160

9538102520

main95381-02520¥130

9538103020

main95381-03020¥90

9538103025

main95381-03025¥130

40 parts on this diagram · 3 diagrams in section
