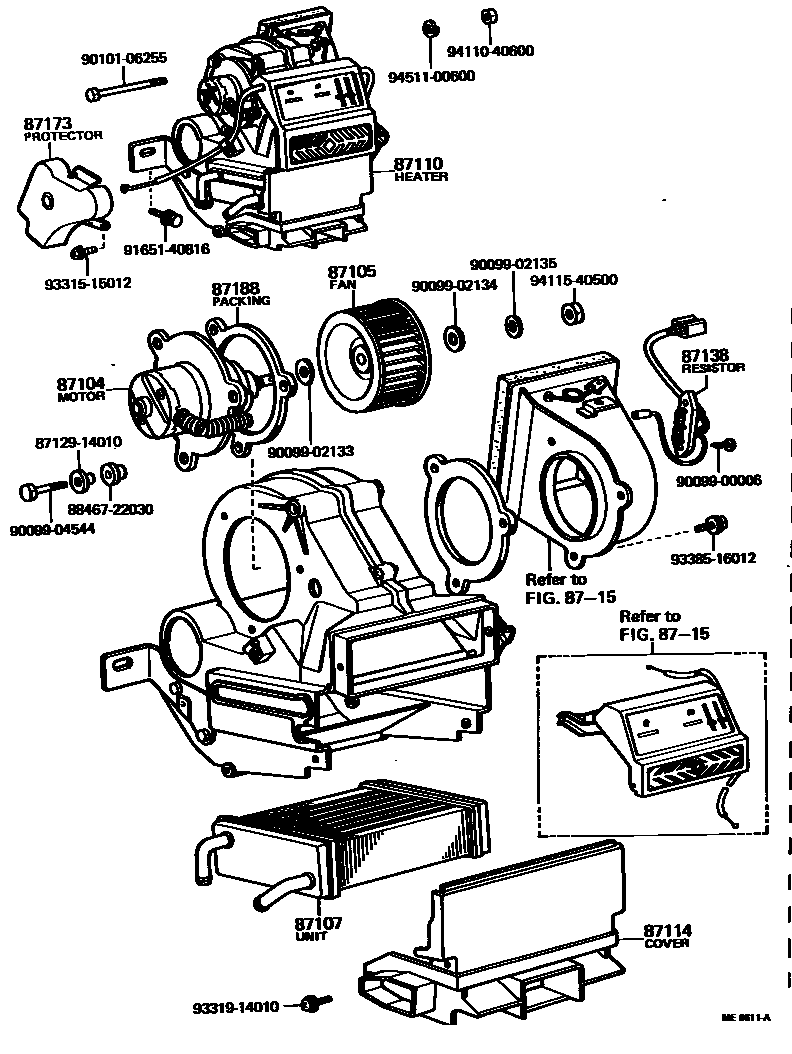

Toyota COASTER — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-36150iRB11,13;BB10,RB10..DLX,STD197708-198204

12V

main87104-36160iBB10..21S,22S,25S,26S197708-198204

24V

87105FAN SUB-ASSY, HEATER BLOWER

main87105-22010iBB10,RB1#..LHD197708-198204

main87105-22020iBB10,RB1#..RHD197708-198204

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-36081iBB10,RB1#197708-198204

87110HEATER ASSY

main87110-36230iRB1#..RHD197708-198204

12V

main87110-36240iBB10..RHD..GEN197708-198204

24V

main87110-36250iBB10..LHD..(DLX,STD)197708-198204

12V

main87110-36260iBB10..LHD197708-198204

24V

87114COVER, HEATER

main87114-14010iBB10,RB10,11197708-198204

87138RESISTOR, HEATER BLOWER

main87138-36070iBB10..RHD..(DLX,STD)197708-198204

12V

main87138-36080iBB10..RHD..(21S,22S,25S,26S)197708-198204

24V

main87138-36090iBB10..LHD..(DLX,STD)197708-198204

12V

main87138-36100iBB10..LHD197708-198204

24V

8715

87173PROTECTOR, WATER VALVE, HEATER

main87173-36020iBB10,RB1#197708-198204

87188PACKING, HEATER BLOWER MOTOR

main87128-22010iBB10,RB10,11197708-198204

8712914010

main87129-14010

8846722030CUSHION, COOLER CONDENSER, NO.1

main88467-22030

9009900006

main90099-00006

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009904544

main90099-04544

9010106255

main90101-06255¥300

9165140816

main91651-40816¥80

9331515012

main93315-15012¥80

9331914010

main93319-14010¥70

9338516012

main93385-16012¥70

9411040600

main94110-40600¥80

9411540500

main94115-40500¥110

9451100600

main94511-00600¥120

24 parts on this diagram · 2 diagrams in section
