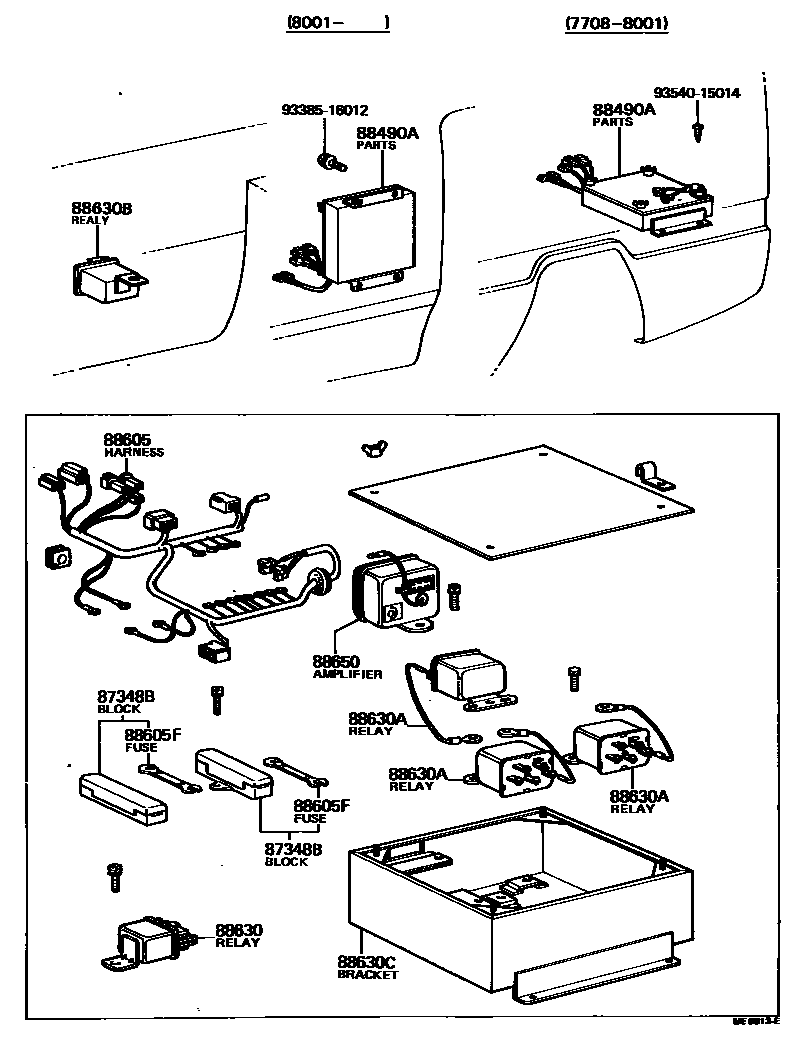

Toyota COASTER — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1

87348BBLOCK, FUSE

main87348-36020iBB10,RB11,13..BC197708-198204

88490APARTS ASSY, ELECTRICAL

main88490-36010iBB10..BC197708-197712

sub88490-36011

main88490-36011iBB10..BC197712-198001

main88490-36012iBB10..BC198001-198007

main88490-36013iBB10..BC198007-198204

main88490-36020iRB11..BC197708-197712

sub88490-36021

main88490-36021iRB11..BC197712-198001

main88490-36022iRB11..BC198001-198007

main88490-36023iRB1#..BC198007-198204

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-36090iBB10..BC197708-197712

sub88605-36091

main88605-36091iBB10..BC197712-198001

main88605-36092iBB10..BC198001-198007

main88605-36093iBB10..BC198007-198204

main88605-36100iRB11..BC197708-197712

sub88605-36101

main88605-36101iRB11..BC197712-198001

main88605-36102iRB11..BC198001-198007

main88605-36103iRB1#..BC198007-198204

88605FFUSE(FOR COOLER WIRING HARNESS)

main90099-53006iBB10,RB11,13..BC197708-198204

88630RELAY ASSY, COOLER

main28380-20010iRB11..BC¥4,460197708-197712

main88630-36100iBB10..BC197708-197712

sub85940-26010¥3,870

88630ARELAY ASSY, COOLER

main87346-36050iBB10..BC198007-198204

N0.1,N0.2,N0.3

main88630-36070iBB10..BC197902-198007

NO.2,NO.3

sub87346-90B01

main88630-36070iBB10..BC197708-197902

NO.1,NO.2,NO.3

sub87346-90B01

main88630-36080iRB11,13..BC197708-198204

main88630-36130iBB10..BC197902-198007

N0.1

88630BRELAY ASSY, COOLER

main85923-40010iRB11,13..BC¥6,800197708-198204

FR INSTRUMENT

main87346-36050iBB10..BC198007-198204

main88630-36090iBB10..BC197708-198007

88630CBRACKET, COOLER RELAY

main88631-36030iBB10,RB11..BC197708-198001

main88631-36031iBB10,RB1#..BC198001-198204

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-36070iBB10..BC197708-198204

main88650-36080iRB11,13..BC197708-198204

9338516012

main93385-16012¥70

9354015014

main93540-15014¥110

11 parts on this diagram · 4 diagrams in section
