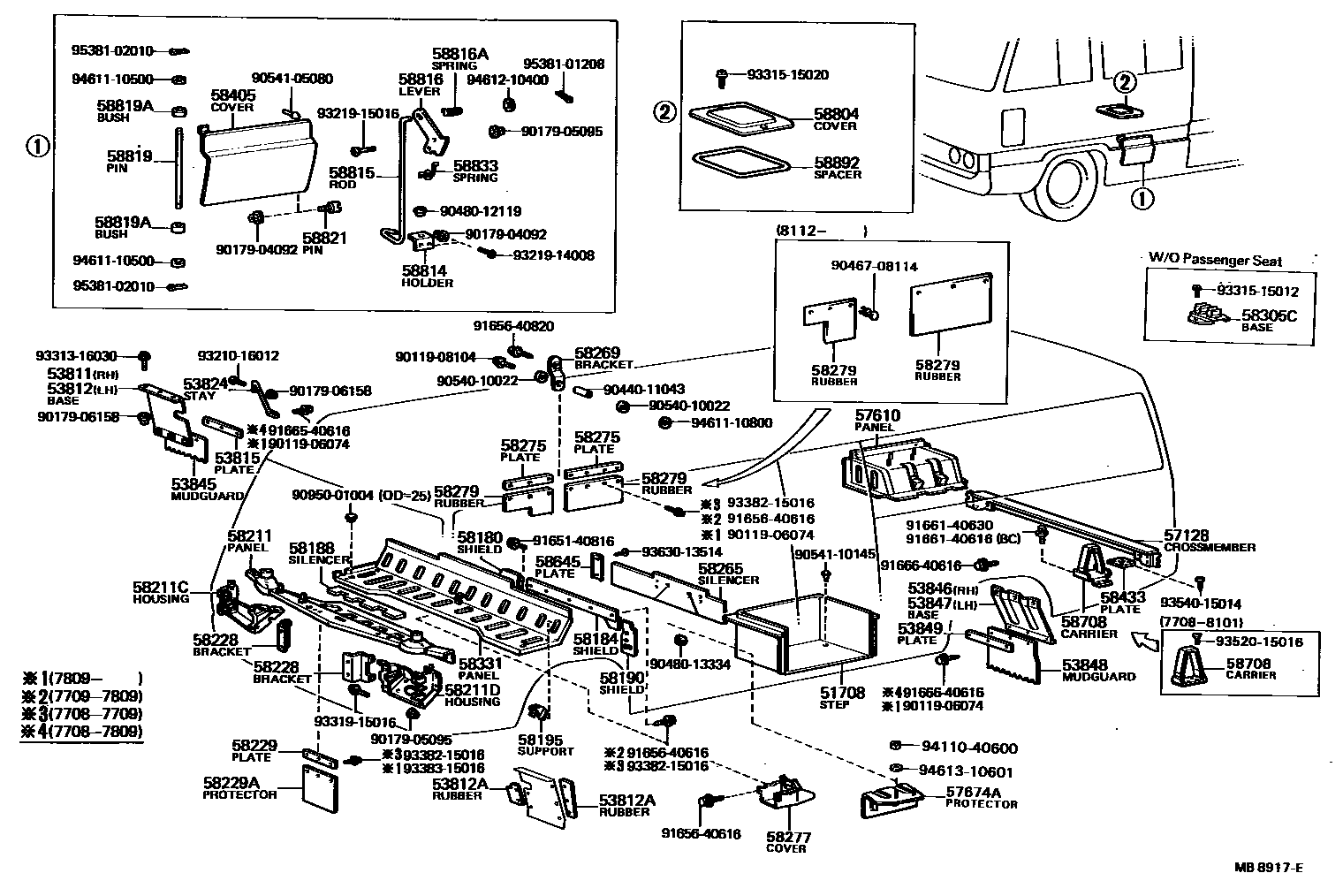

Toyota COASTER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51708STEP SUB-ASSY, LH
53811BASE, MUDGUARD RUBBER, FRONT RH
53812BASE, MUDGUARD RUBBER, FRONT LH
53812ARUBBER, MUDGUARD SIDE
LH
RH
53815PLATE, MUDGUARD RUBBER SET, FRONT
53824STAY, MUDGUARD RUBBER, FRONT
RH
LH
53845MUDGUARD, FENDER, FRONT
RH
LH
LH
53846BASE, MUDGUARD RUBBER, REAR RH
53847BASE, MUDGUARD RUBBER, REAR LH
53848MUDGUARD, FENDER, REAR
RH
LH
LH
RH
LH
53849PLATE, MUDGUARD RUBBER SET, REAR
57128CROSSMEMBER, FLOOR, REAR
57610PANEL SUB-ASSY,CONDENSER COVER
57674APROTECTOR, WIRING HARNESS
58180SHIELD ASSY, ENGINE ROOM, RH
58184SHIELD, ENGINE ROOM, CENTER
58188SILENCER, DASH PANEL CENTER
58195SUPPORT, EXTINGUISHER
W/EXTINGUISHER
W/EXTINGUISHER
58211PANEL, FRONT FLOOR
58211CHOUSING SUB-ASSY, HEADLAMP, RH
58211DHOUSING SUB-ASSY, HEADLAMP, LH
58228BRACKET, HEADLAMP DOOR, CENTER
RH
58229PLATE, ACCELERATOR
58229APROTECTOR, ACCELERATOR LINK
58265SILENCER, ENGINE END PANEL
58269BRACKET, ENGINE ROOM SIDE PANEL
58275DUST SEAL SET PLATE, ENGINE ROOM SIDE PANEL
RR
FR
58277COVER, TRANSMISSION INSPECTION HOLE
58279DUST SEAL RUBBER, ENGINE ROOM SIDE PANEL
RR
FR
58305CBASE SUB-ASSY,JACK HANDLE CLAMP
58331PANEL, FRONT FLOOR, CENTER FRONT
58405COVER SUB-ASSY, AIR CLEANER SERVICE HOLE
58433PLATE, REAR FLOOR HARNESS
58645PLATE, ENGINE END PANEL SILENCER SET
58708CARRIER SUB-ASSY, JACK
58804COVER, FUEL TANK INSPECTION HOLE
58814HOLDER, AIR CLEANER SERVICE HOLE COVER LOCK
58815ROD, AIR CLEANER SERVICE HOLE COVER LOCK
58816LEVER, AIR CLEANER SERVICE HOLE COVER LOCK
58816ASPRING(FOR AIR CLEANER SERVICE HOLE COVER LOCK LEVER)
58819PIN, AIR CLEANER SERVICE HOLE COVER HINGE
58819ABUSH, AIR CLEANER SERVICE HOLE COVER LOCK PIN
58821PIN, AIR CLEANER SERVICE HOLE COVER LOCK
58833SPRING, TORSION(FOR AIR CLEANER SERVICE HOLE COVER)
58892SPACER, FUEL TANK INSPECTION HOLE
9011906074
9011908104
main90119-08104
9017904092
9017905095
9017906158
9044011043
9046708114
9048012119
9048013334
main90480-13334
9054010022
9054105080
9054110145
9095001004
9165140816
9165640616
9165640820
9166140616
9166140630
9166540616
9166640616
9321016012
9321914008
9321915016
9331316030
main93313-16030
9331515012
9331515020
9331915016
9338215016
9338315016
9352015016
9354015014
9363013514
9411040600
9461110500
9461110800
9461210400
9461310601
9538101208
9538102010
85 parts on this diagram · 3 diagrams in section
