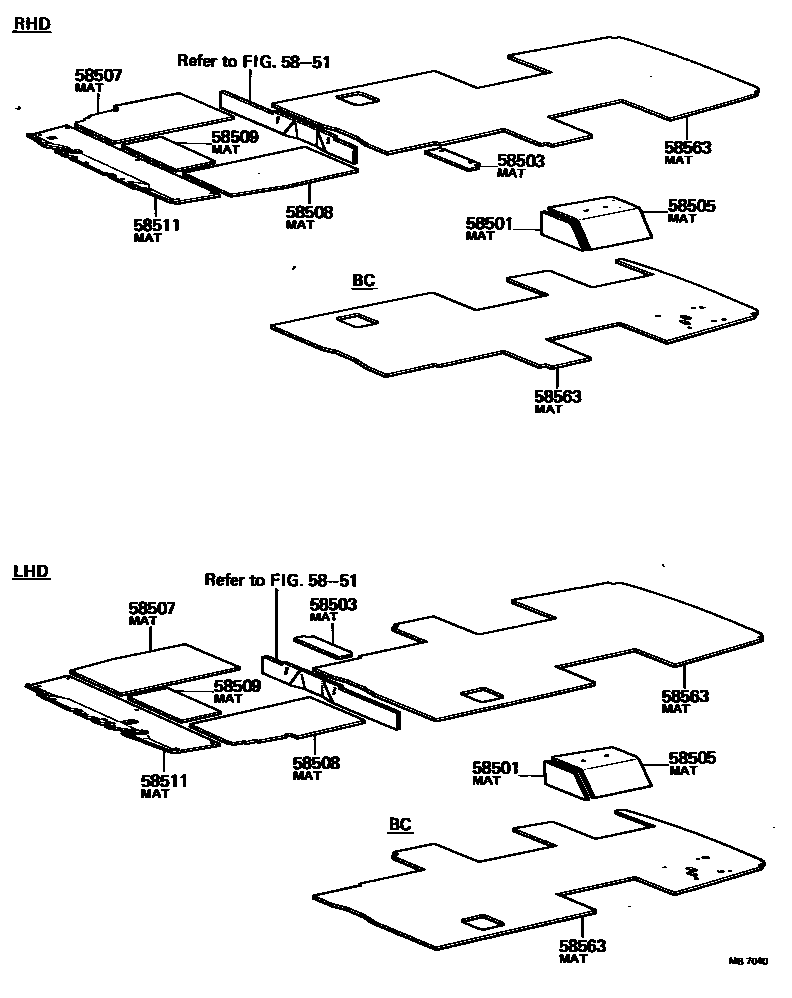

Toyota COASTER — FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58501MAT, CONDENSER COVER, FRONT

main58534-90740iBB10,RB11..BC197708-197911

main58534-90743iBB10,RB1#..BC197911-198204

58503MAT ASSY, BATTERY SERVICE HOLE COVER

main58529-90740iBB10,RB11..RHD..(25S,26S)197708-197911

main58529-90741iBB10,RB11..RHD..(21S,22S,23S)197708-197911

main58529-90742iBB10,RB11..LHD..(25S,26S)197708-197911

main58529-90743iBB10,RB11..LHD..(21S,22S)197708-197911

main58529-90744iBB10,RB1#..RHD..(25S,26S)197911-198204

main58529-90745iBB10,RB1#..LHD..(25S,26S)197911-198204

main58529-90746iBB10,RB1#..RHD..(21S,22S,23S)197911-198204

main58529-90747iBB10,RB1#..LHD..(21S,22S)197911-198204

58505MAT, CONDENSER COVER, CENTER

main58538-90741iRB11..BC..ARL197708-197911

main58538-90742iBB10..BC;RB11..BC..GEN197708-197911

main58538-90743iBB10,RB1#..BC..(GEN,IRQ)197911-198204

main58538-90744iBB10,RB1#..BC..ARL197911-198204

58507MAT SUB-ASSY, ENGINE UPPER FLOOR, RH

main58517-90740iBB10,RB1#..RHD197708-197911

main58517-90742iBB10,RB1#..LHD197708-197911

main58517-90743iBB10,RB1#..RHD197911-198204

main58517-90744iBB10,RB1#..LHD197911-198204

58508MAT SUB-ASSY, ENGINE UPPER FLOOR, LH

main58518-90740iBB10,RB1#..RHD197708-197911

main58518-90742iBB10,RB1#..LHD197708-197911

main58518-90744iBB10,RB1#..RHD197911-198204

main58518-90745iBB10,RB1#..LHD197911-198204

58509MAT SUB-ASSY, ENGINE UPPER FLOOR, CENTER

main58519-90740iBB10,RB1#197708-197911

main58519-90742iBB10,RB1#197911-198204

5851

58511MAT, FLOOR, FRONT

main58501-90740iBB10,RB1#..RHD197708-197911

main58501-90742iBB10,RB1#..LHD197708-197911

main58501-90743iBB10,RB1#..RHD197911-198204

main58501-90744iBB10,RB1#..LHD197911-198204

58563MAT, REAR FLOOR

main58516-90740iBB10,RB1#..RHD..(DLX,STD)197708-197804

main58516-90741iBB10,RB11..RHD..BC197708-197804

main58516-90743iBB10,RB1#..LHD..(DLX,STD)197708-197804

main58516-90744iBB10,RB11..LHD..BC197708-197804

main58516-90745iBB10,RB1#..RHD..(DLX,STD)197804-197911

main58516-90746iBB10,RB11..RHD..BC197804-197911

main58516-90747iBB10,RB1#..LHD..(DLX,STD)197804-197911

main58516-90748iBB10,RB11..LHD..BC197804-197911

main58516-90749iBB10,RB1#..RHD..(DLX,STD)197911-198204

main58516-90750iBB10,RB1#..LHD..(DLX,STD)197911-198204

main58516-90751iBB10,RB1#..RHD..BC197911-198204

main58516-90752iBB10,RB1#..LHD..BC197911-198204

9 parts on this diagram · 3 diagrams in section
