Toyota COASTER — ENGINE OVERHAUL GASKET KIT

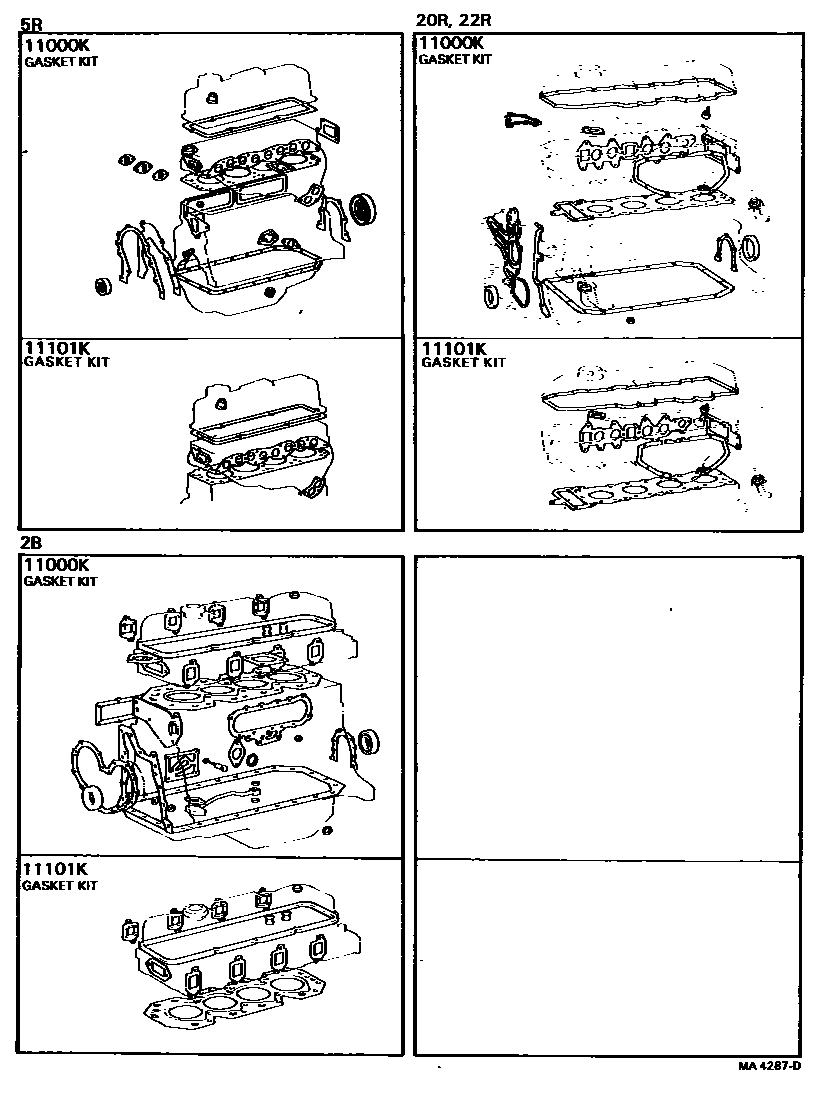

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-35021i¥26,000198008-198204

sub04111-35022¥25,600

main04111-38020i¥24,300197708-197711

sub04111-38021¥27,600

main04111-38021i¥27,600197711-197808

sub04111-38023¥33,000

main04111-38022i¥24,700197808-197901

sub04111-38024¥28,200

main04111-38024i¥28,200197901-198008

sub04111-38028¥28,600

main04111-44034i¥20,200197708-197805

sub04111-44037¥20,300

main04111-44035i¥24,700197805-197911

sub04111-44038¥23,500

main04111-56012i¥31,400197708-197806

sub04111-56013¥39,800

main04111-56013i¥39,800197806-197911

sub04111-56014¥34,600

main04111-56014i¥34,600197911-198008

sub04111-56015¥39,600

main04111-56030i¥51,400198008-198105

sub04111-56031¥51,400

main04111-56031i¥51,400198105-198204

sub04111-56032¥51,100

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-35011i¥16,200198008-198204

sub04112-35012¥16,100

main04112-38012i¥13,500197708-197808

sub04112-38016¥18,200

main04112-38020i¥14,500197808-197901

sub04112-38021¥15,200

main04112-38021i¥15,200197901-198008

sub04112-38041¥16,500

main04112-44022i¥8,500197708-197805

sub04112-44025¥8,500

main04112-44023i¥13,600197805-197911

sub04112-44026¥12,900

main04112-56012i¥12,900197708-197806

sub04112-56013¥14,600

main04112-56013i¥14,600197806-198008

sub04112-56014¥13,200

main04112-56020i¥25,600198008-198204

sub04112-56021¥25,500

2 parts on this diagram · 1 diagram in section
