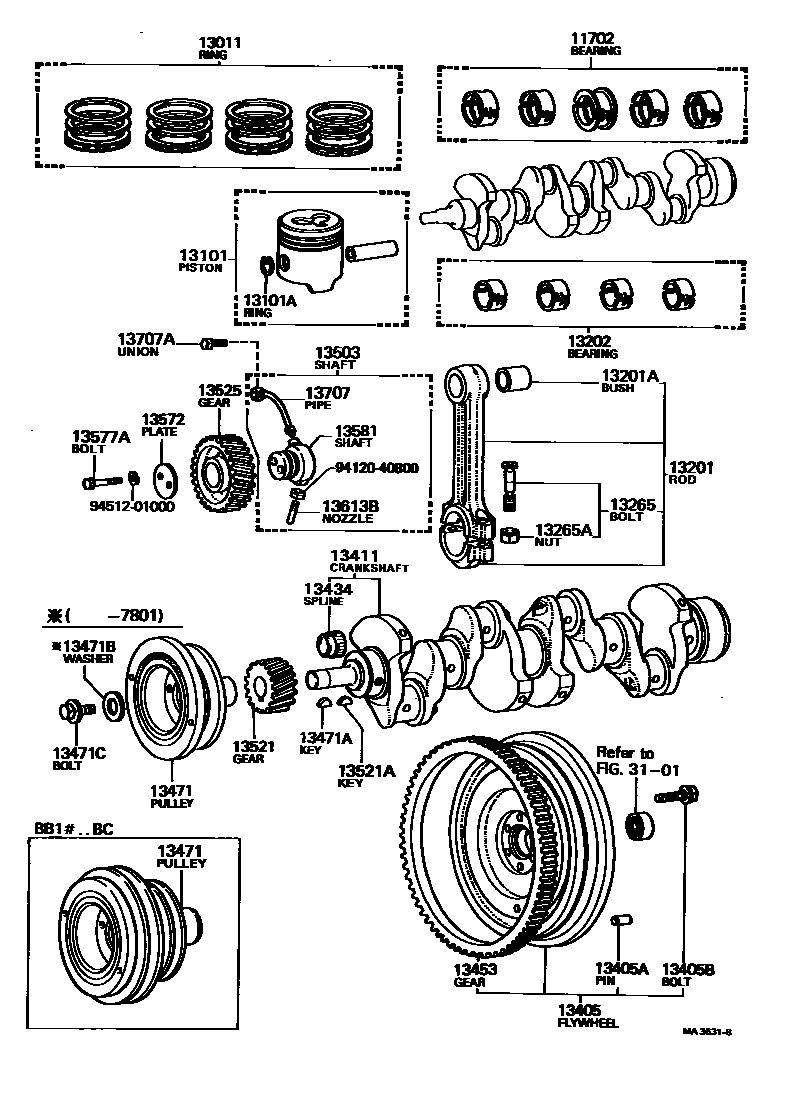

Toyota COASTER — CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
STD,STD
STD,STD
STD
STD,STD
U/S 0.05
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50
U/S 0.50,U/S 0.50
U/S 1.00,U/S 1.00
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 1.00
O/S 1.00
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
O/S 0.50
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD
U/S 0.25
U/S 0.50
U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
N=115
N=110
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
L=22,OD=10,L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
*10-1.25PX26-18
*12-1.25PX32-22
*13-1.5PX32-22
*11-1.25PX26-18
13411CRANKSHAFT
13434SPLINE, OIL PUMP DRIVE
N=42
13453GEAR, FLYWHEEL RING
N=115
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13503SHAFT SUB-ASSY, IDLE GEAR
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=18
N=18
N=22
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
N=35
13572PLATE, IDLE GEAR THRUST
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13581SHAFT, IDLE GEAR, NO.1
13613BNOZZLE, TIMING GEAR OIL
13707PIPE SUB-ASSY, OIL, NO.1
13707AUNION(FOR OIL PIPE, NO.1)
3101
9412040800
9451201000
32 parts on this diagram · 4 diagrams in section
